ICHINOMIYA Architectural Spotlight
An architectural spotlight family with model-specific body dimensions and optical options. Choose the model and wattage first, then select the light colour and available beam angle.

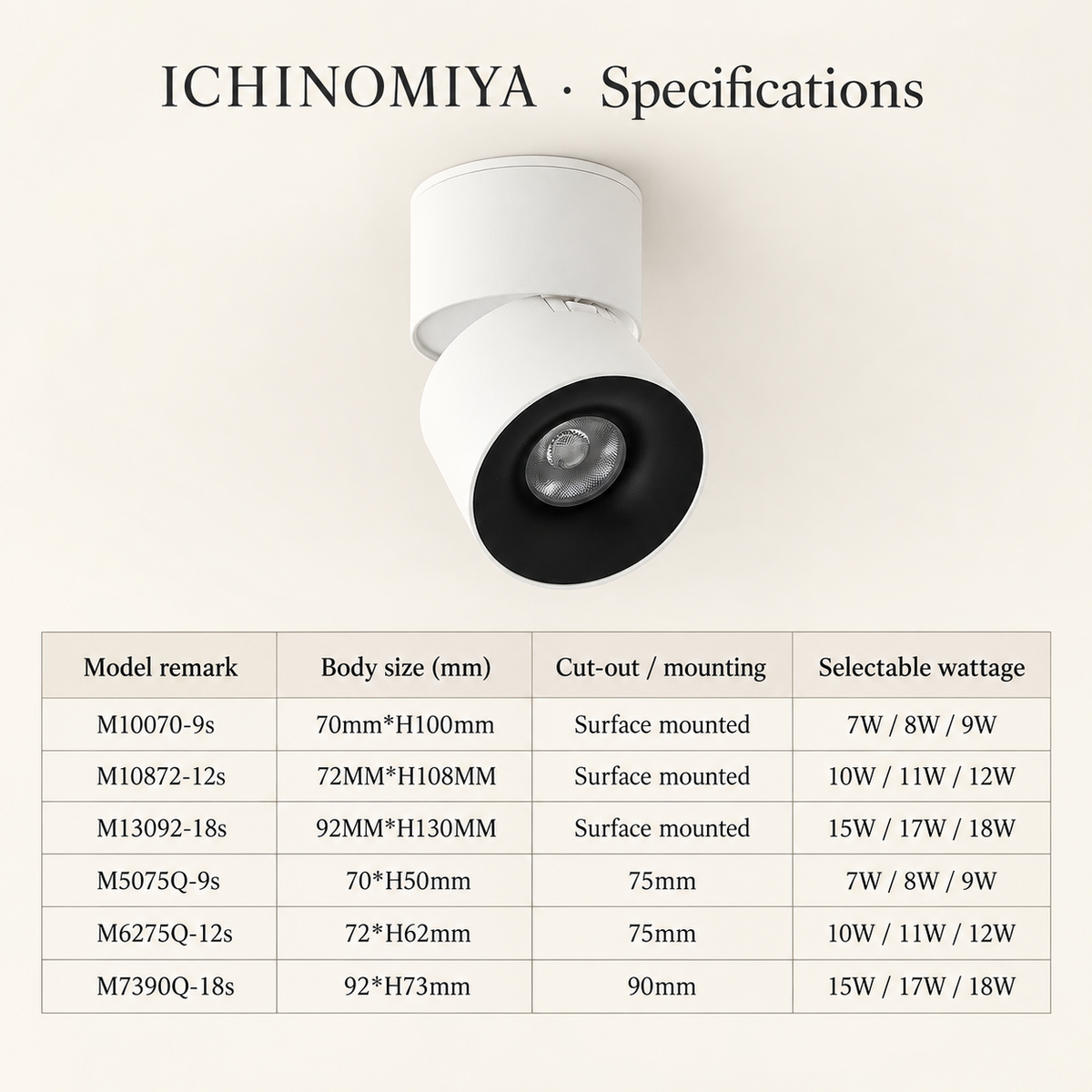

Models and dimensions
| Model remark | Body size (mm) | Cut-out / mounting | Wattage |
|---|---|---|---|
| M10070-9s | 70mm*H100mm | Surface mounted | 7W / 8W / 9W |
| M10872-12s | 72MM*H108MM | Surface mounted | 10W / 11W / 12W |
| M13092-18s | 92MM*H130MM | Surface mounted | 15W / 17W / 18W |
| M5075Q-9s | 70*H50mm | 75mm | 7W / 8W / 9W |
| M6275Q-12s | 72*H62mm | 75mm | 10W / 11W / 12W |
| M7390Q-18s | 92*H73mm | 90mm | 15W / 17W / 18W |
For multi-head versions, wattage is shown per head with the total fitting wattage in brackets. Model suffixes identify the exact version.
Plan the lighting

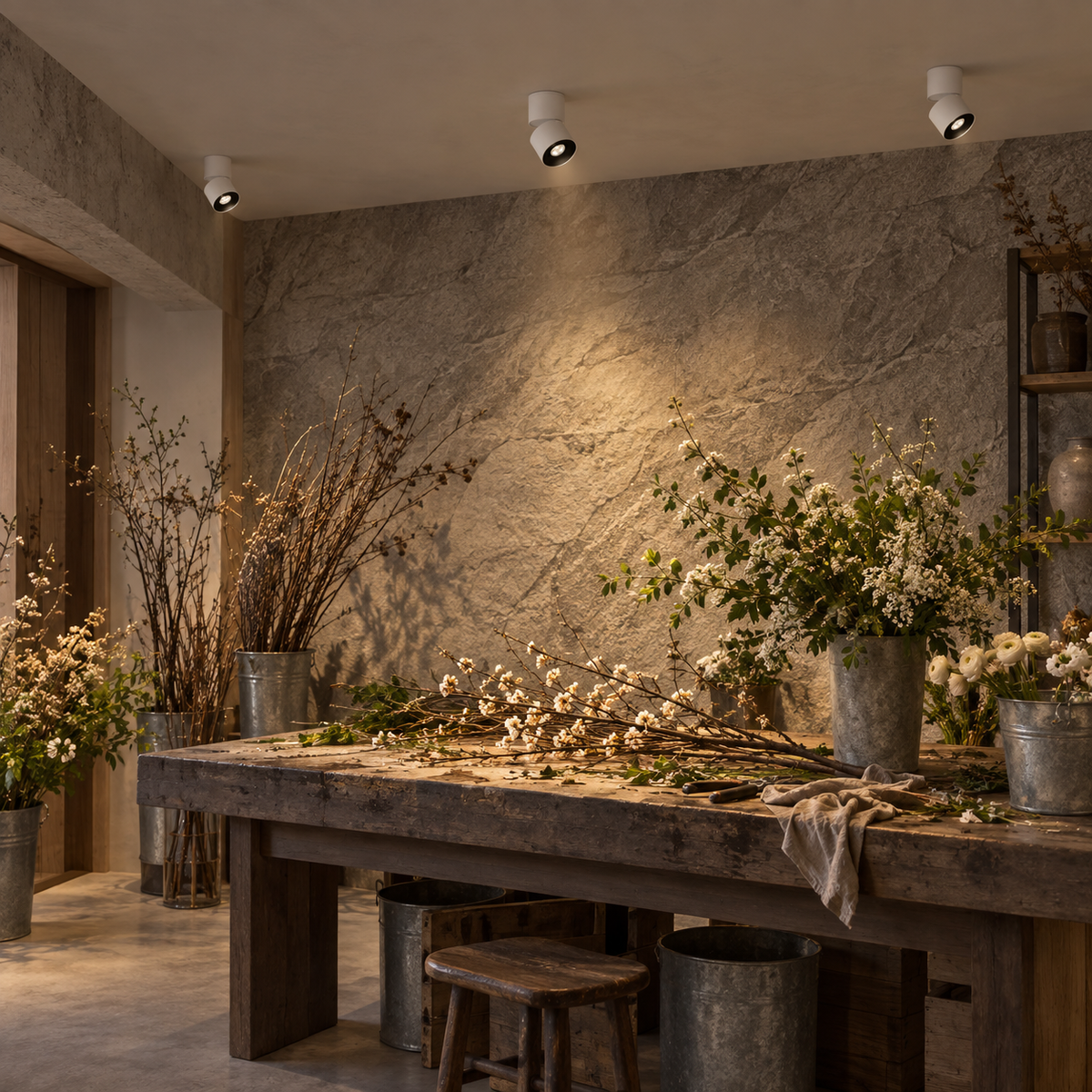

Choose a narrower beam to highlight a selected object, or a wider available beam for broader coverage. Position and spacing should suit the ceiling height and the surface being lit. Scene images illustrate a possible layout.
Installation
Check the selected model dimensions and mounting method before ordering. Recessed models need space above the ceiling for their housing and electrical connections. The available options and price refer to the selected model.
Lead time: 15 days.
Shipping & Returns
Shipping & Returns
Please refer to this product’s description for lead time and availability. Contact us if you need a specific delivery date.
We do not accept change-of-mind or incorrect-selection returns. Please report damaged, defective or incorrect items within 14 days of delivery; statutory rights remain unaffected.
Contact: info@koyama.store | WhatsApp +65 8965 2378.
Read our full Returns & Exchanges policy
Dimensions
Dimensions
Dimensions vary by model and selected option. Refer to the model specifications and dimension drawings in this product’s description and images, matching them to your selected option. Body size and ceiling cut-out are different measurements. Confirm fitting dimensions, mounting method and installation clearance with your installer before installation. If a required measurement is missing, contact KOYAMA before ordering or cutting the ceiling.
Care Instructions
Care Instructions
Switch off the power and allow the fitting to cool before cleaning. Gently remove dust with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents, spray liquids onto the fitting, or allow moisture into electrical components. Do not dismantle drivers, controls or sealed parts. Follow the product’s installation instructions; electrical servicing should be carried out by a qualified installer.
