KOYAMA Surface LED Downlight | Round & Square
KOYAMA Surface LED Downlight | Round & Square
Couldn't load pickup availability
照明 · KOYAMA

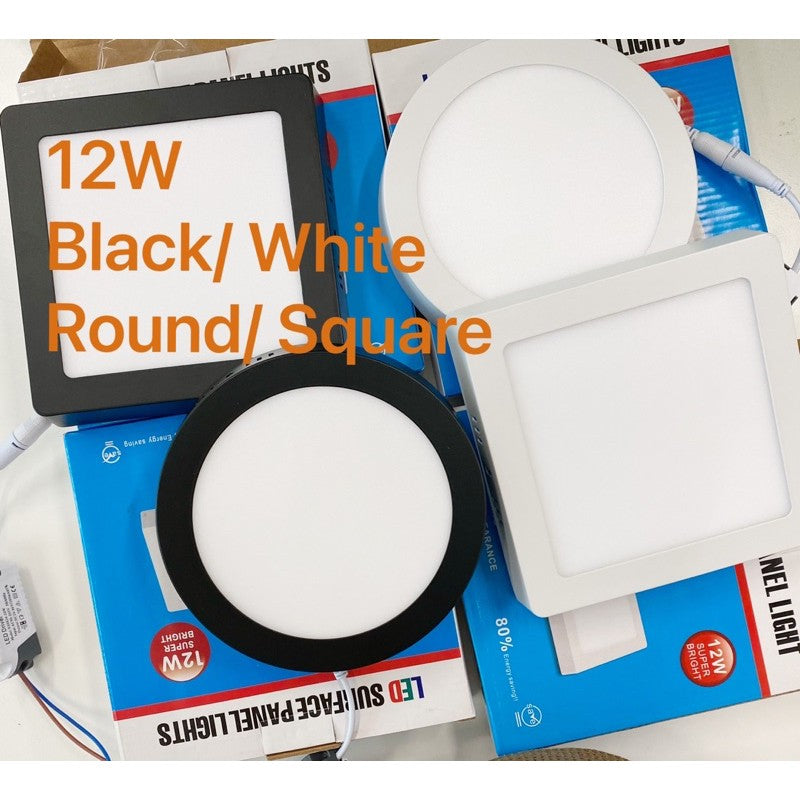

LED SURFACE SLIM DOWNLIGHT (BLACK/ WHITE, ROUND/SQUARE)(1 YEAR WARRANTY)

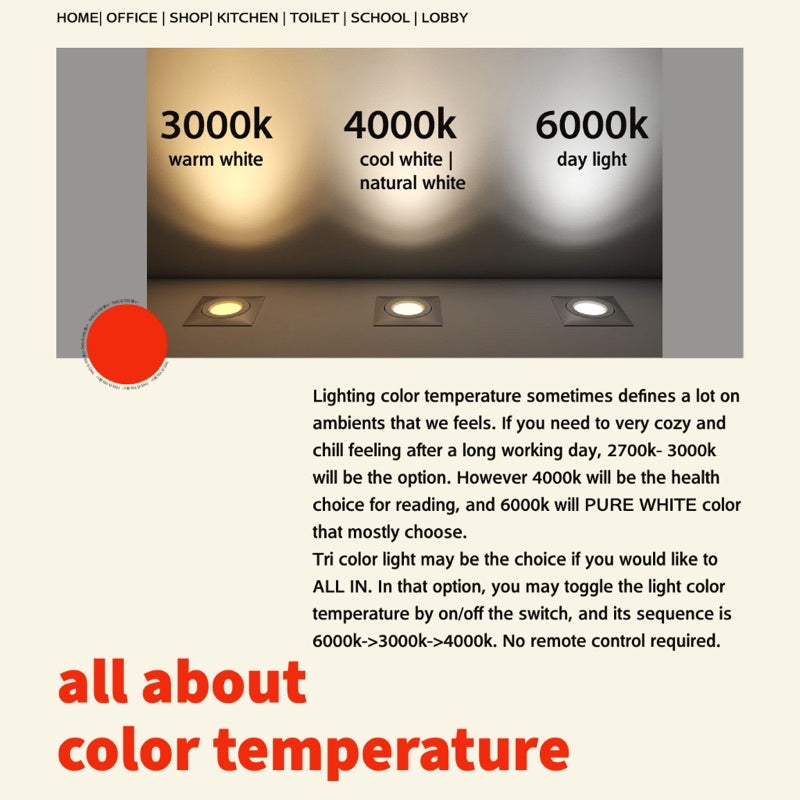

Available color: warm white (3000k) , natural white ( cool white 4000k), White ( day light 6000k)
NOTE: In order to proceed exchange which product still under warranty, please bring back the faulty parts back to our office, no mailing or on site collection was allow. Thank you for your cooperation.
***ROUNDED TYPE SPEC***
Wattage: 6W
Outer size: diameter 120mm
Thickness(Height): 32mm
White/ Black coated.
Power: 85-265V/AC
lumen: 450lm
--------------------------------
Wattage: 12W
Outer size: diameter 170mm
Thickness(Height): 32mm
White/ Black coated.
Power: 85-265V/AC
lumen: 900lm
--------------------------------
Wattage: 18W
Outer size: diameter 225mm
Thickness(Height): 32mm
White/ Black coated.
Power: 85-265V/AC
lumen: 1300lm
--------------------------------
Wattage: 24W
Outer size: diameter 300mm
Thickness(Height): 32mm
White/ Black coated.
Power: 85-265V/AC
lumen: 1800lm
--------------------------------
****SQAURE TYPE SPEC*****
Wattage: 6W
Outer size: 120*120mm
Thickness(Height): 32mm
White/ Black coated.
Power: 85-265V/AC
lumen: 450lm
--------------------------------
Wattage: 12W
Outer size: 170*170mm
Thickness(Height): 32mm
White/ Black coated.
Power: 85-265V/AC
lumen: 900lm
--------------------------------
Wattage: 18W
Outer size: 225*225mm
Thickness(Height): 32mm
White/ Black coated.
Power: 85-265V/AC
lumen: 1300lm
--------------------------------
Wattage: 24W
Outer size: 300*300mm
Thickness(Height): 32mm
White/ Black coated.
Power: 85-265V/AC
lumen: 1800lm
Shipping & Returns
Shipping & Returns
Please refer to this product’s description for lead time and availability. Contact us if you need a specific delivery date.
We do not accept change-of-mind or incorrect-selection returns. Please report damaged, defective or incorrect items within 14 days of delivery; statutory rights remain unaffected.
Contact: info@koyama.store | WhatsApp +65 8965 2378.
Read our full Returns & Exchanges policy
Dimensions
Dimensions
Dimensions vary by model and selected option. Refer to the model specifications and dimension drawings in this product’s description and images, matching them to your selected option. Body size and ceiling cut-out are different measurements. Confirm fitting dimensions, mounting method and installation clearance with your installer before installation. If a required measurement is missing, contact KOYAMA before ordering or cutting the ceiling.
Care Instructions
Care Instructions
Switch off the power and allow the fitting to cool before cleaning. Gently remove dust with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents, spray liquids onto the fitting, or allow moisture into electrical components. Do not dismantle drivers, controls or sealed parts. Follow the product’s installation instructions; electrical servicing should be carried out by a qualified installer.
