HIROSAKI Recessed Downlight | Round, Square & Twin

HIROSAKI Recessed Downlight | Round, Square & Twin

$33.00 SGD
$33.00 SGD
Sale Sold out
Size & wattage
Finish
Light colour & beam

HIROSAKI Recessed Downlight | Round, Square & Twin

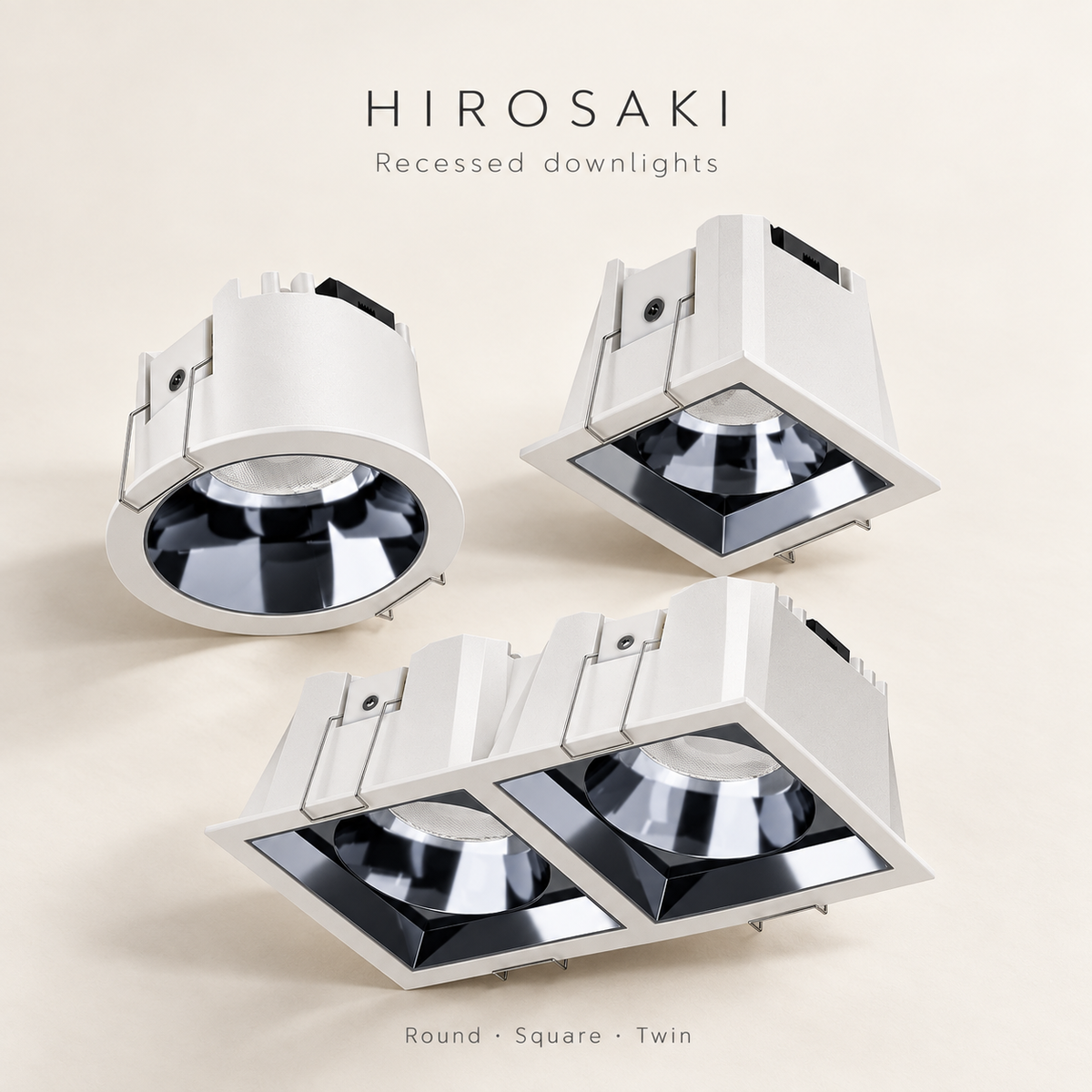

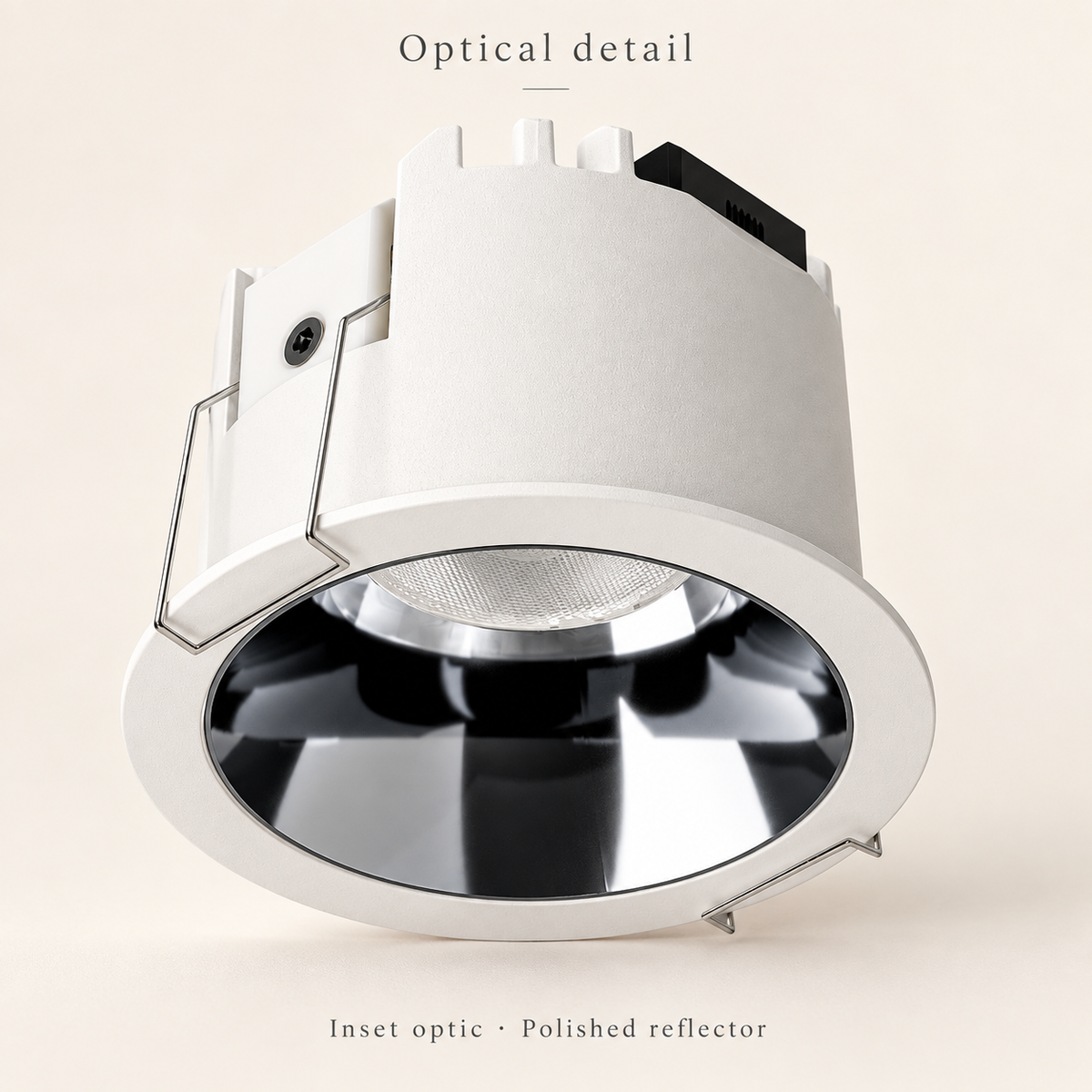

A recessed downlight family with round, square and twin-head frames. A polished reflector surrounds the inset optic, while the white or black trim defines a compact ceiling opening. Select the fitting shape and dimensions, then choose the wattage, finish, light colour and beam angle.

Choose your configuration

Select the body size and wattage, finish, then light colour and beam angle. Each wattage is a separate order option.

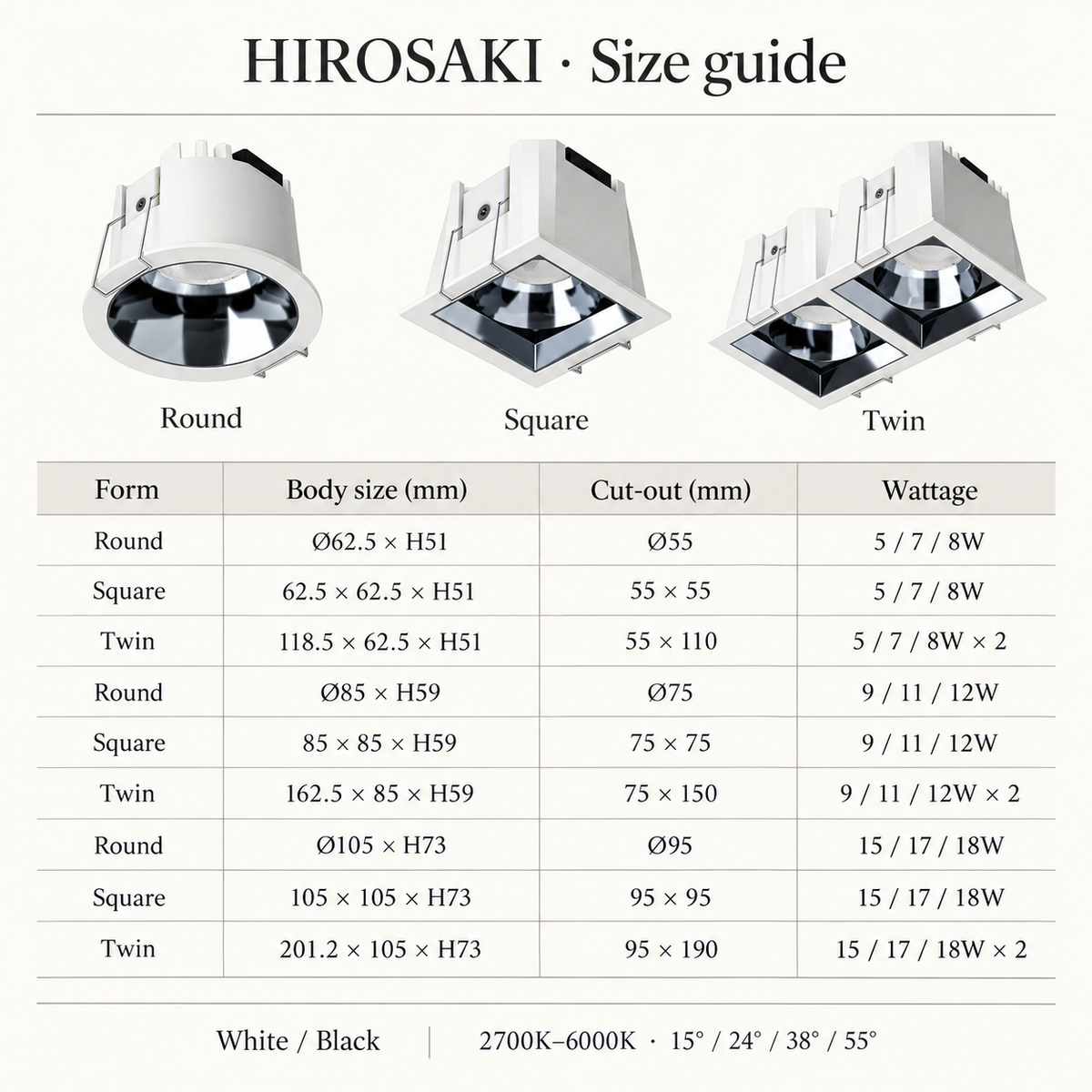

Model remark Body size Cut-out Selectable wattage
5155-8ts Round Ø62.5 × H51 mm Ø55 mm 5W / 7W / 8W
515555-8ts Square 62.5 × 62.5 × H51 mm 55 × 55 mm 5W / 7W / 8W
5111055-16ts Twin 118.5 × 62.5 × H51 mm 55 × 110 mm 5W × 2 (10W total) / 7W × 2 (14W total) / 8W × 2 (16W total)
5975-12ts Round Ø85 × H59 mm Ø75 mm 9W / 11W / 12W
597575-12ts Square 85 × 85 × H59 mm 75 × 75 mm 9W / 11W / 12W
5915075-24ts Twin 162.5 × 85 × H59 mm 75 × 150 mm 9W × 2 (18W total) / 11W × 2 (22W total) / 12W × 2 (24W total)
7395-18ts Round Ø105 × H73 mm Ø95 mm 15W / 17W / 18W
739595-18ts Square 105 × 105 × H73 mm 95 × 95 mm 15W / 17W / 18W
7319095-36ts Twin 201.2 × 105 × H73 mm 95 × 190 mm 15W × 2 (30W total) / 17W × 2 (34W total) / 18W × 2 (36W total)

For multi-head versions, wattage is shown per head and as the total fitting wattage. For example, 10W × 2 means 20W total.

Shape the lighting effect

Beam options: 15° / 24° / 38° / 55°. A narrower beam concentrates light on a selected area; a wider beam covers a broader surface. Select 3500K for a gently warm atmosphere or 4000K for a more neutral appearance. Light colour options range from 2700K to 6000K.

Installation planning

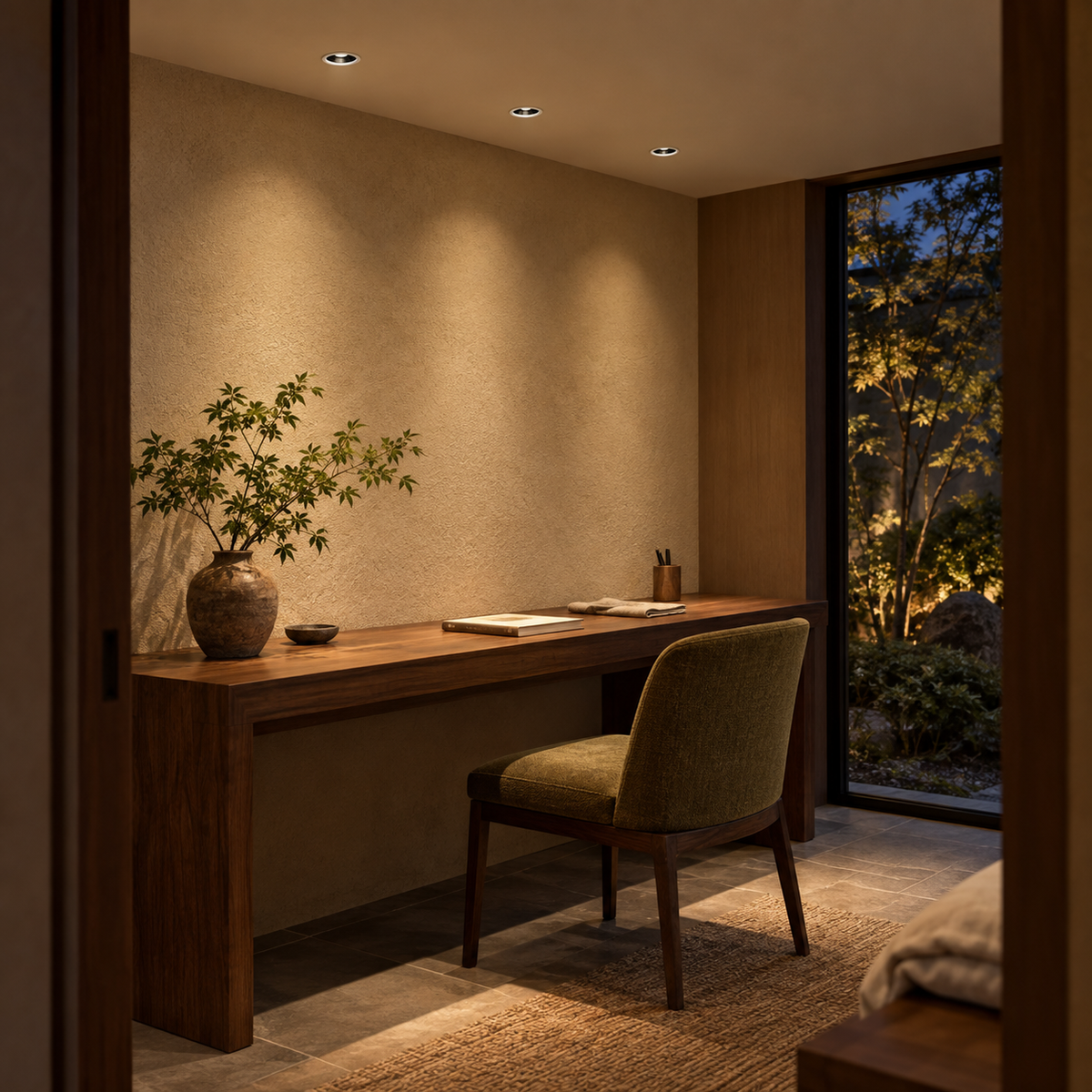

Match the ceiling opening to the listed cut-out and allow space above the ceiling for the rear housing and connection. Mounting clips and housing are concealed after installation. Scene images illustrate an example layout.

Lead time: 15 days.
