KOYAMA
ISESAKI Foldable Recessed Spotlight
ISESAKI Foldable Recessed Spotlight
Couldn't load pickup availability
ISESAKI Foldable Recessed Spotlight

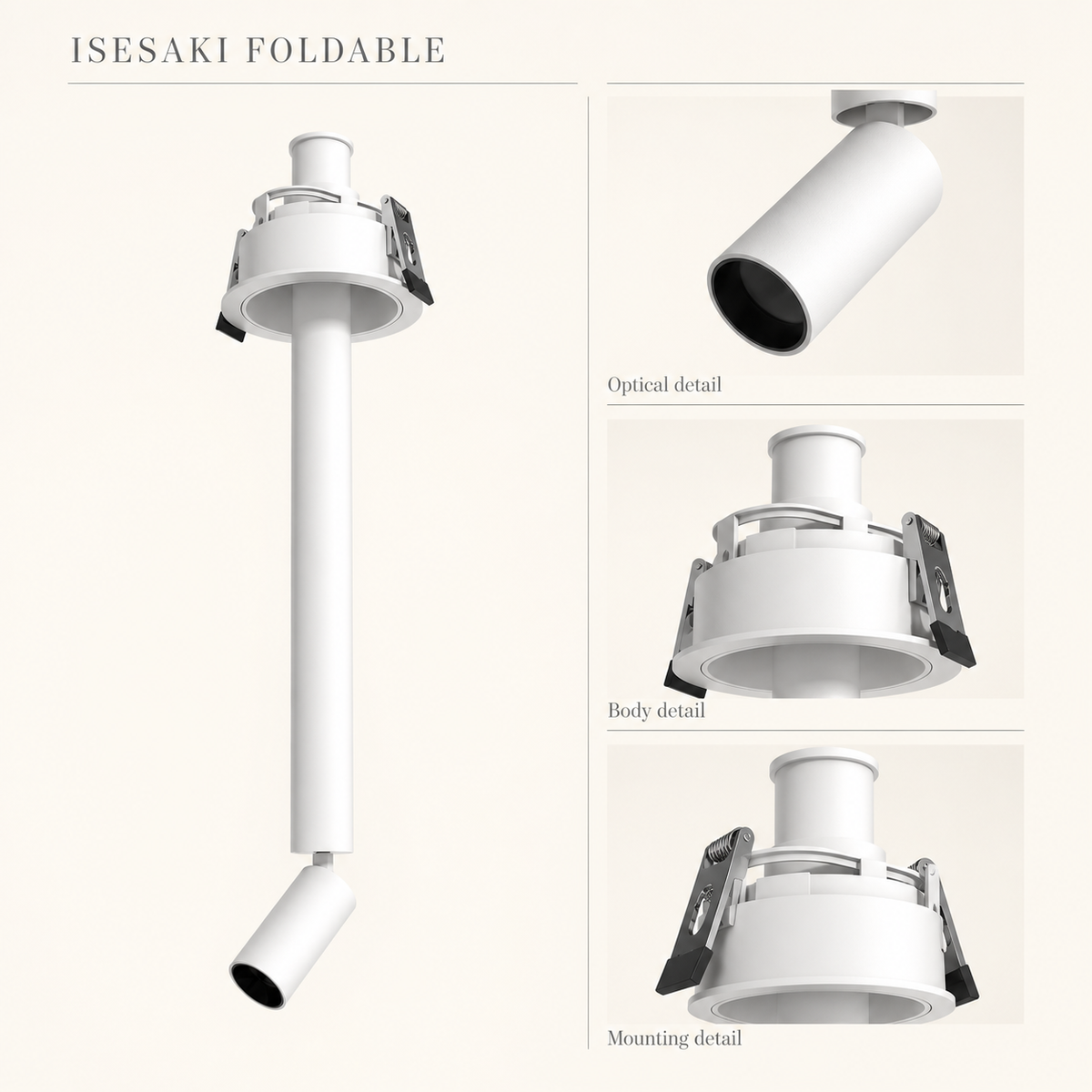

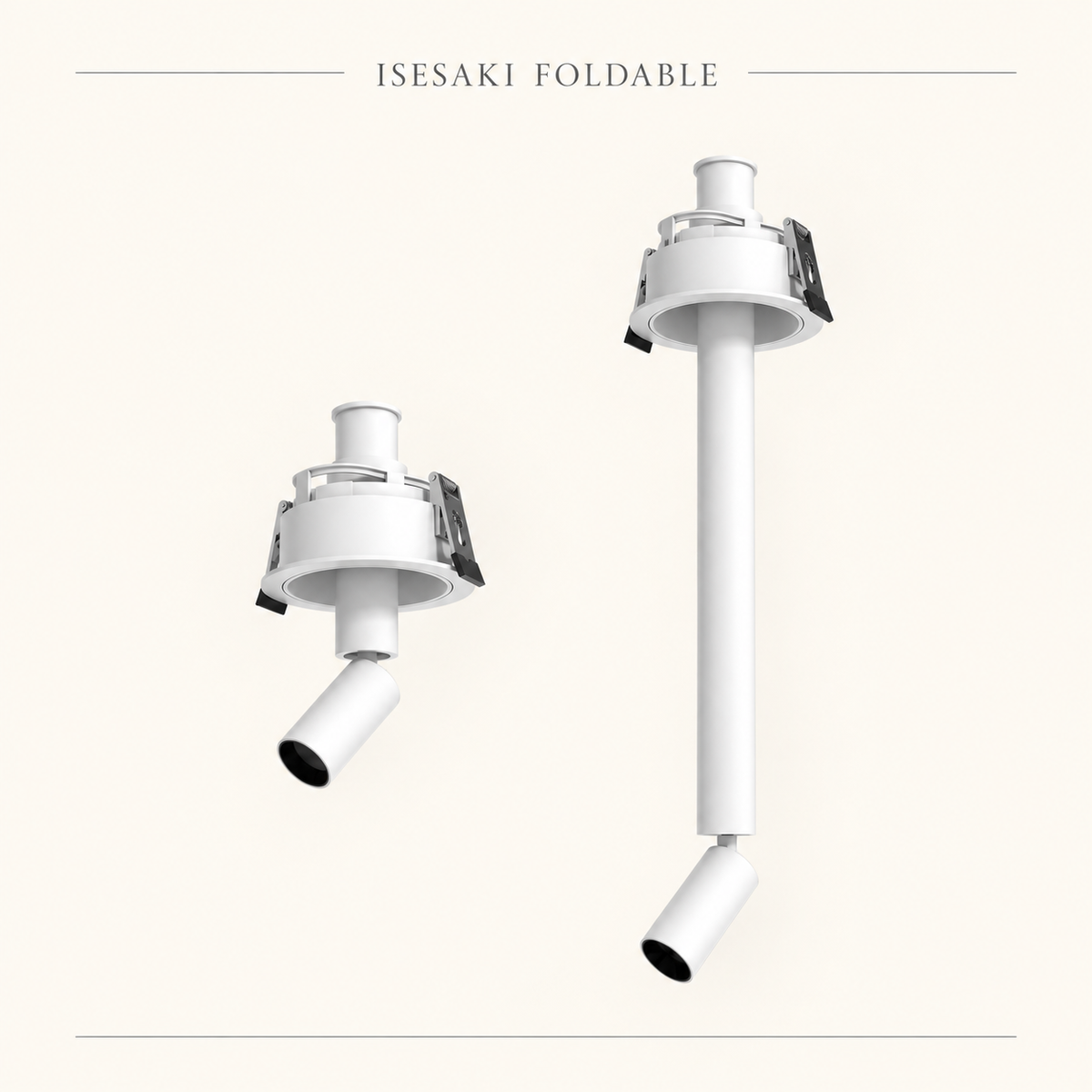

A recessed tube spotlight with a hinged terminal head. Four height specifications share an 86 mm trim and 75 mm cut-out at 5W. The folding head allows the accent direction to be coordinated with a display or work surface. Confirm adjustment clearance for the intended installation.
Select your specification
Choose the size and wattage, finish, then light colour and beam angle. Each wattage shown is an individual order option.

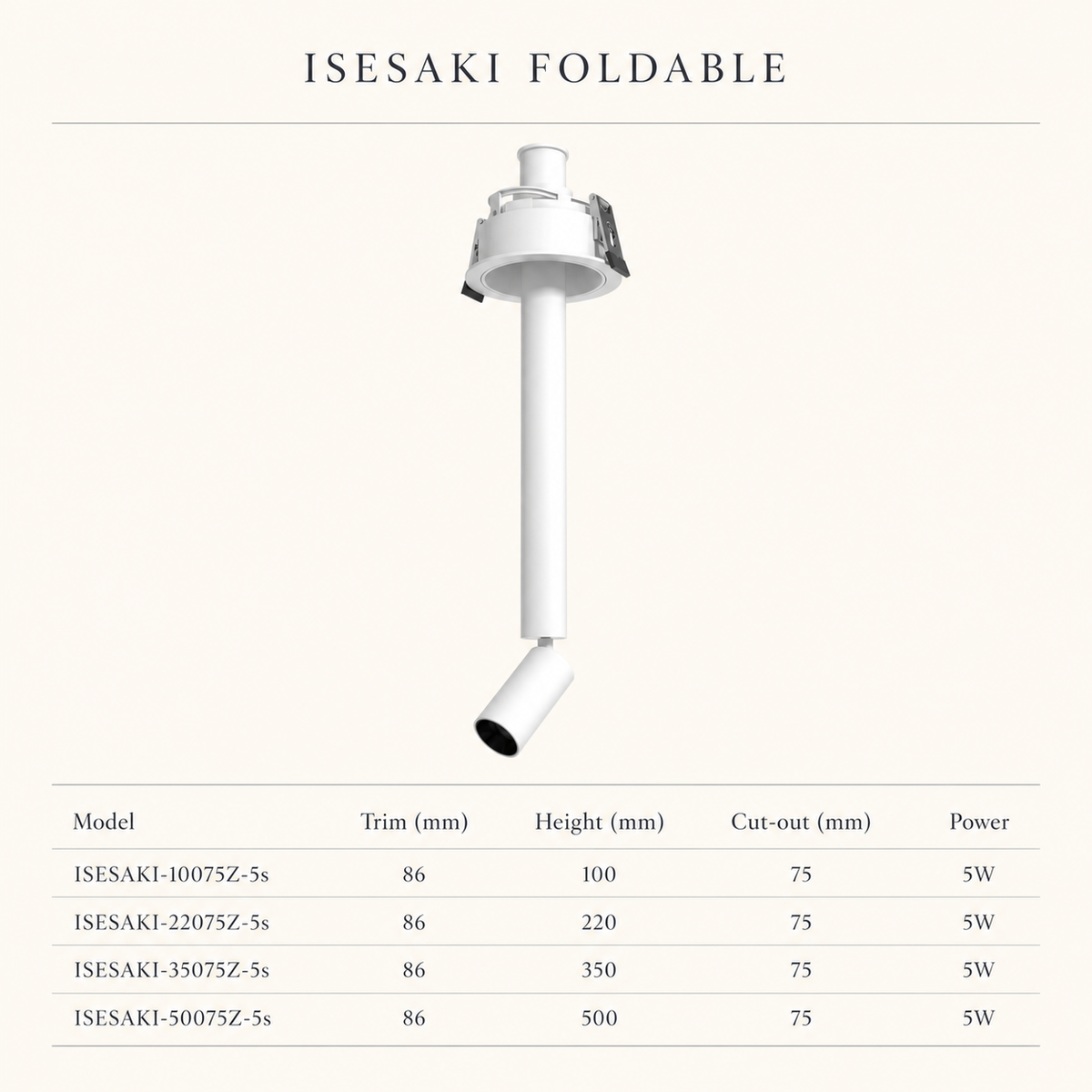

| Model remark | Body size | Mounting / cut-out | Selectable wattage |
|---|---|---|---|
| ISESAKI-10075Z-5s | Ø86 × H100 mm | Ø75 | 5W |
| ISESAKI-22075Z-5s | Ø86 × H220 mm | Ø75 | 5W |
| ISESAKI-35075Z-5s | Ø86 × H350 mm | Ø75 | 5W |
| ISESAKI-50075Z-5s | Ø86 × H500 mm | Ø75 | 5W |
Plan the lighting effect
3500K gives a gently warm atmosphere; 4000K creates a more neutral appearance. A narrower beam concentrates the accent on a smaller area, while a wider beam spreads it across more of the surface. Coordinate mounting height, spacing and aiming with the intended display or room.
Installation planning

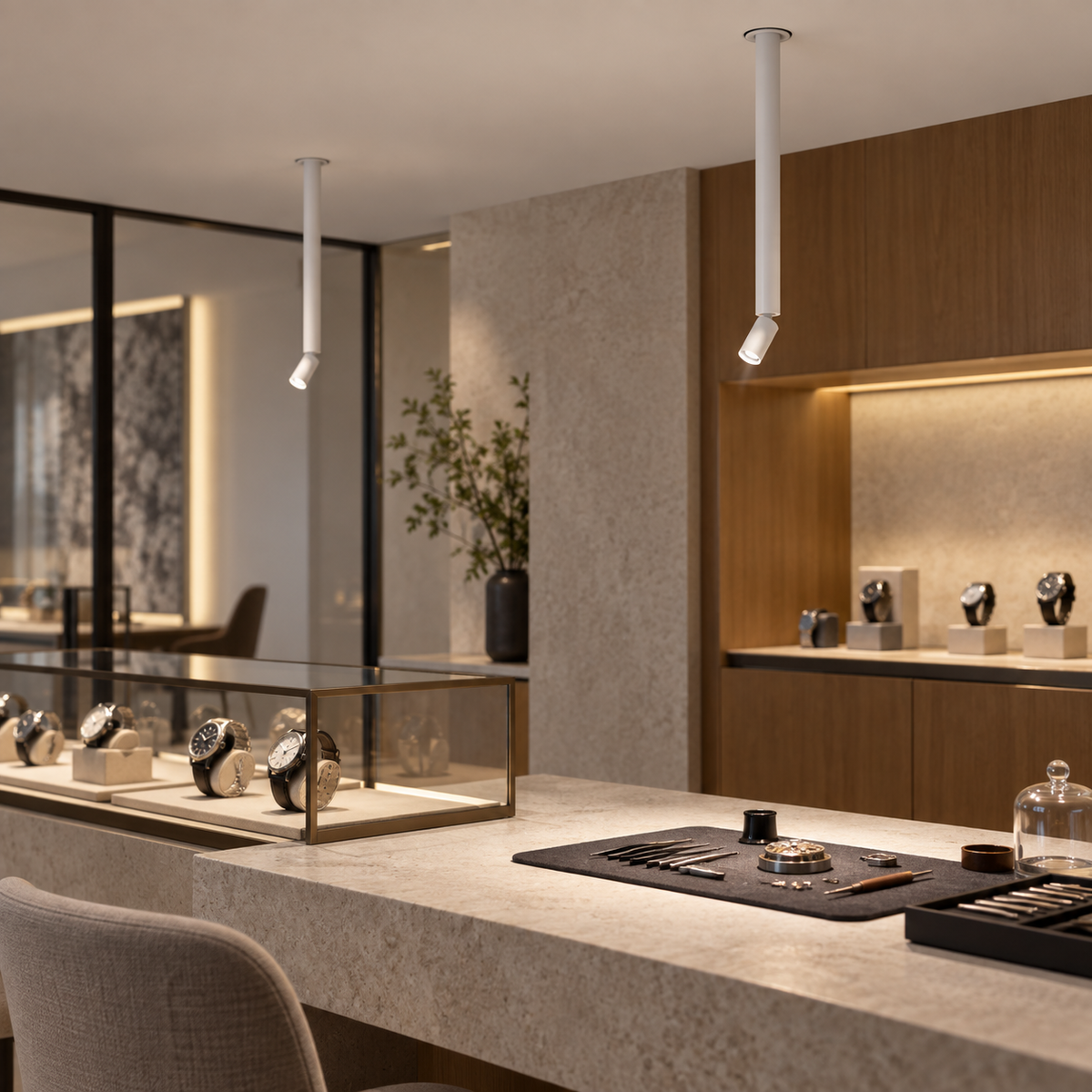

Match the ceiling opening to the selected cut-out. Allow clearance for the rear housing and electrical installation, with mounting springs concealed behind the finished surface. Product scene images illustrate an example arrangement. Share your room dimensions and intended application with KOYAMA for project advice.
Lead time: 15 days.
Shipping & Returns
Shipping & Returns
Please refer to this product’s description for lead time and availability. Contact us if you need a specific delivery date.
We do not accept change-of-mind or incorrect-selection returns. Please report damaged, defective or incorrect items within 14 days of delivery; statutory rights remain unaffected.
Contact: info@koyama.store | WhatsApp +65 8965 2378.
Read our full Returns & Exchanges policy
Dimensions
Dimensions
Dimensions vary by model and selected option. Refer to the model specifications and dimension drawings in this product’s description and images, matching them to your selected option. Body size and ceiling cut-out are different measurements. Confirm fitting dimensions, mounting method and installation clearance with your installer before installation. If a required measurement is missing, contact KOYAMA before ordering or cutting the ceiling.
Care Instructions
Care Instructions
Switch off the power and allow the fitting to cool before cleaning. Gently remove dust with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents, spray liquids onto the fitting, or allow moisture into electrical components. Do not dismantle drivers, controls or sealed parts. Follow the product’s installation instructions; electrical servicing should be carried out by a qualified installer.
