KASUGAI2 Recessed Pinhole Downlight
KASUGAI2 Recessed Pinhole Downlight
Couldn't load pickup availability
KASUGAI2 Recessed Pinhole Downlight

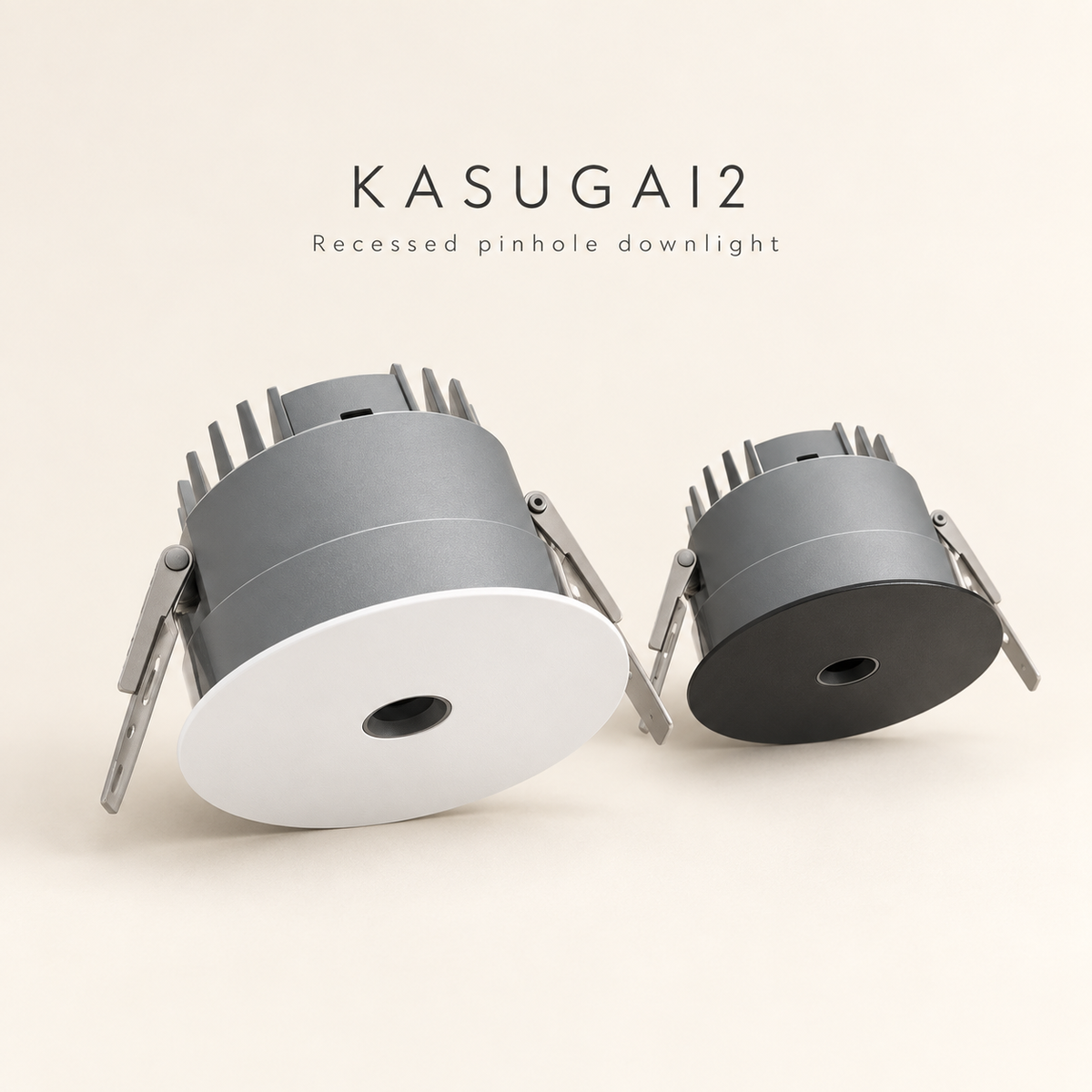

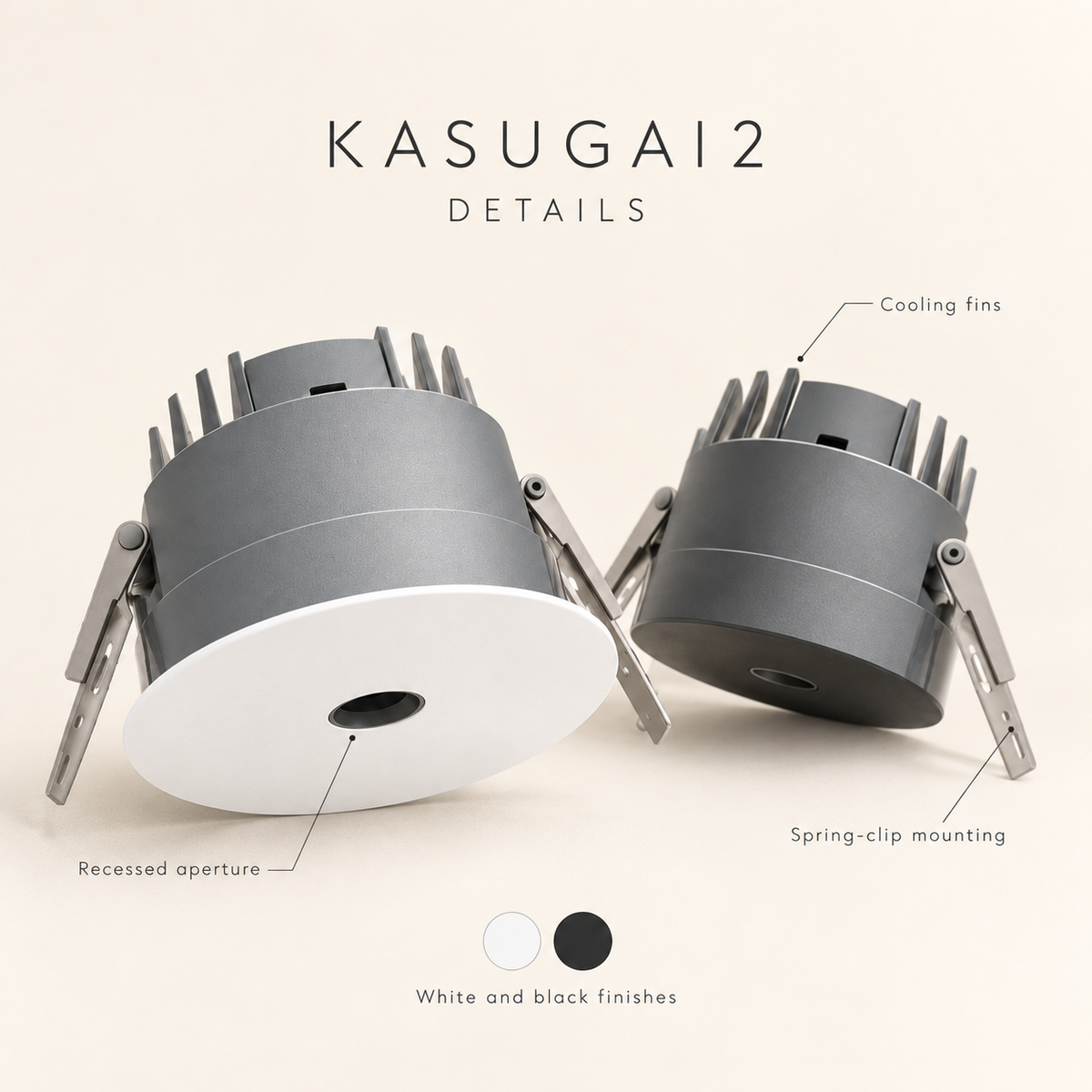

A compact recessed downlight with a broad, clean face and a small central light aperture. The cylindrical housing and spring clips sit above the ceiling, leaving a restrained circular face visible below. White and black finishes allow the fitting to blend with or contrast against the ceiling.
Select your specification
Choose the size and wattage, finish, then light colour and beam angle. The model remark identifies the exact catalogue specification.

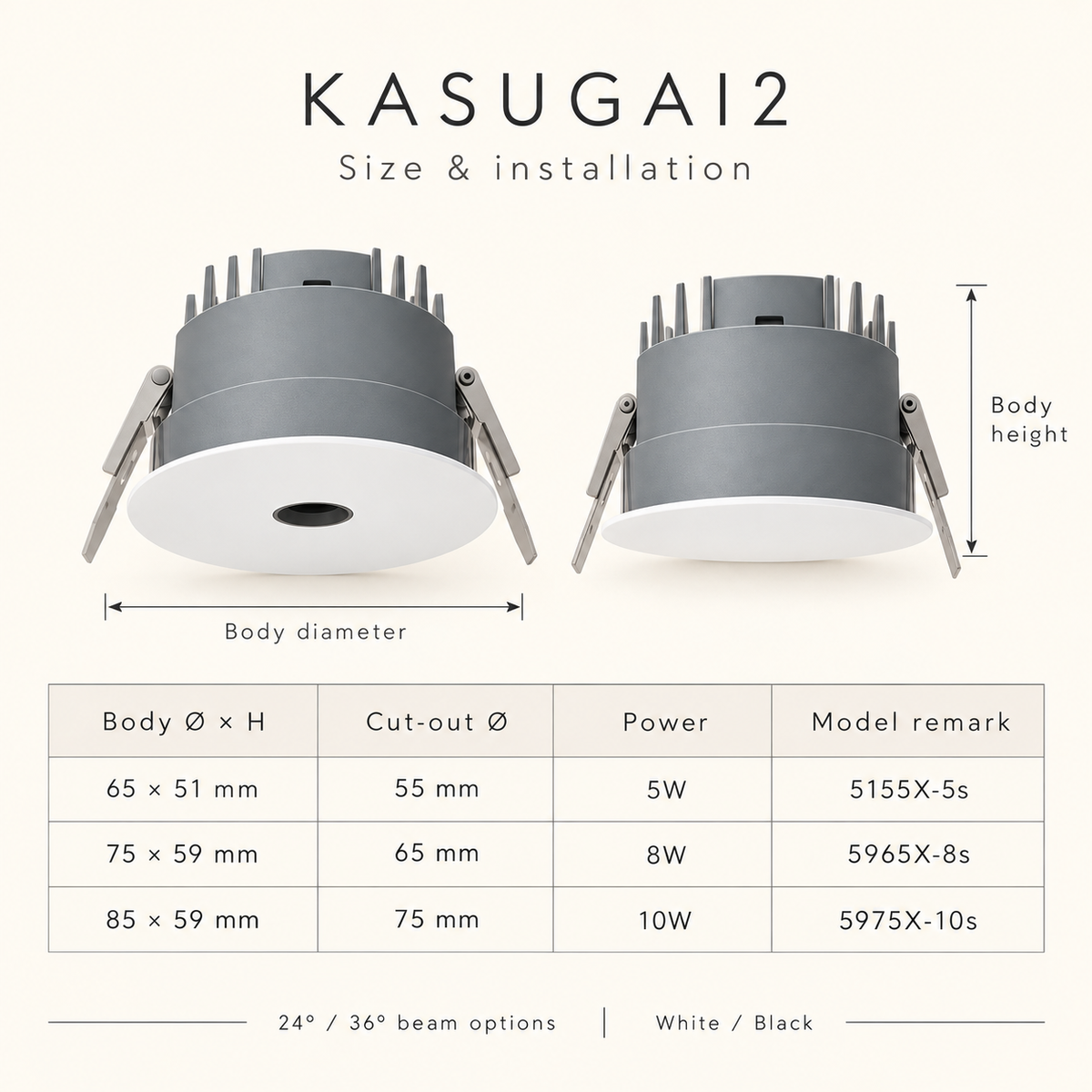

| Model remark | Body size | Cut-out | Selectable wattage |
|---|---|---|---|
| KASUGAI2-5155X-5s | Ø65 × H51 mm | Ø55 mm | 5W |
| KASUGAI2-5965X-8s | Ø75 × H59 mm | Ø65 mm | 8W |
| KASUGAI2-5975X-10s | Ø85 × H59 mm | Ø75 mm | 10W |
Plan the lighting effect
Choose a 24° or 36° beam for the surface being illuminated. The 5W, 8W and 10W models each have their own body size and cut-out. A small visible aperture keeps the ceiling composition discreet; the beam choice determines how concentrated the light appears.
3500K offers a gently warm atmosphere; 4000K gives a more neutral appearance. Available light colours run from 2700K to 6000K. Select the colour temperature to suit your materials and the way the space is used.
Installation planning

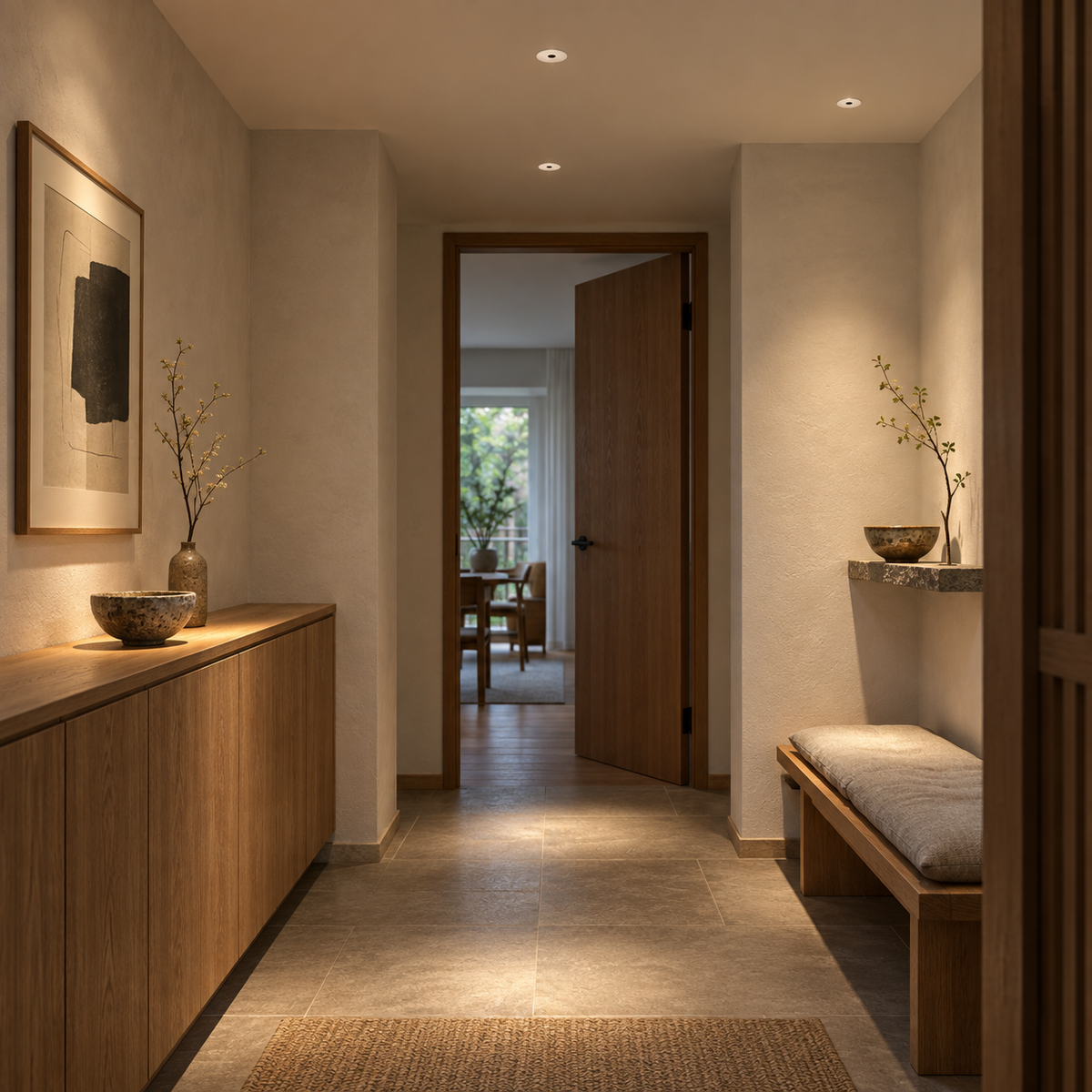

Match the ceiling opening to the selected cut-out and allow clearance above the ceiling for the housing and electrical connection. Conceal the mounting springs behind the finished ceiling. Product scene images illustrate an example arrangement; share your room dimensions and ceiling height with KOYAMA for project-specific advice.
Lead time: 15 days.
Shipping & Returns
Shipping & Returns
Please refer to this product’s description for lead time and availability. Contact us if you need a specific delivery date.
We do not accept change-of-mind or incorrect-selection returns. Please report damaged, defective or incorrect items within 14 days of delivery; statutory rights remain unaffected.
Contact: info@koyama.store | WhatsApp +65 8965 2378.
Read our full Returns & Exchanges policy
Dimensions
Dimensions
Dimensions vary by model and selected option. Refer to the model specifications and dimension drawings in this product’s description and images, matching them to your selected option. Body size and ceiling cut-out are different measurements. Confirm fitting dimensions, mounting method and installation clearance with your installer before installation. If a required measurement is missing, contact KOYAMA before ordering or cutting the ceiling.
Care Instructions
Care Instructions
Switch off the power and allow the fitting to cool before cleaning. Gently remove dust with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents, spray liquids onto the fitting, or allow moisture into electrical components. Do not dismantle drivers, controls or sealed parts. Follow the product’s installation instructions; electrical servicing should be carried out by a qualified installer.
