Koyama KE Licht LED Downlight - Round & Square Panel Lights (1 Year Warranty)

Product Overview:

Type: Slim LED Downlight Panel

Shape Options: Round & Square

Wattage Options: 6W / 9W / 12W / 15W / 18W

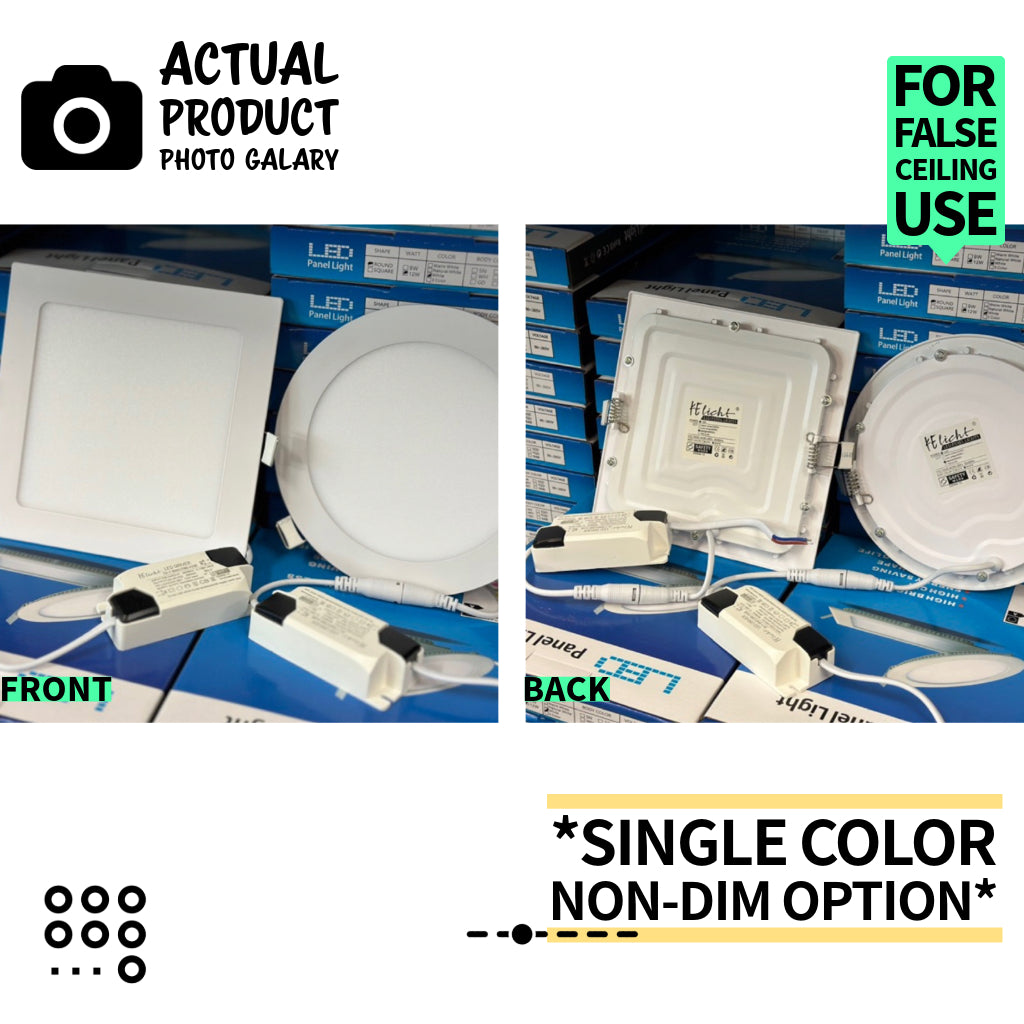

Included Components: Spring clips, LED light, and driver

Warranty: 1 Year

Important Information:

Assembly Note: To ensure safe transport, the spring clips are packed separately. You may need to install them upon receiving the product. We appreciate your understanding.

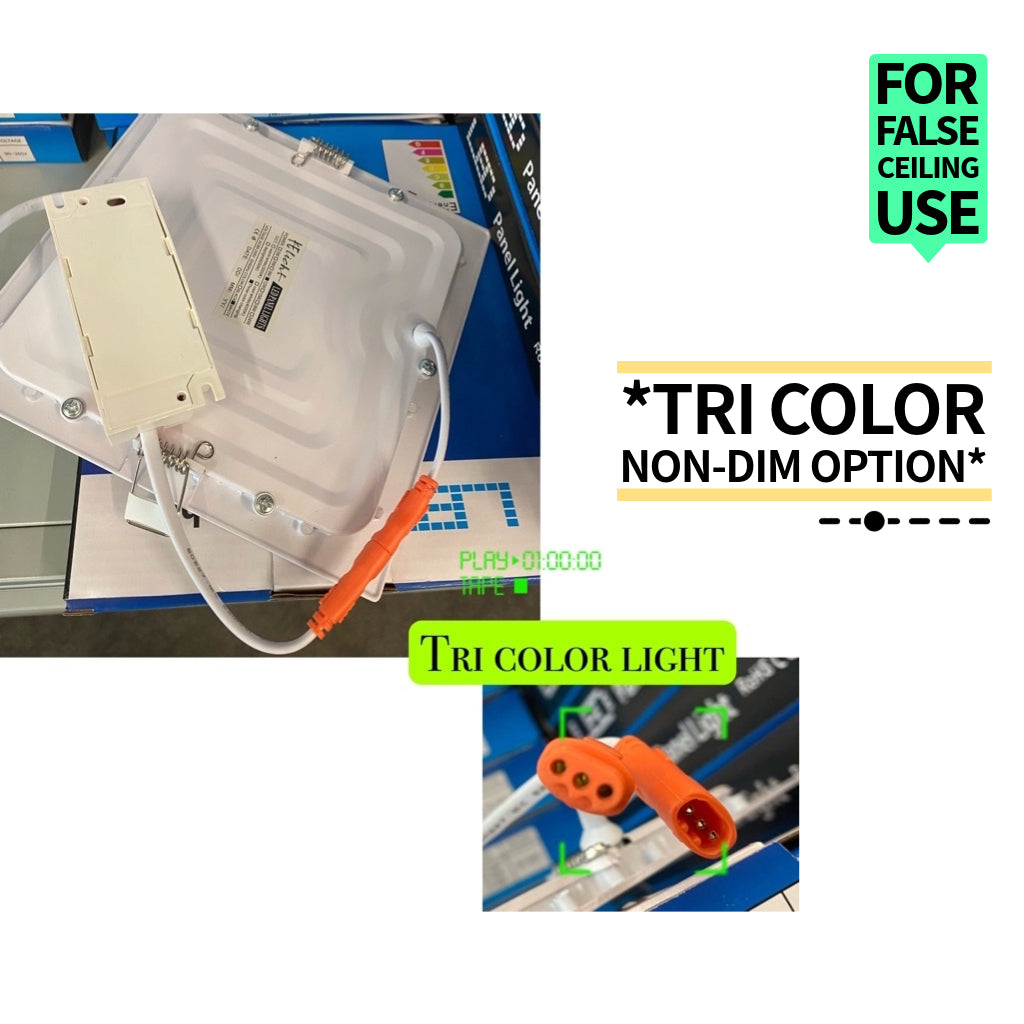

Tri-Color vs. Single-Color: Please note that the tri-color connectors and drivers differ from single-color variants due to the need for a 3-pin signal. Do not assume the connectors are the same.

Warranty Exchange: For warranty exchanges, the faulty parts must be returned to our office. Please note that we do not accept returns by mail or on-site collection. Thank you for your cooperation.

Specifications:

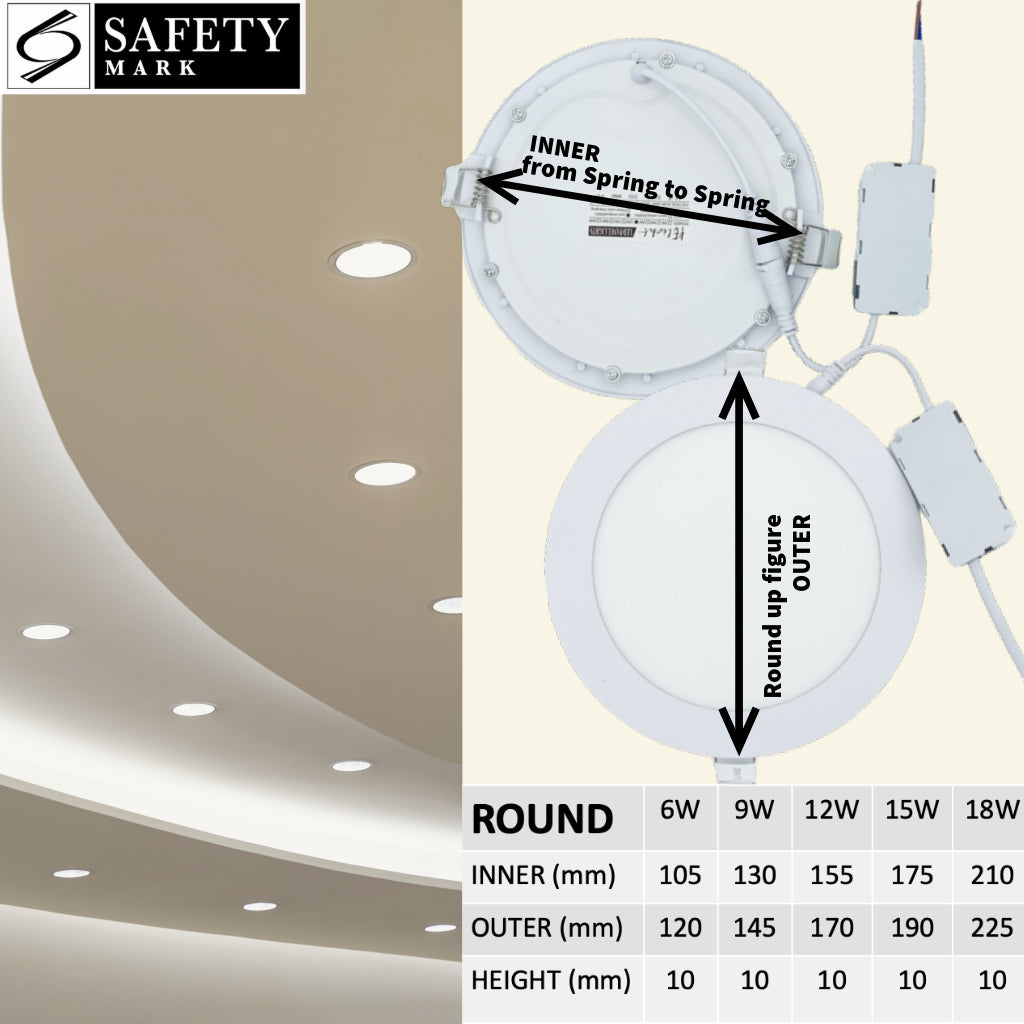

-Round LED Downlight Panel

Wattage: 6W

Outer Diameter: 120mm

Cut-Out Diameter: 105mm

Thickness: 10mm

Lumen Output: 450lm

Power: 85-265V/AC

Finish: White Coated

Wattage: 9W

Outer Diameter: 145mm

Cut-Out Diameter: 130mm

Thickness: 10mm

Lumen Output: 675lm

Power: 85-265V/AC

Finish: White Coated

Wattage: 12W

Outer Diameter: 170mm

Cut-Out Diameter: 155mm

Thickness: 10mm

Lumen Output: 900lm

Power: 85-265V/AC

Finish: White Coated

Wattage: 15W

Outer Diameter: 190mm

Cut-Out Diameter: 175mm

Thickness: 10mm

Lumen Output: 1000lm

Power: 85-265V/AC

Finish: White Coated

Wattage: 18W

Outer Diameter: 225mm

Cut-Out Diameter: 210mm

Thickness: 10mm

Lumen Output: 1450lm

Power: 85-265V/AC

Finish: White Coated

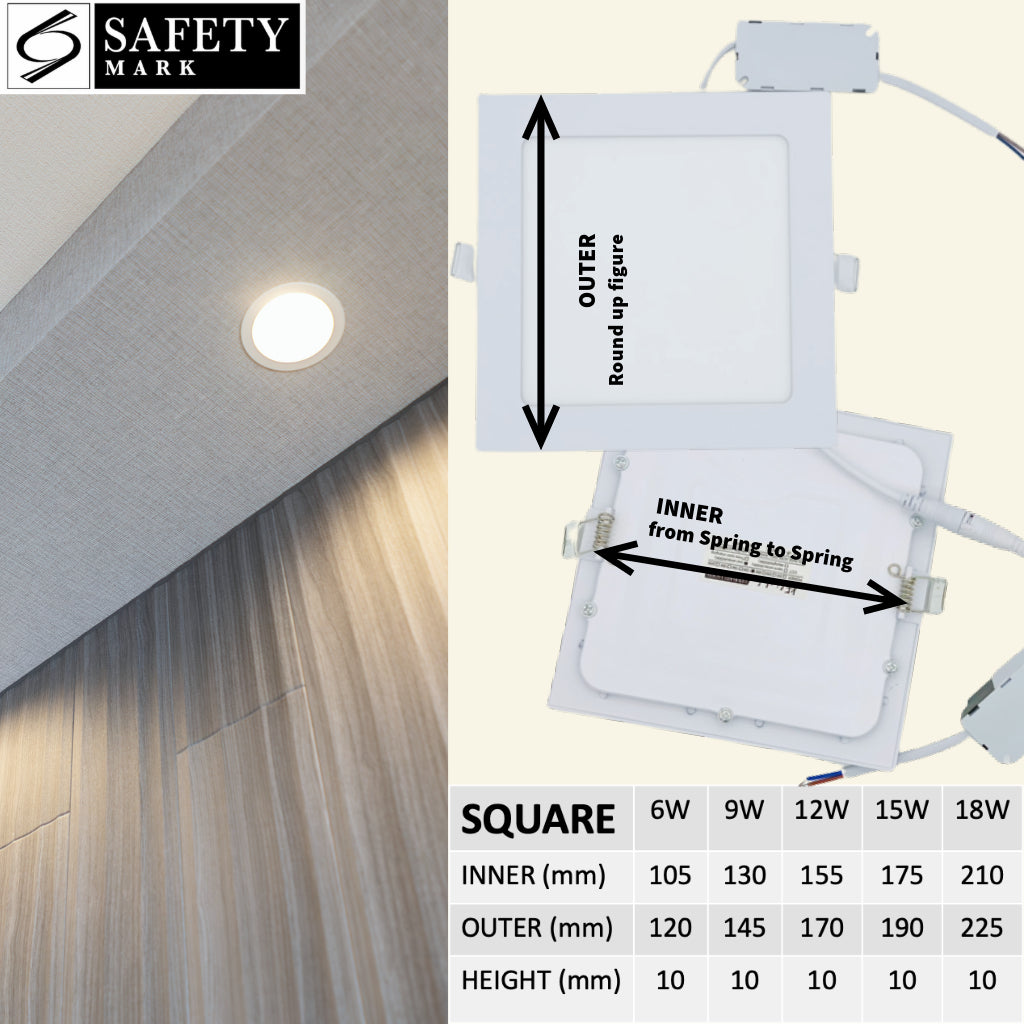

-Square LED Downlight Panel

Wattage: 6W

Outer Size: 120x120mm

Cut-Out Size: 105x105mm

Thickness: 10mm

Lumen Output: 450lm

Power: 85-265V/AC

Finish: White Coated

Wattage: 9W

Outer Size: 145x145mm

Cut-Out Size: 130x130mm

Thickness: 10mm

Lumen Output: 675lm

Power: 85-265V/AC

Finish: White Coated

Wattage: 12W

Outer Size: 170x170mm

Cut-Out Size: 155x155mm

Thickness: 10mm

Lumen Output: 900lm

Power: 85-265V/AC

Finish: White Coated

Wattage: 15W

Outer Size: 190x190mm

Cut-Out Size: 175x175mm

Thickness: 10mm

Lumen Output: 1000lm

Power: 85-265V/AC

Finish: White Coated

Wattage: 18W

Outer Size: 225x225mm

Cut-Out Size: 210x210mm

Thickness: 10mm

Lumen Output: 1450lm

Power: 85-265V/AC

Finish: White Coated

Additional Services:

Installation Service: S$15.00/pcs

Indoor Lighting Point with Installation: S$90.00/point

Faulty Circuit Inspection: S$110.00/time

Total bill below $500.00, there will be additional charge for transportation fee S$130.00

Please contact our customer service if you require installation or other services. Arrangements will be made separately.
