KIRYU Surface Mounted Spotlight

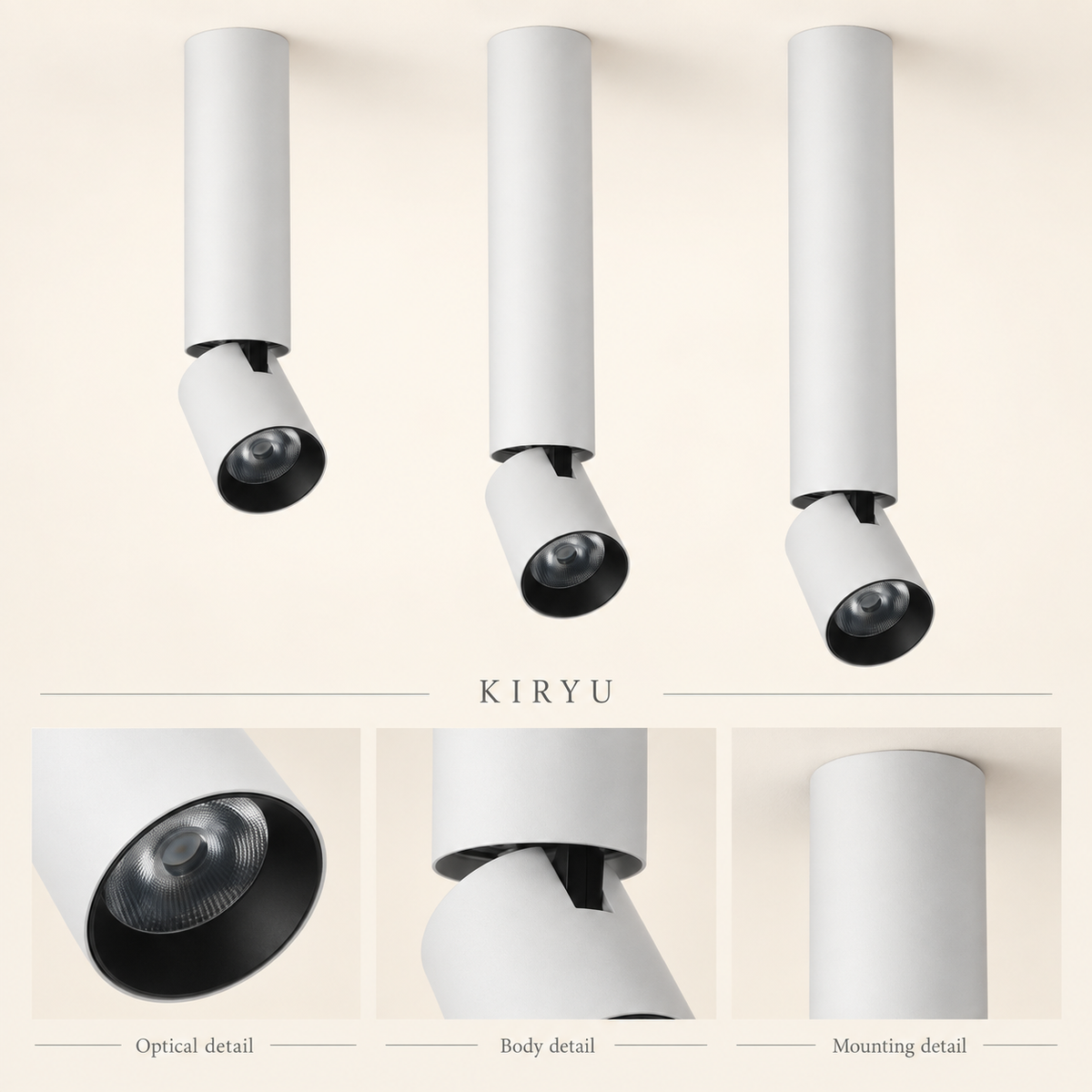

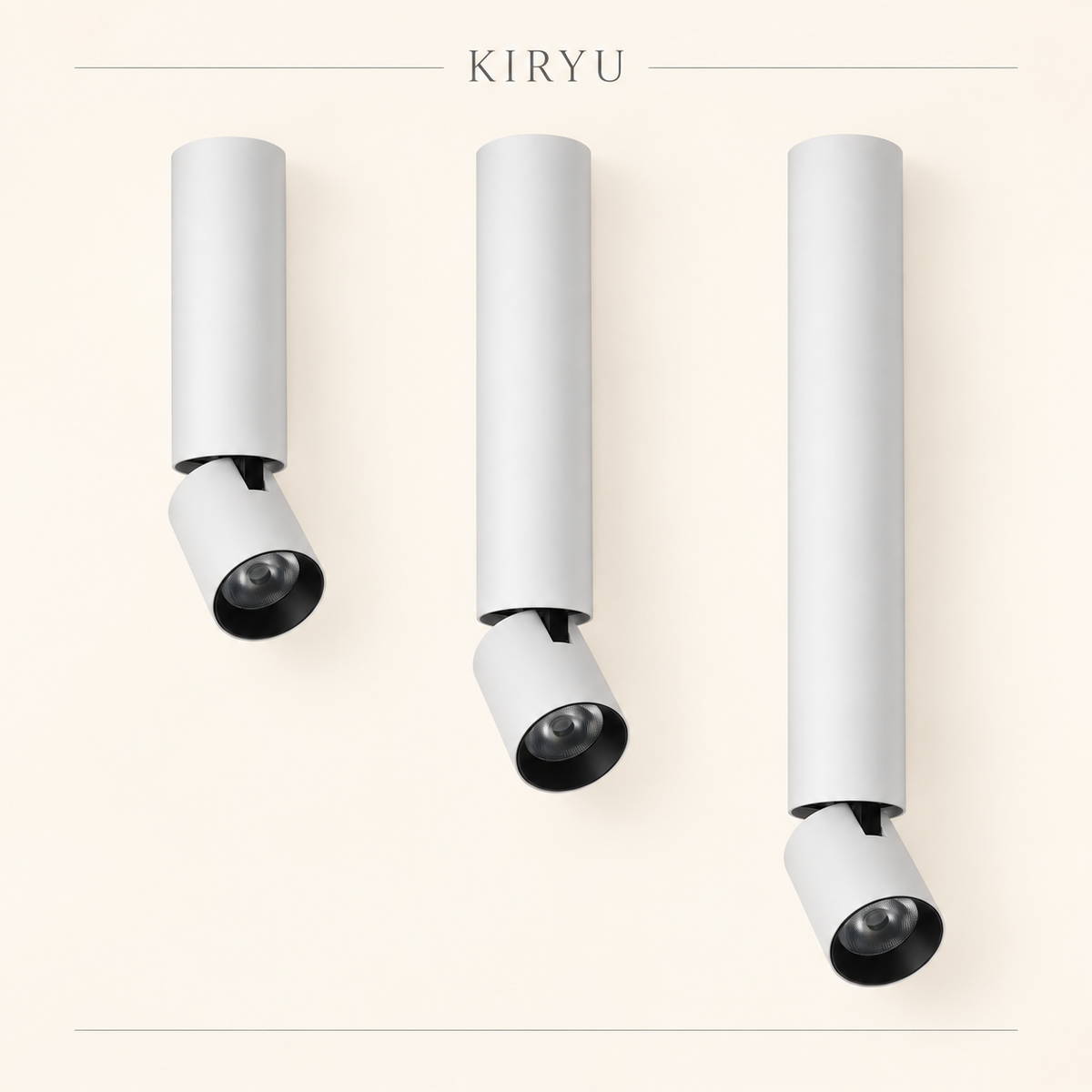

A surface mounted cylindrical spotlight with a hinged terminal head. Two body diameters and three heights provide a choice for different interior proportions. The 42 mm family offers 5W, 6W or 7W; the 62 mm family offers 10W, 13W or 15W. Choose the body size, power, light colour and beam angle to suit the intended accent.
Select your specification
Choose the size and wattage, finish, then light colour and beam angle. Each wattage shown is an individual order option.

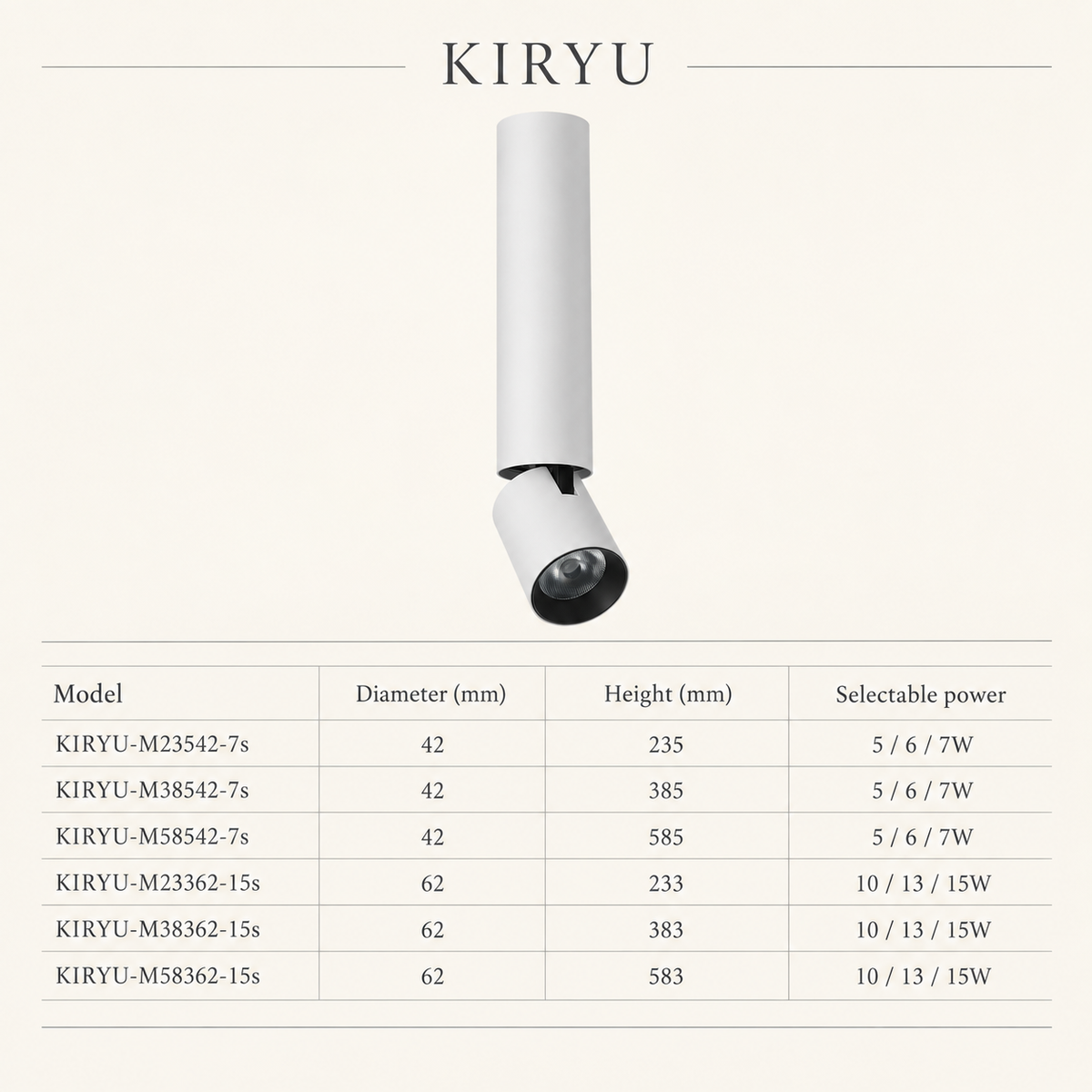

| Model remark | Body size | Mounting / cut-out | Selectable wattage |
|---|---|---|---|
| KIRYU-M23542-7s | Ø42 × H235 mm | Surface mounted | 5W / 6W / 7W |
| KIRYU-M38542-7s | Ø42 × H385 mm | Surface mounted | 5W / 6W / 7W |
| KIRYU-M58542-7s | Ø42 × H585 mm | Surface mounted | 5W / 6W / 7W |
| KIRYU-M23362-15s | Ø62 × H233 mm | Surface mounted | 10W / 13W / 15W |
| KIRYU-M38362-15s | Ø62 × H383 mm | Surface mounted | 10W / 13W / 15W |
| KIRYU-M58362-15s | Ø62 × H583 mm | Surface mounted | 10W / 13W / 15W |
Plan the lighting effect
3500K gives a gently warm atmosphere; 4000K creates a more neutral appearance. A narrower beam concentrates the accent on a smaller area, while a wider beam spreads it across more of the surface. Coordinate mounting height, spacing and aiming with the intended display or room.
Installation planning

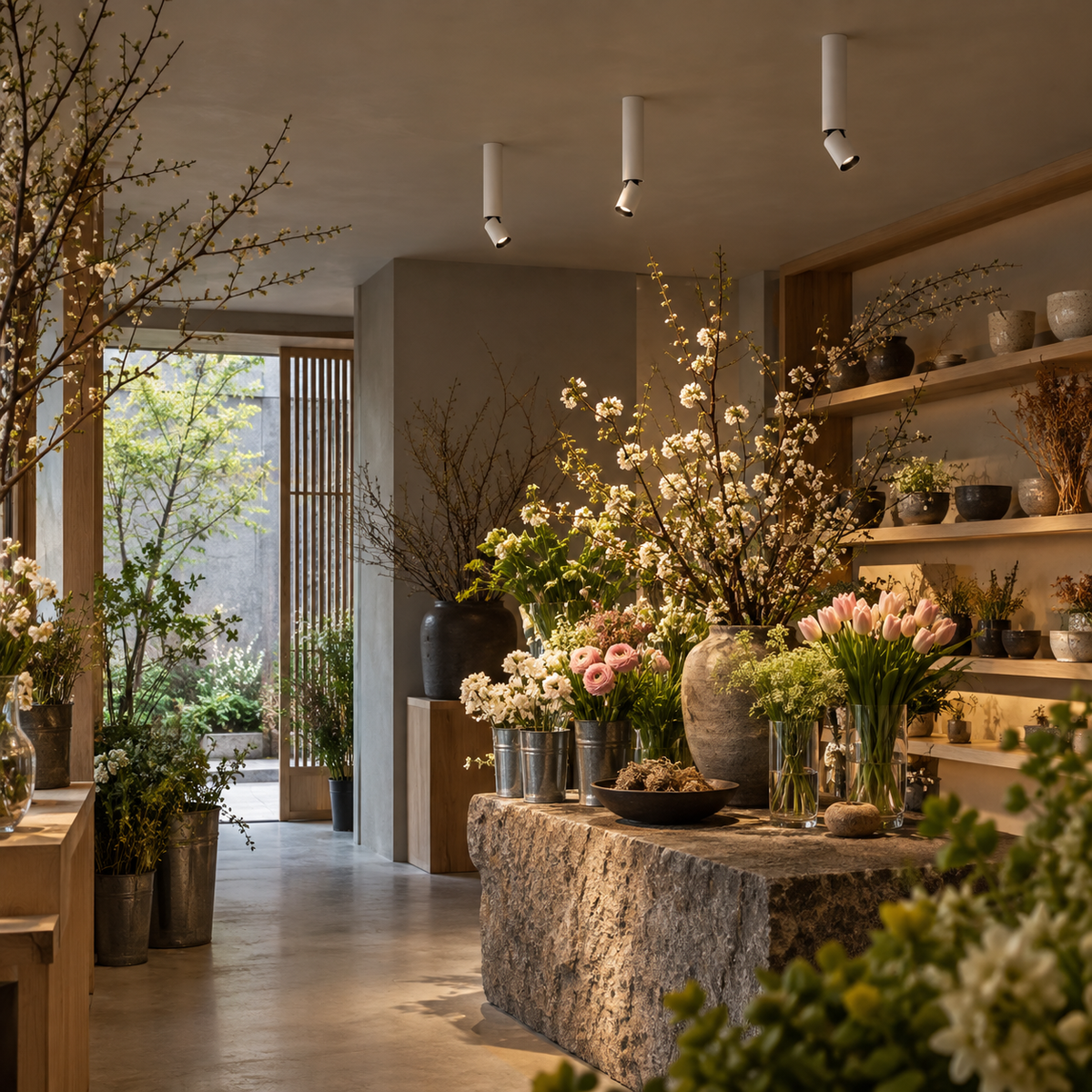

Surface mount the fitting to a suitable ceiling substrate and plan the electrical connection before installation. Allow clearance around the adjustable terminal head. Product scene images illustrate an example arrangement. Share your room dimensions and intended application with KOYAMA for project advice.
Lead time: 15 days.
Shipping & Returns
Shipping & Returns
Please refer to this product’s description for lead time and availability. Contact us if you need a specific delivery date.
We do not accept change-of-mind or incorrect-selection returns. Please report damaged, defective or incorrect items within 14 days of delivery; statutory rights remain unaffected.
Contact: info@koyama.store | WhatsApp +65 8965 2378.
Read our full Returns & Exchanges policy
Dimensions
Dimensions
Dimensions vary by model and selected option. Refer to the model specifications and dimension drawings in this product’s description and images, matching them to your selected option. Body size and ceiling cut-out are different measurements. Confirm fitting dimensions, mounting method and installation clearance with your installer before installation. If a required measurement is missing, contact KOYAMA before ordering or cutting the ceiling.
Care Instructions
Care Instructions
Switch off the power and allow the fitting to cool before cleaning. Gently remove dust with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents, spray liquids onto the fitting, or allow moisture into electrical components. Do not dismantle drivers, controls or sealed parts. Follow the product’s installation instructions; electrical servicing should be carried out by a qualified installer.
