KOYAMA
KONAN Recessed Downlight
KONAN Recessed Downlight
Couldn't load pickup availability
KONAN Recessed Downlight

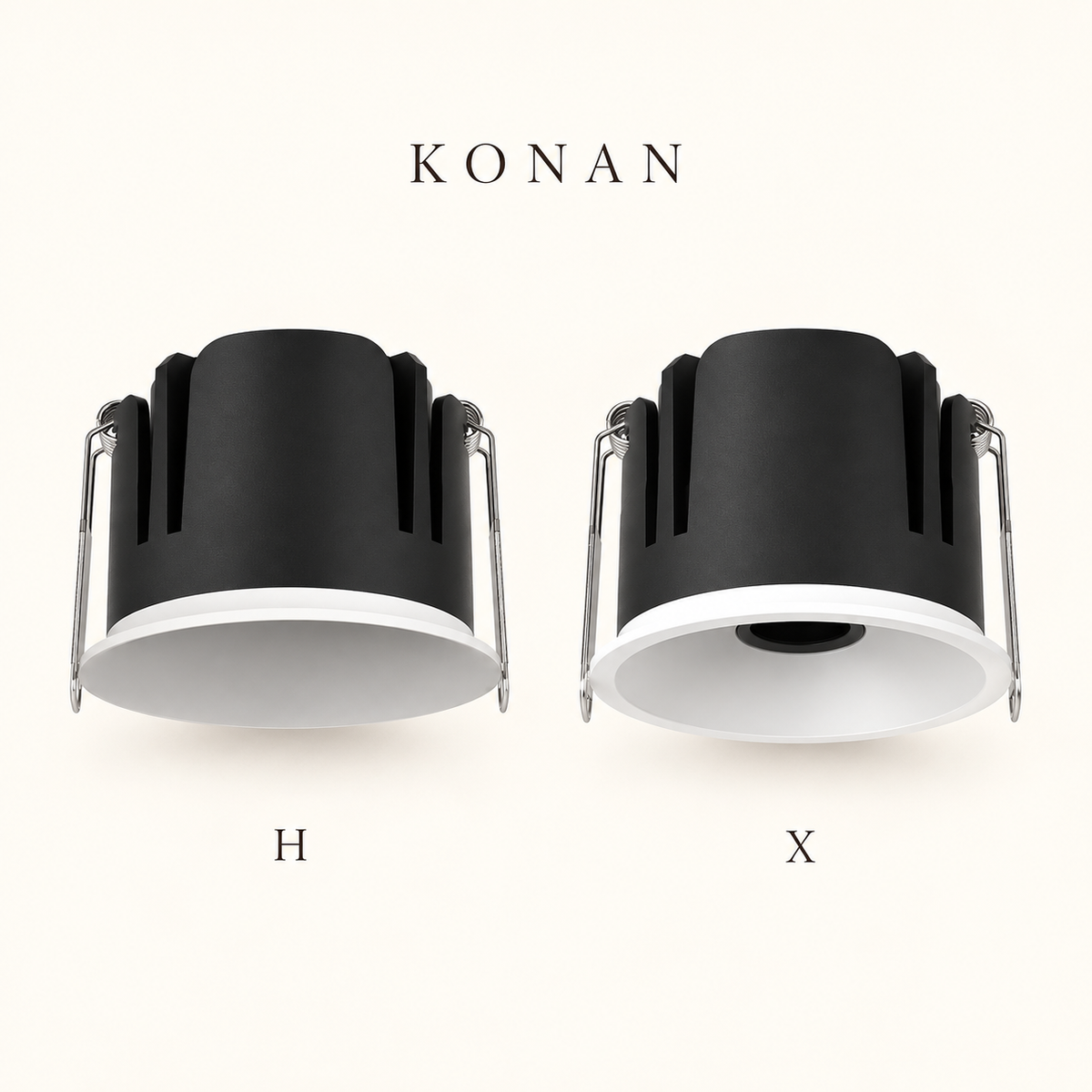

A compact recessed downlight family with a white front trim and concealed rear housing. Choose the H or X model remark and the required size, then select wattage, light colour and beam angle. The product images show the two front profiles as supplied in the catalogue.
Select your specification

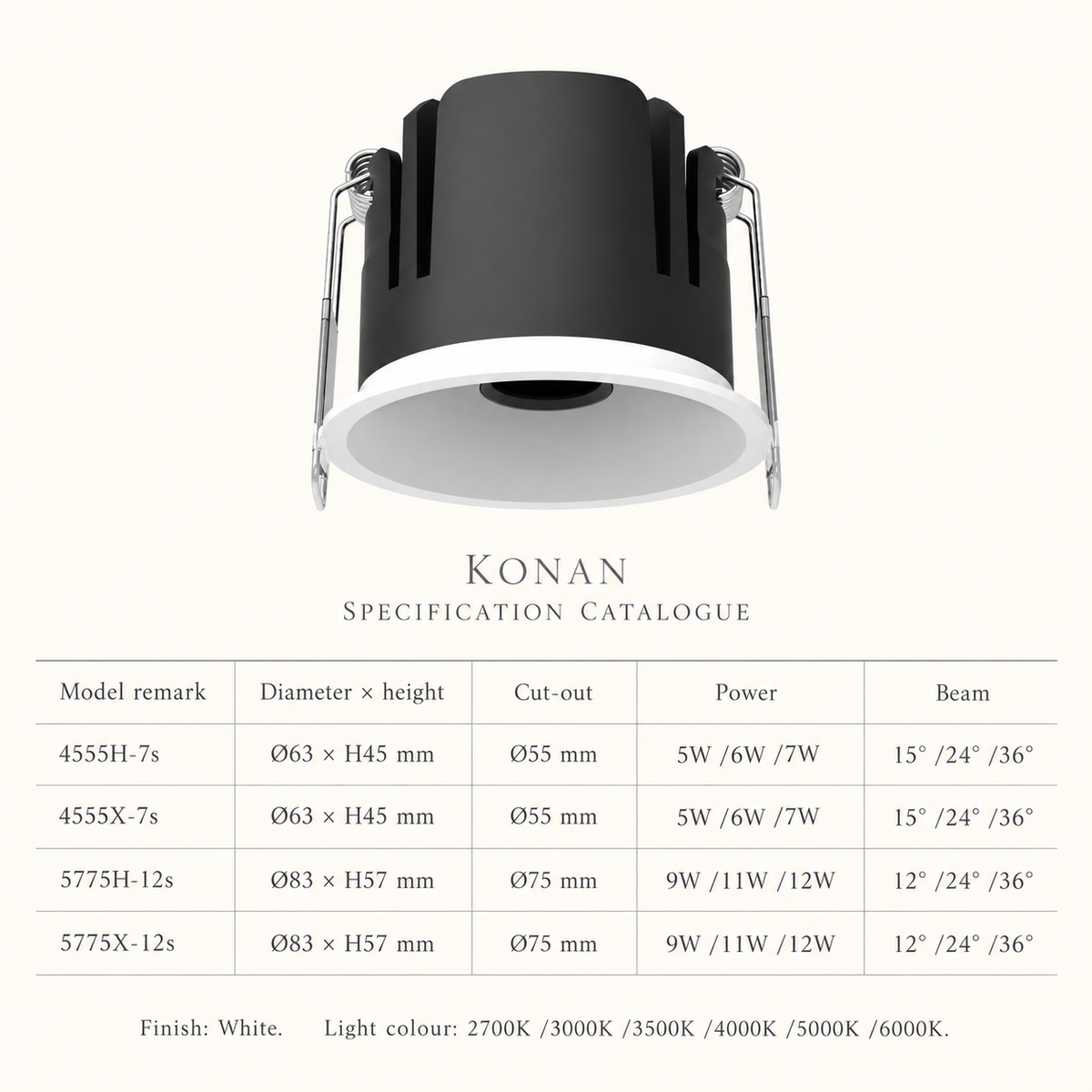

| Model remark | Diameter × height | Cut-out | Power options | Beam |
|---|---|---|---|---|
| 4555H-7s | Ø63 × H45 mm | 55mm | 5W / 6W / 7W | 15° / 24° / 36° |
| 4555X-7s | Ø63 × H45 mm | 55mm | 5W / 6W / 7W | 15° / 24° / 36° |
| 5775H-12s | Ø83 × H57 mm | 75mm | 9W / 11W / 12W | 12° / 24° / 36° |
| 5775X-12s | Ø83 × H57 mm | 75mm | 9W / 11W / 12W | 12° / 24° / 36° |
Each wattage is an individual order option. Finish: White. Light colours: 2700K, 3000K, 3500K, 4000K, 5000K and 6000K.
Coordinate the room lighting

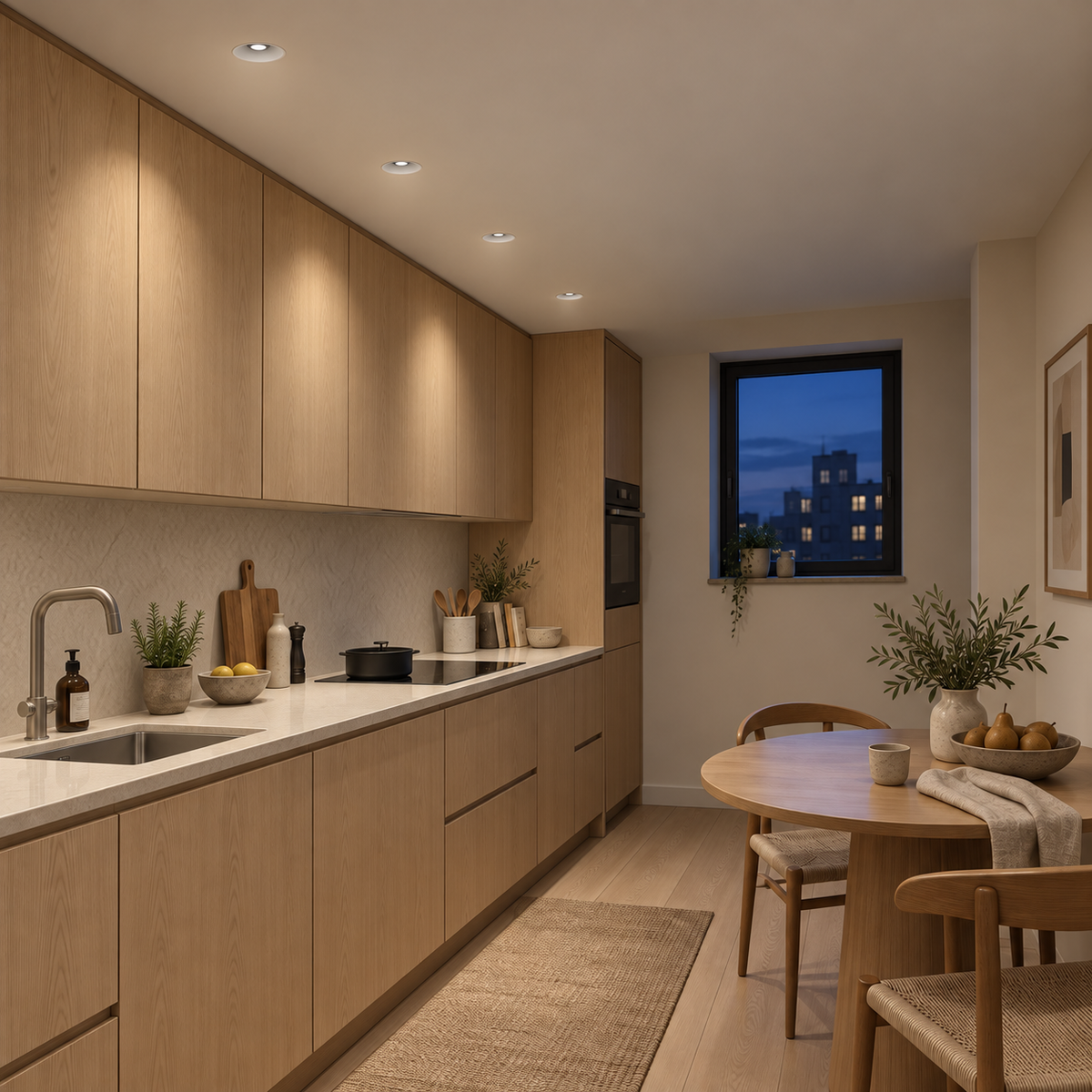

Select the beam angle and mounting position according to the required coverage. The 55 mm cut-out models offer 15°, 24° and 36°; the 75 mm cut-out models offer 12°, 24° and 36°. A wider beam spreads light over more area at the same distance. Scene images illustrate a possible arrangement; actual brightness and distribution depend on the selected specification, spacing and materials.
Installation planning

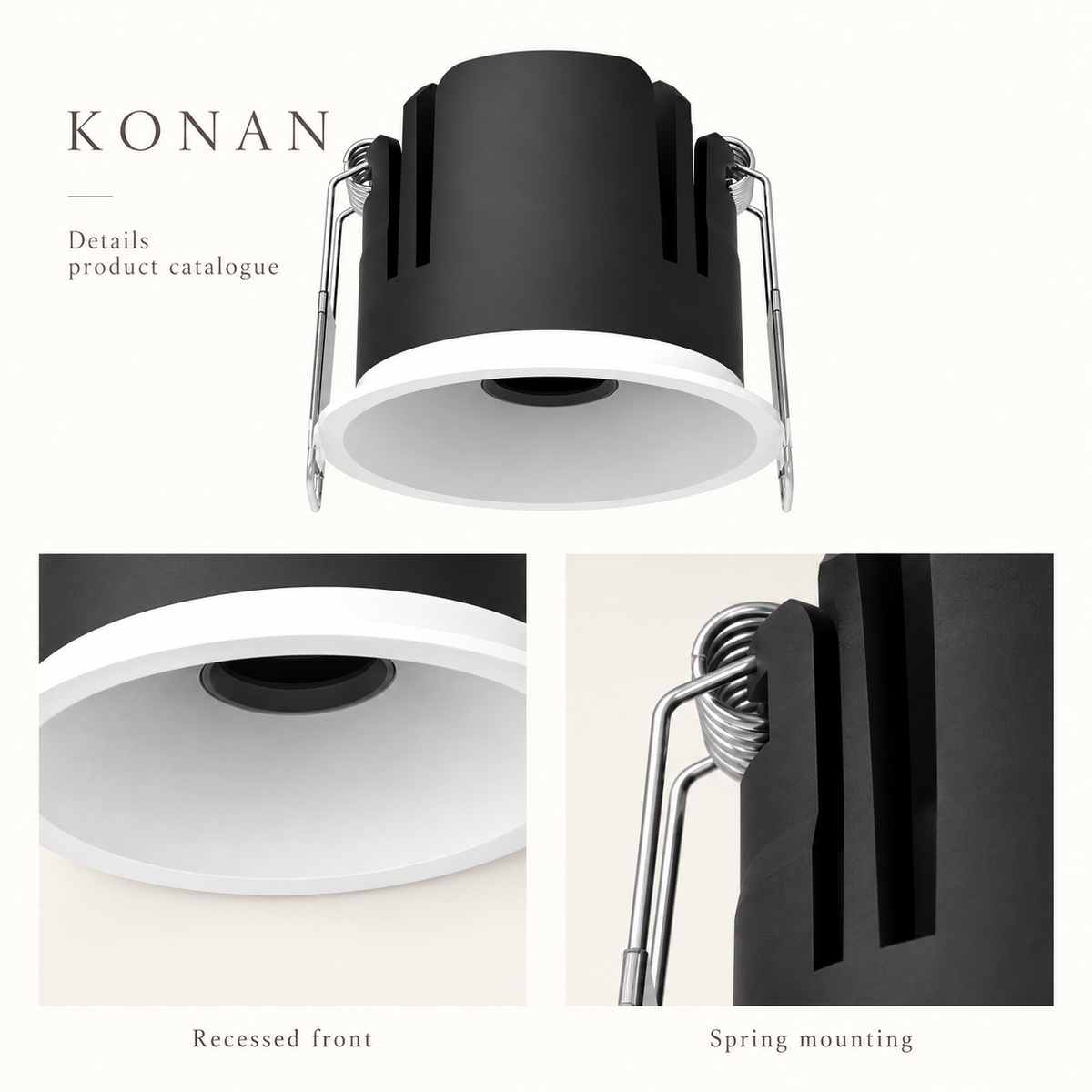

Match the opening to the selected cut-out and allow space for the full housing depth and electrical installation. Conceal the rear housing and spring clips above the finished ceiling.
Lead time: 15 days.
Shipping & Returns
Shipping & Returns
Please refer to this product’s description for lead time and availability. Contact us if you need a specific delivery date.
We do not accept change-of-mind or incorrect-selection returns. Please report damaged, defective or incorrect items within 14 days of delivery; statutory rights remain unaffected.
Contact: info@koyama.store | WhatsApp +65 8965 2378.
Read our full Returns & Exchanges policy
Dimensions
Dimensions
Dimensions vary by model and selected option. Refer to the model specifications and dimension drawings in this product’s description and images, matching them to your selected option. Body size and ceiling cut-out are different measurements. Confirm fitting dimensions, mounting method and installation clearance with your installer before installation. If a required measurement is missing, contact KOYAMA before ordering or cutting the ceiling.
Care Instructions
Care Instructions
Switch off the power and allow the fitting to cool before cleaning. Gently remove dust with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents, spray liquids onto the fitting, or allow moisture into electrical components. Do not dismantle drivers, controls or sealed parts. Follow the product’s installation instructions; electrical servicing should be carried out by a qualified installer.
