KOYAMA AMAGI IP65 Slim Linear Step Light
KOYAMA AMAGI IP65 Slim Linear Step Light
Couldn't load pickup availability
AMAGI IP65 Slim Linear Step Light

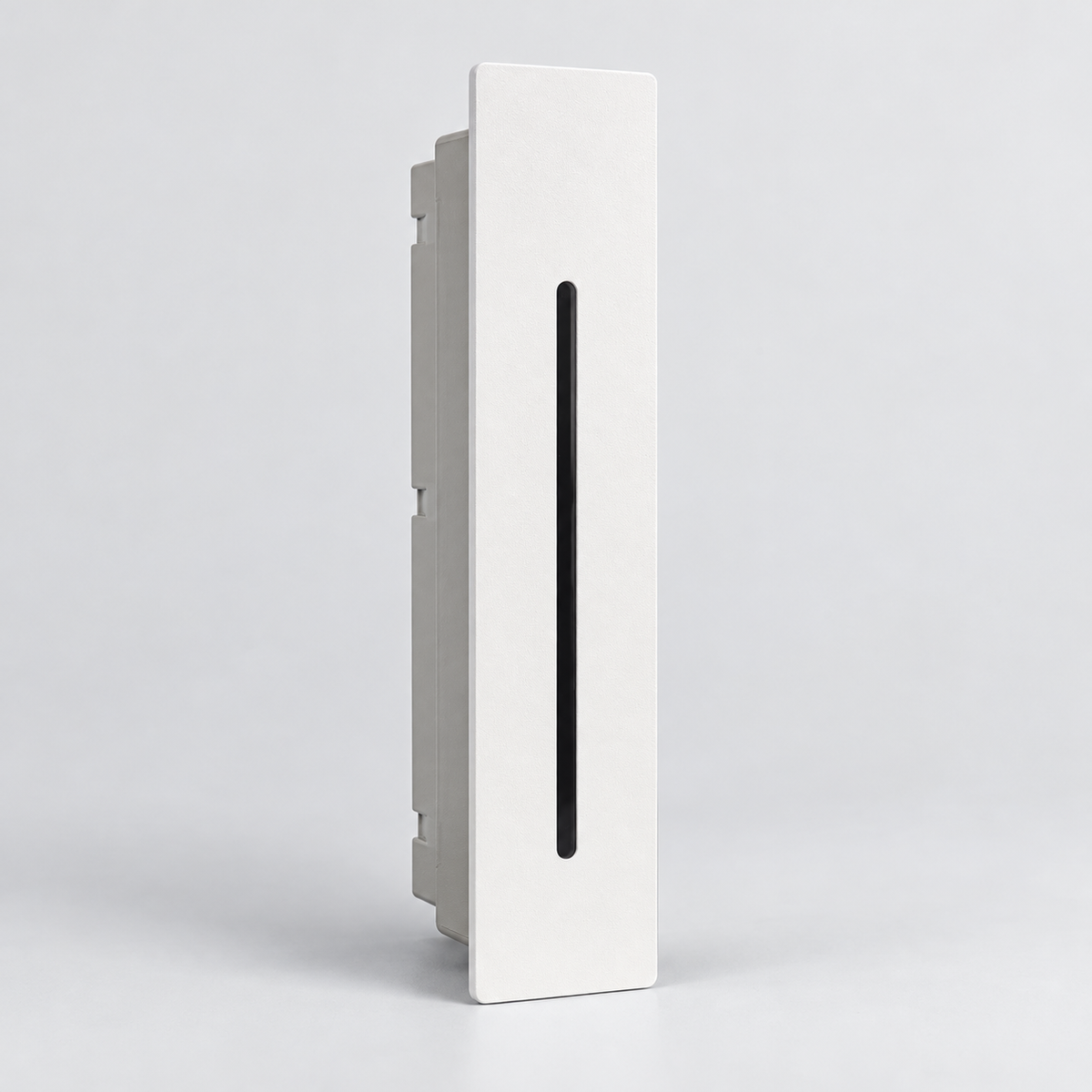

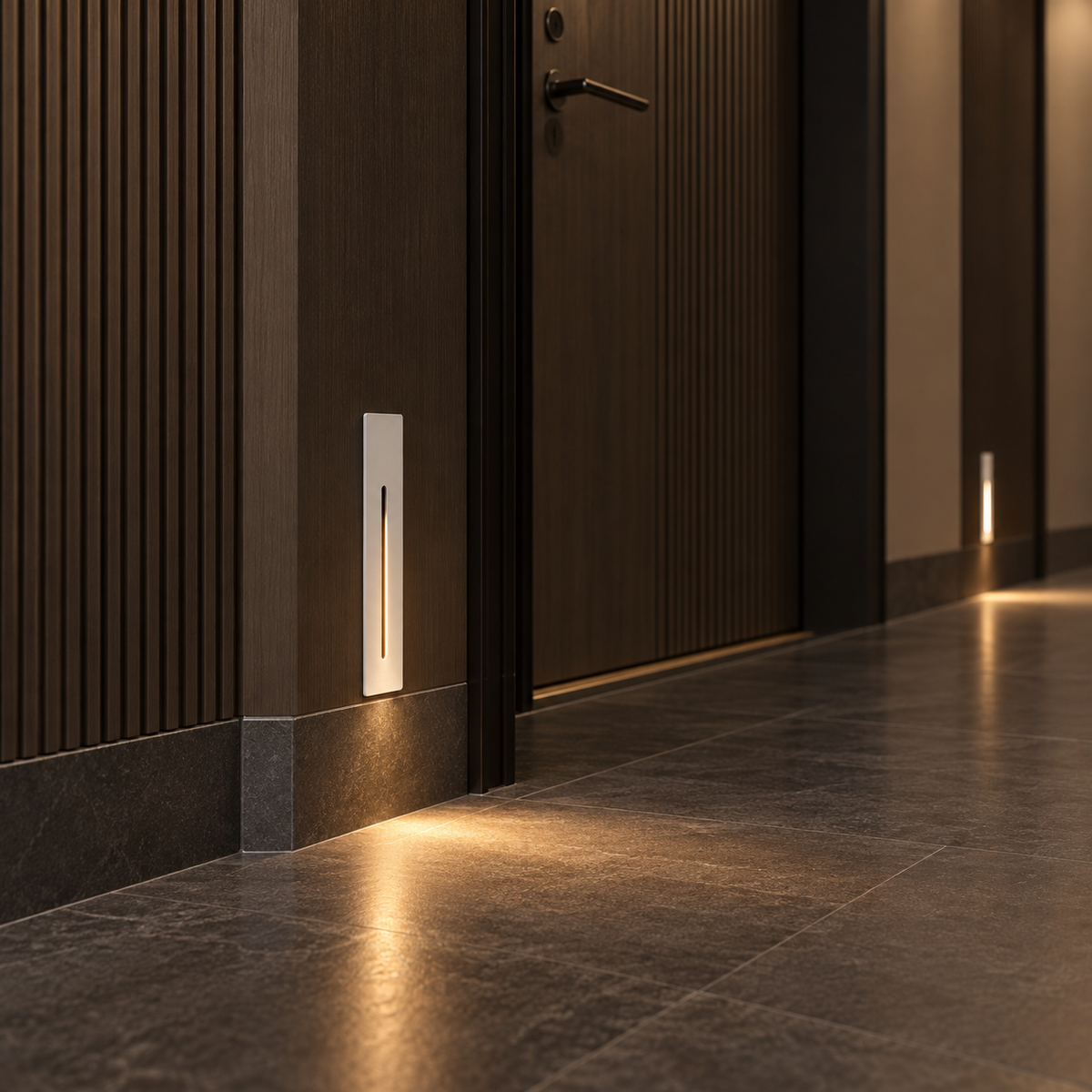

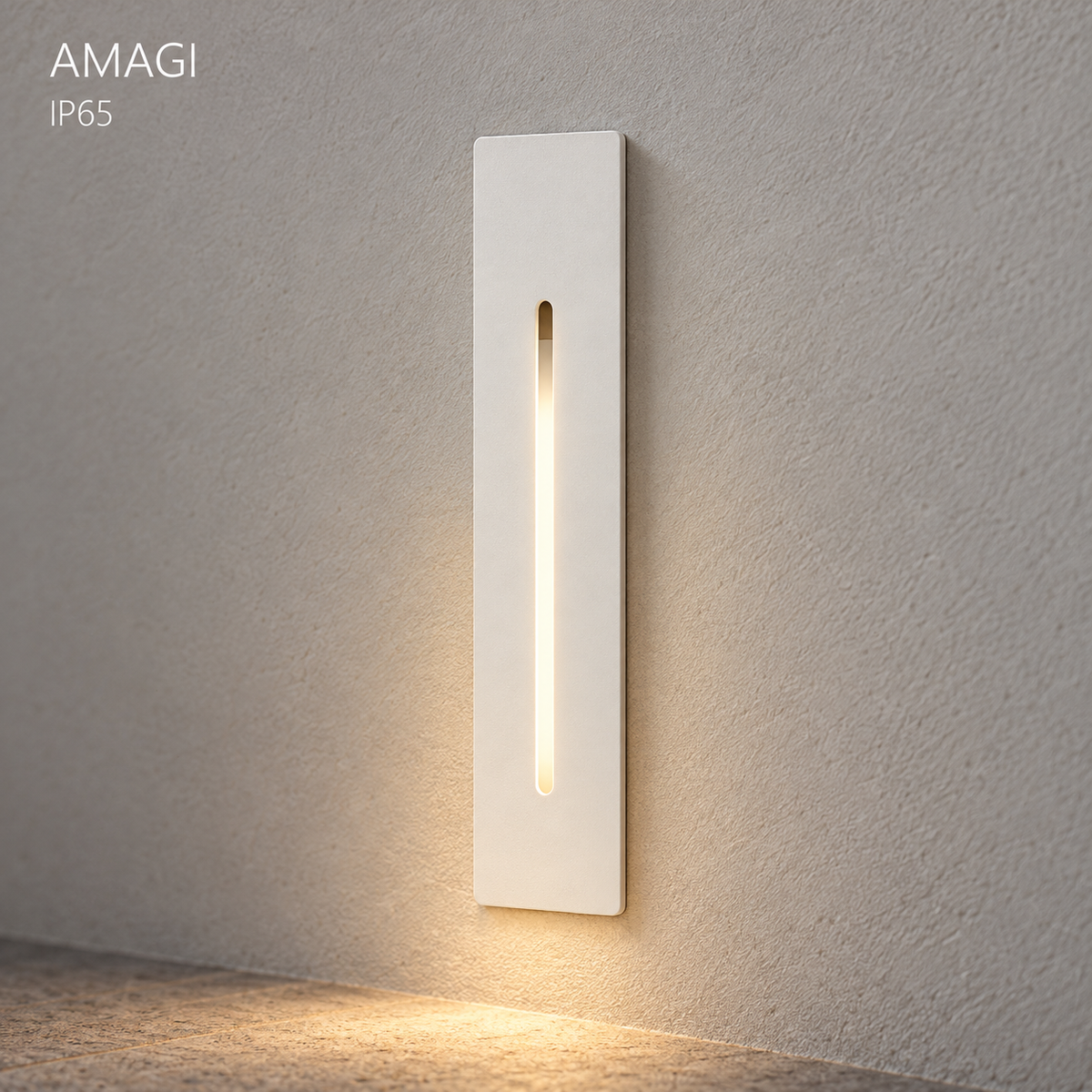

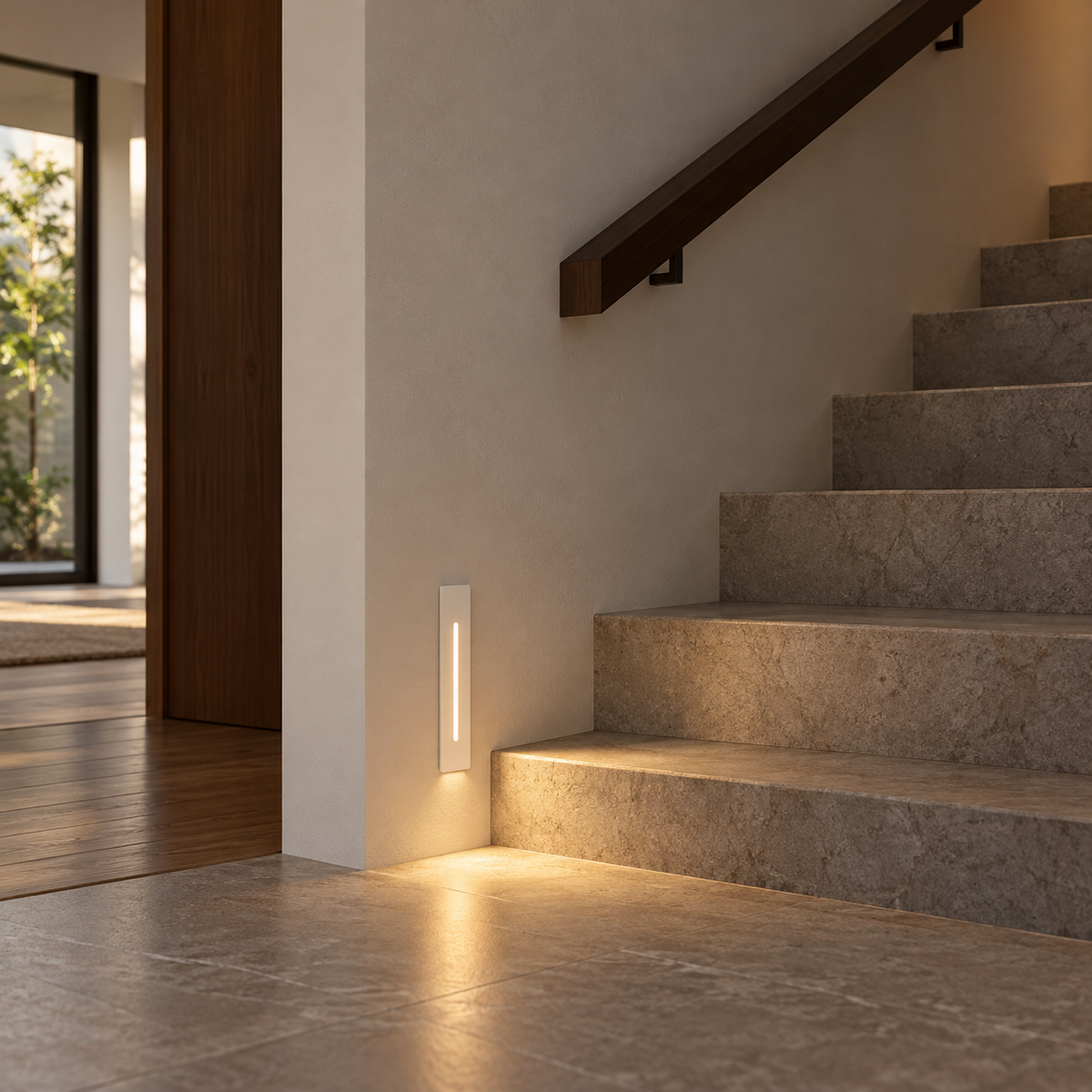

Vertical slim-slot faceplate. Designed for low-level wayfinding beside stairs, corridors and circulation routes.
- Installation: Recessed.
- Colour temperature: choose 3000K warm white, 4000K neutral white or 6000K cool white.
- Supply: 100–260V.
- IP65 versions: suitable for outdoor installation when correctly fitted and sealed.
- Standard and sensor versions are separate configurations. Sensor versions listed with 1–3m detection, 120° detection angle and 25–35 second on-time; select the required version.
Configurations and dimensions
| Configuration | Power | Rating | Body (mm) | Cut-out / recess (mm) |
|---|---|---|---|---|
| KF020-STD · Standard | 3W | IP65 | 185 × 40 × 44 | 170 × 33 × 41 |
| KF020-SENSOR · Motion sensor | 3W | IP65 | 185 × 40 × 44 | 170 × 33 × 41 |
| KXF020-STD · Standard | 3W | IP65 | 105 × 40 × 48 | 86 × 32 × 44 |
| KXF020-SENSOR · Motion sensor | 3W | IP65 | 105 × 40 × 48 | 86 × 32 × 44 |
Materials and light source
| Configuration | Materials | LED source |
|---|---|---|
| KF020-STD · Standard | Die-cast aluminium | Cree XPE |
| KF020-SENSOR · Motion sensor | Die-cast aluminium | Cree XPE |
| KXF020-STD · Standard | Die-cast aluminium | Cree XPE |
| KXF020-SENSOR · Motion sensor | Die-cast aluminium | Cree XPE |
A dedicated back box is supplied only for configurations specified with one; installation details vary by model.
Have the selected model and recess dimensions checked by the installer before cutting. LED light source specified in the supplier quotation. Lead time: 15–20 days.
Shipping & Returns
Shipping & Returns
Please refer to this product’s description for lead time and availability. Contact us if you need a specific delivery date.
We do not accept change-of-mind or incorrect-selection returns. Please report damaged, defective or incorrect items within 14 days of delivery; statutory rights remain unaffected.
Contact: info@koyama.store | WhatsApp +65 8965 2378.
Read our full Returns & Exchanges policy
Dimensions
Dimensions
Dimensions vary by model and selected option. Refer to the model specifications and dimension drawings in this product’s description and images, matching them to your selected option. Body size and ceiling cut-out are different measurements. Confirm fitting dimensions, mounting method and installation clearance with your installer before installation. If a required measurement is missing, contact KOYAMA before ordering or cutting the ceiling.
Care Instructions
Care Instructions
Switch off the power and allow the fitting to cool before cleaning. Gently remove dust with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents, spray liquids onto the fitting, or allow moisture into electrical components. Do not dismantle drivers, controls or sealed parts. Follow the product’s installation instructions; electrical servicing should be carried out by a qualified installer.
