KOYAMA HIGASHIKAWA Recessed Step Light
KOYAMA HIGASHIKAWA Recessed Step Light
Couldn't load pickup availability
HIGASHIKAWA Recessed Step Light

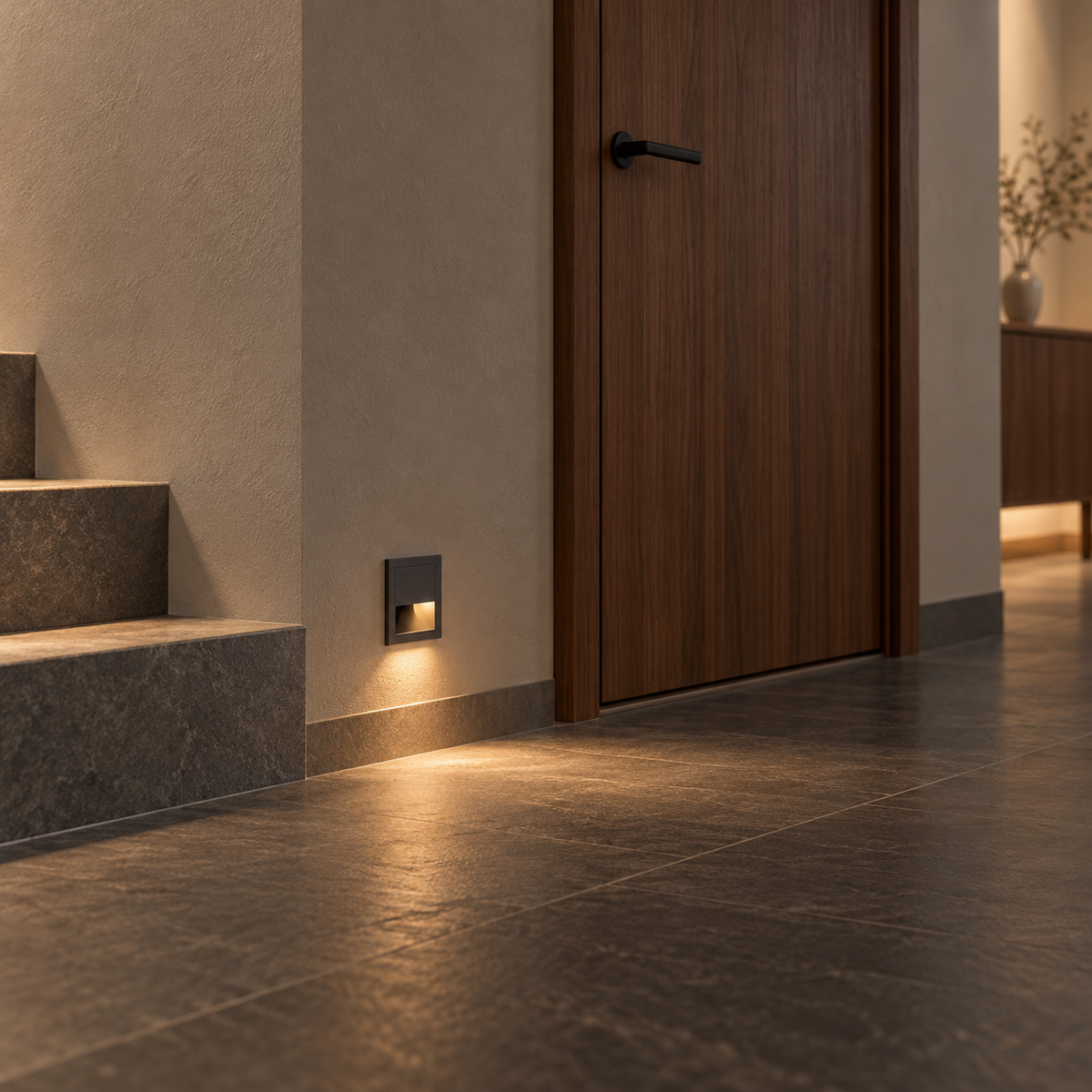

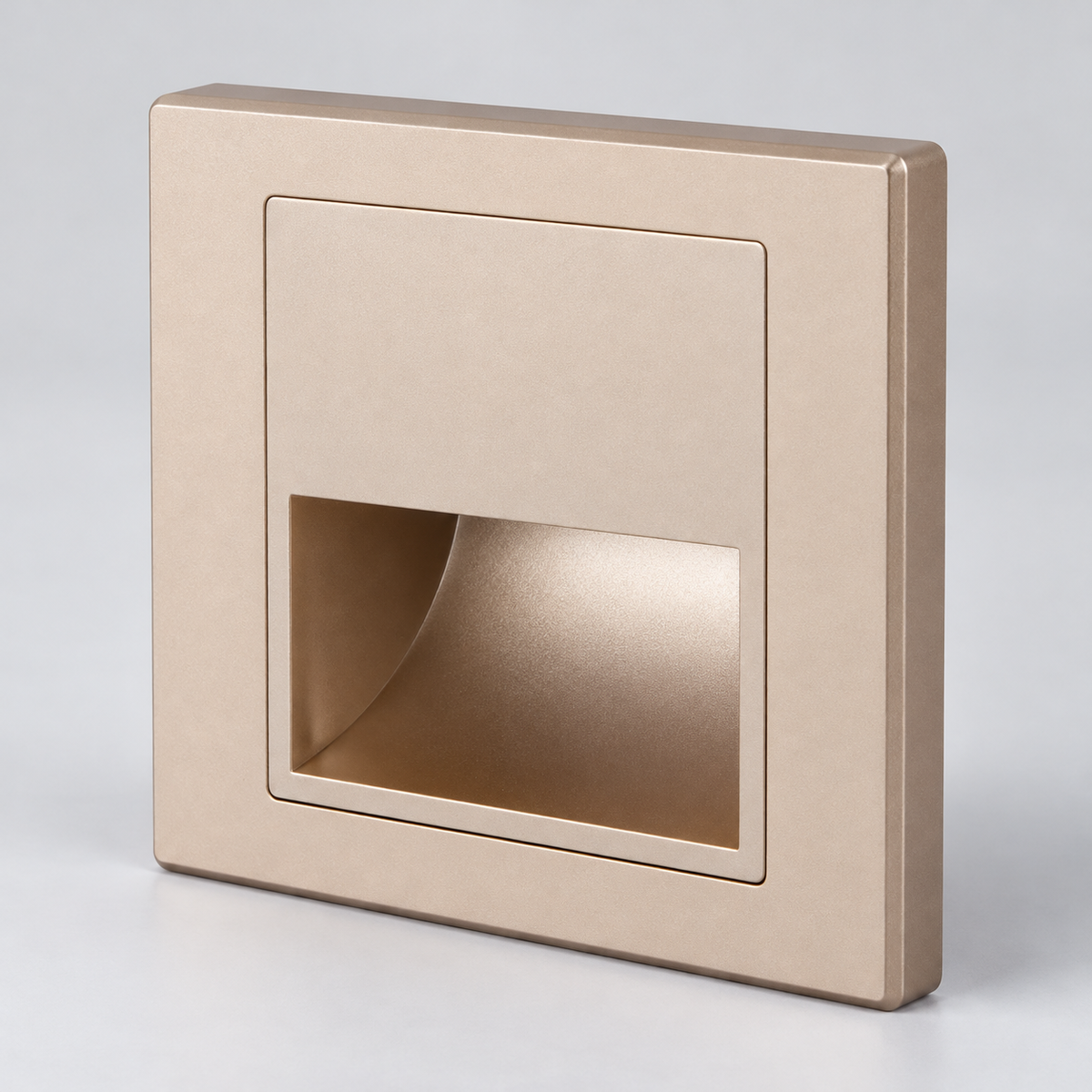

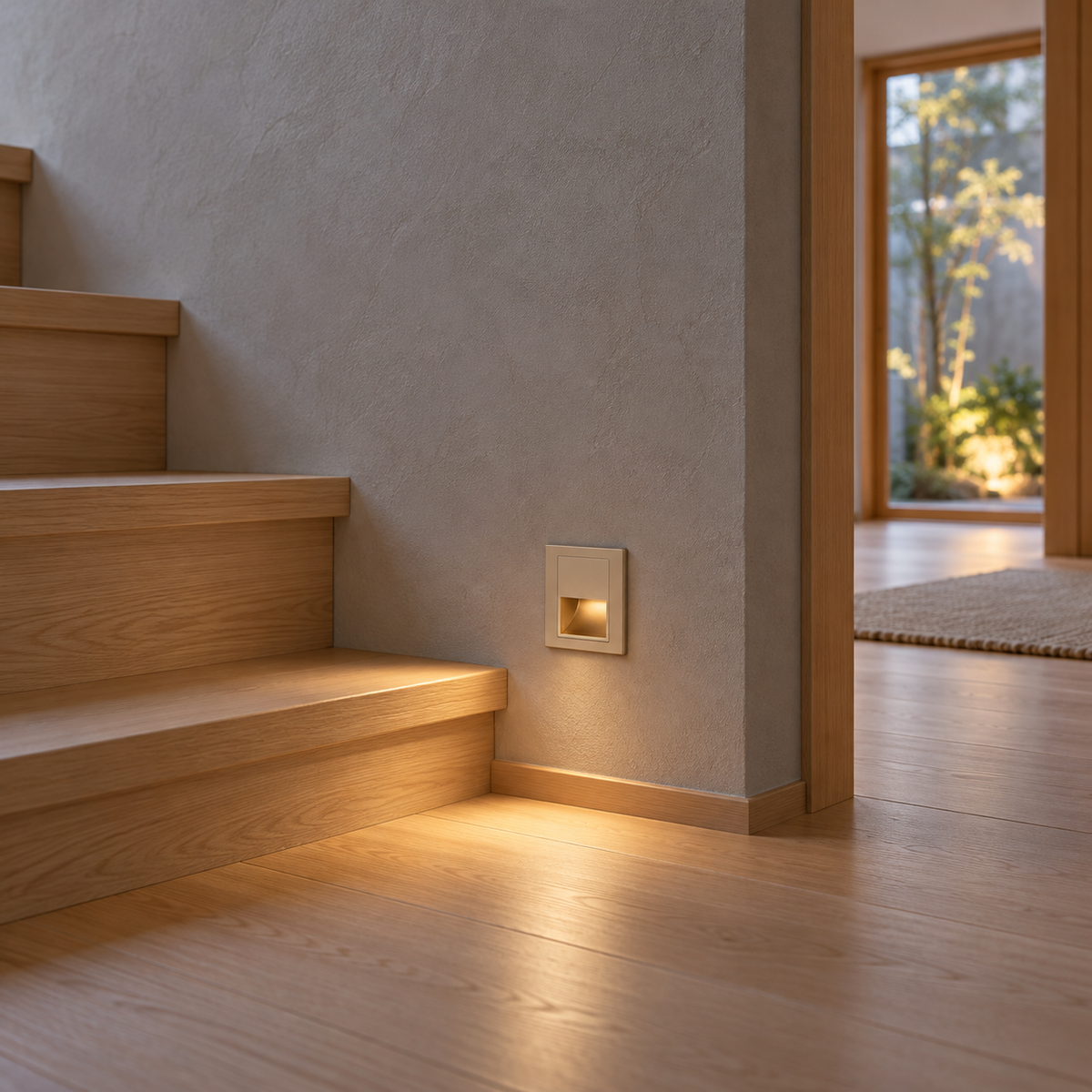

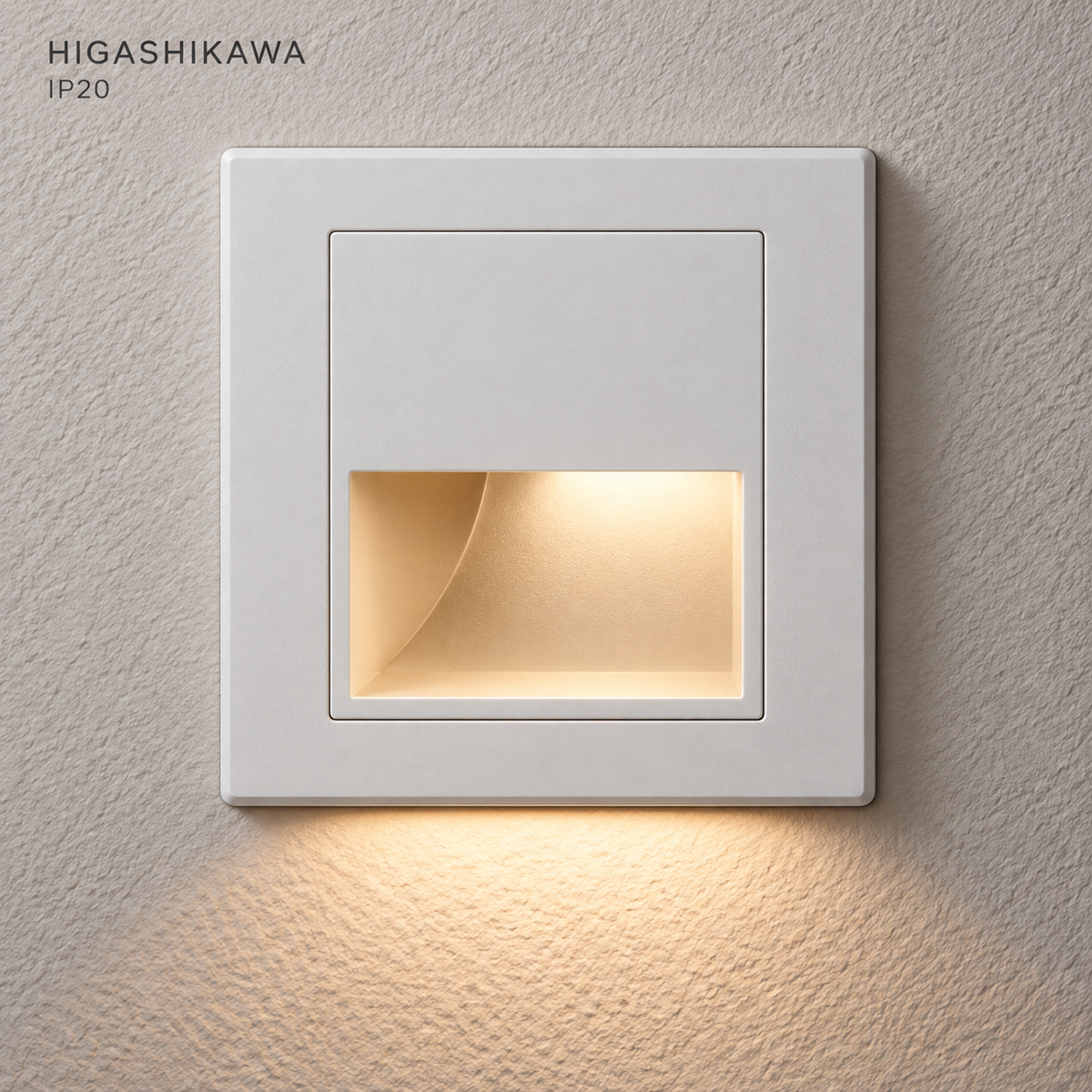

Open aperture with steel mounting frame. Designed for low-level wayfinding beside stairs, corridors and circulation routes.
- Installation: Recessed.
- Colour temperature: choose 3000K warm white, 4000K neutral white or 6000K cool white.
- Supply: 100–260V.
- IP20 versions: indoor use only.
- Standard and sensor versions are separate configurations. Sensor versions listed with 1–3m detection, 120° detection angle and 25–35 second on-time; select the required version.
- Light-sensor version: supplier threshold 20–30 lux.
Configurations and dimensions
| Configuration | Power | Rating | Body (mm) | Cut-out / recess (mm) |
|---|---|---|---|---|
| KA-STD · Standard | 1.5W | IP20 | 86 × 86 × 26 | 80 × 80 × 50 |
| KXA-SENSOR · Motion sensor (small detector) | 1.5W | IP20 | 86 × 86 × 26 | 80 × 80 × 50 |
| KA-SENSOR · Motion sensor | 1.5W | IP20 | 86 × 86 × 26 | 80 × 80 × 50 |
| KA-RADAR · Radar sensor | 1.5W | IP20 | 86 × 86 × 26 | 80 × 80 × 50 |
| KA-PHOTO · Light sensor | 1.5W | IP20 | 86 × 86 × 26 | 80 × 80 × 50 |
Materials and light source
| Configuration | Materials | LED source |
|---|---|---|
| KA-STD · Standard | PC+Steel frame | SMD2835 |
| KXA-SENSOR · Motion sensor (small detector) | PC+Steel frame | SMD2835 |
| KA-SENSOR · Motion sensor | PC+Steel frame | SMD2835 |
| KA-RADAR · Radar sensor | PC+Steel frame | SMD2835 |
| KA-PHOTO · Light sensor | Steel frame+PC | SMD2835 |
Have the selected model and recess dimensions checked by the installer before cutting. LED light source specified in the supplier quotation. Lead time: 15–20 days.
Shipping & Returns
Shipping & Returns
Please refer to this product’s description for lead time and availability. Contact us if you need a specific delivery date.
We do not accept change-of-mind or incorrect-selection returns. Please report damaged, defective or incorrect items within 14 days of delivery; statutory rights remain unaffected.
Contact: info@koyama.store | WhatsApp +65 8965 2378.
Read our full Returns & Exchanges policy
Dimensions
Dimensions
Dimensions vary by model and selected option. Refer to the model specifications and dimension drawings in this product’s description and images, matching them to your selected option. Body size and ceiling cut-out are different measurements. Confirm fitting dimensions, mounting method and installation clearance with your installer before installation. If a required measurement is missing, contact KOYAMA before ordering or cutting the ceiling.
Care Instructions
Care Instructions
Switch off the power and allow the fitting to cool before cleaning. Gently remove dust with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents, spray liquids onto the fitting, or allow moisture into electrical components. Do not dismantle drivers, controls or sealed parts. Follow the product’s installation instructions; electrical servicing should be carried out by a qualified installer.
