KAMIKITA Round Diffused Recessed Downlight

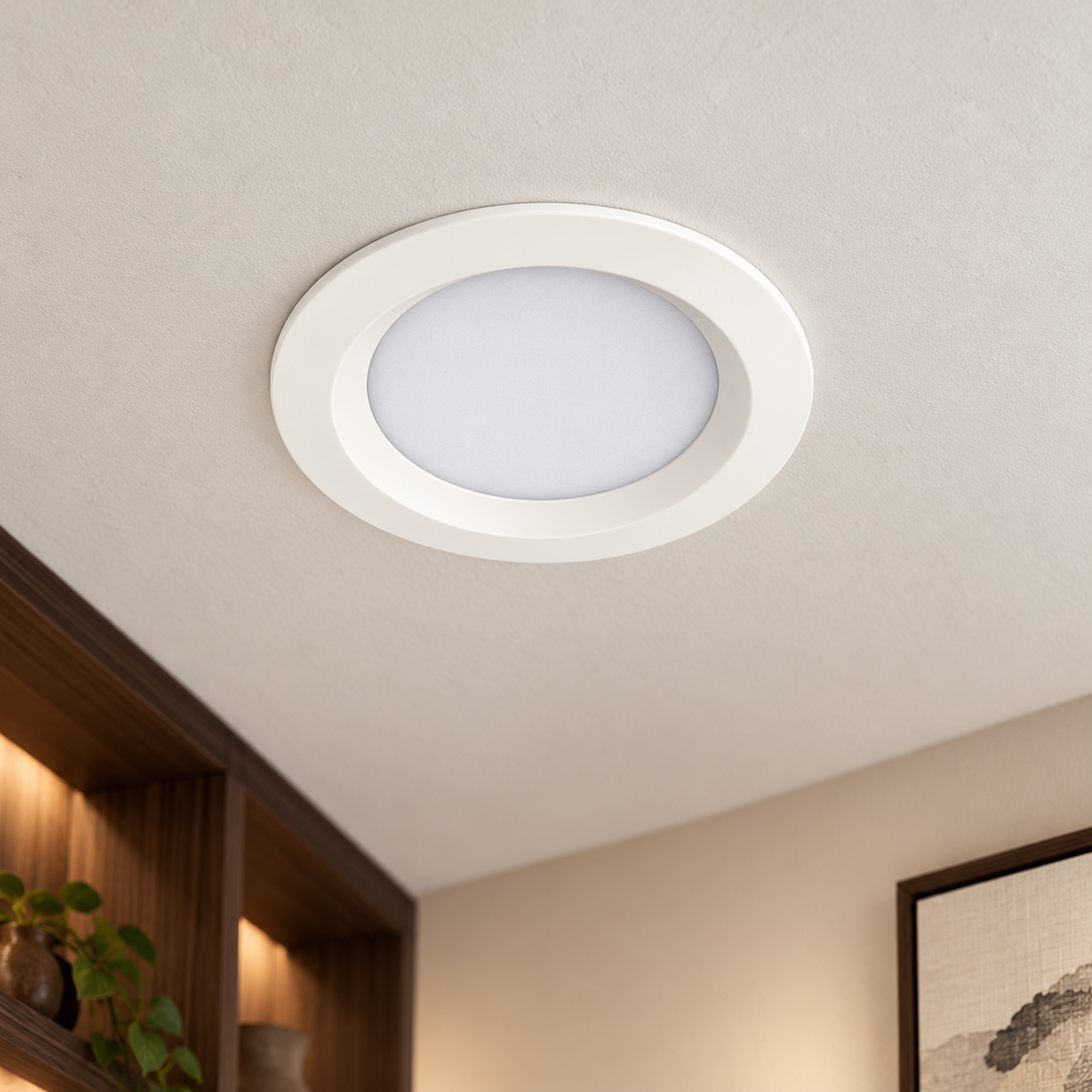

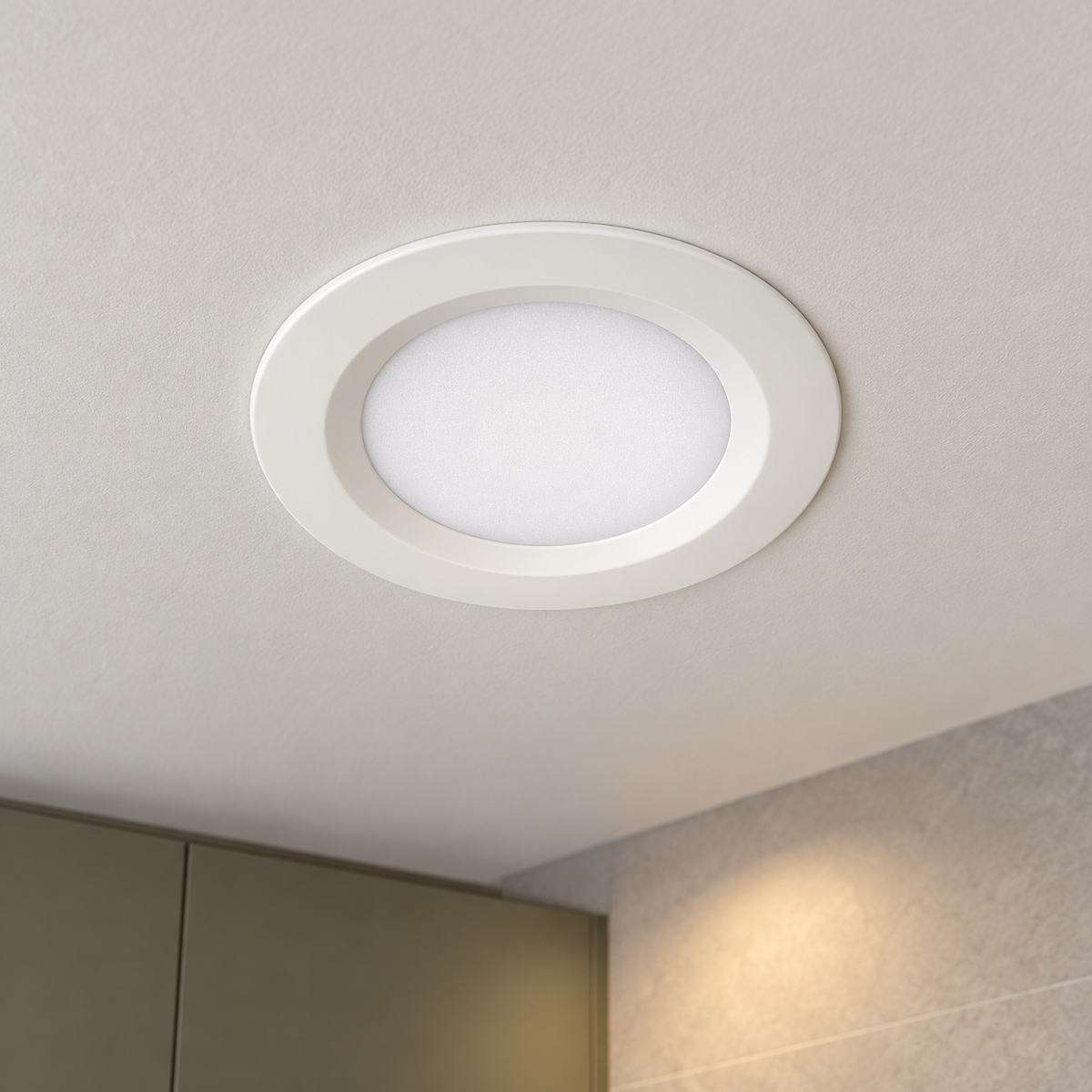

A white circular trim and opal diffuser provide a clean, understated ceiling finish for general lighting. The black finned body sits above the ceiling, retained by spring clips.
Specifications

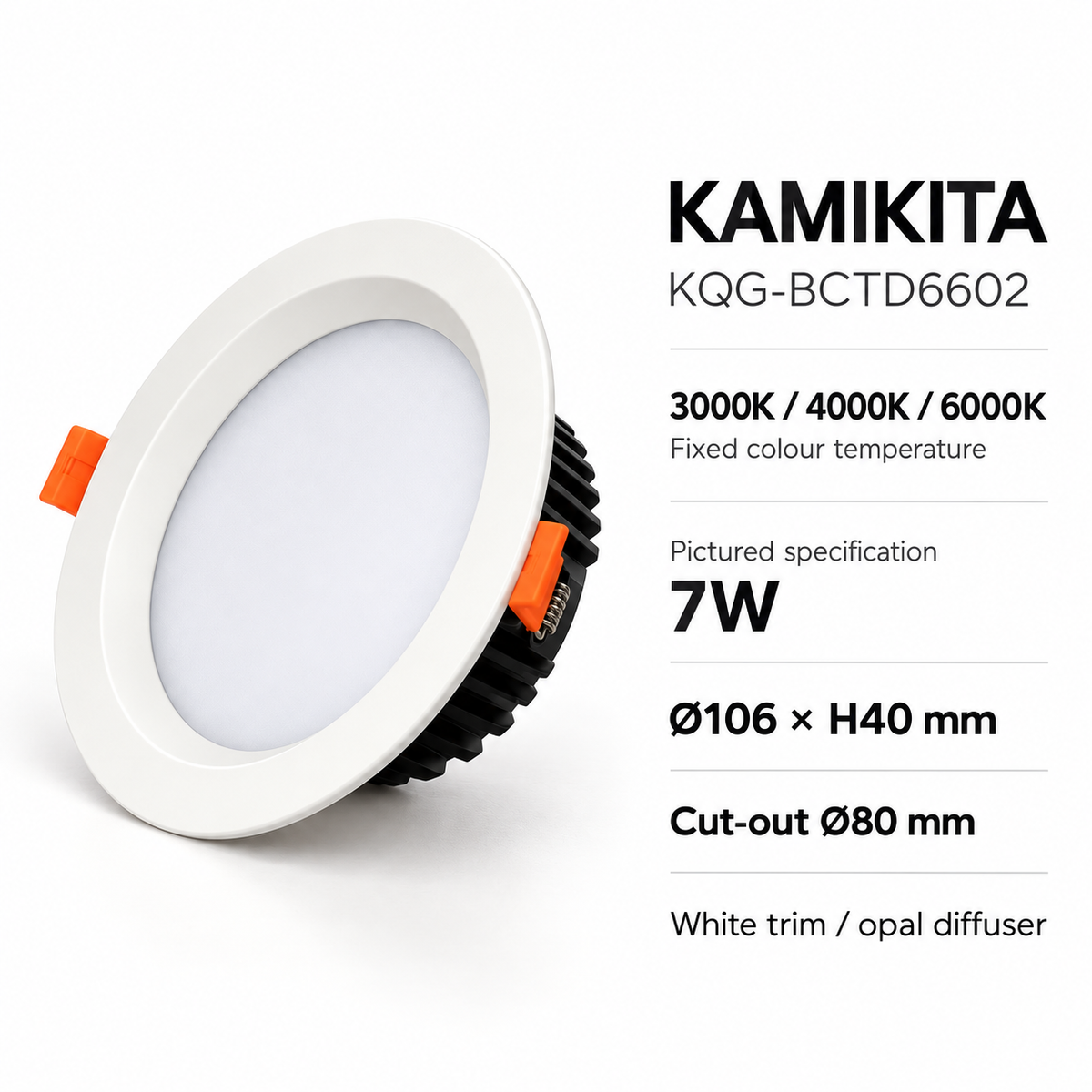

Model: KQG-BCTD6602. Standard pictured finish: White trim / opal diffuser. Integrated LED light source.
| Power | Outer diameter | Height | Ceiling cut-out |
|---|---|---|---|
| 5W | 100mm | 40mm | 70mm |
| 7W | 106mm | 40mm | 80mm |
| 9W | 115mm | 43mm | 90mm |
| 12W | 140mm | 80mm | 110mm |
| 15W | 180mm | 55mm | 145mm |
| 18W | 190mm | 55mm | 160mm |
| 24W | 230mm | 60mm | 190mm |
Light options
Choose one fixed colour temperature:3000K warm white,4000K neutral white or6000K daylight.
Installation
Recessed ceiling installation with spring retainers. Select the cut-out size for your chosen power before preparing the ceiling opening. Dimensions are approximate; verify the delivered fixture before cutting. Arrange installation by a qualified electrician.
Dimming compatibility, driver configuration and ingress-protection rating are not specified for the quoted configuration.
Safety

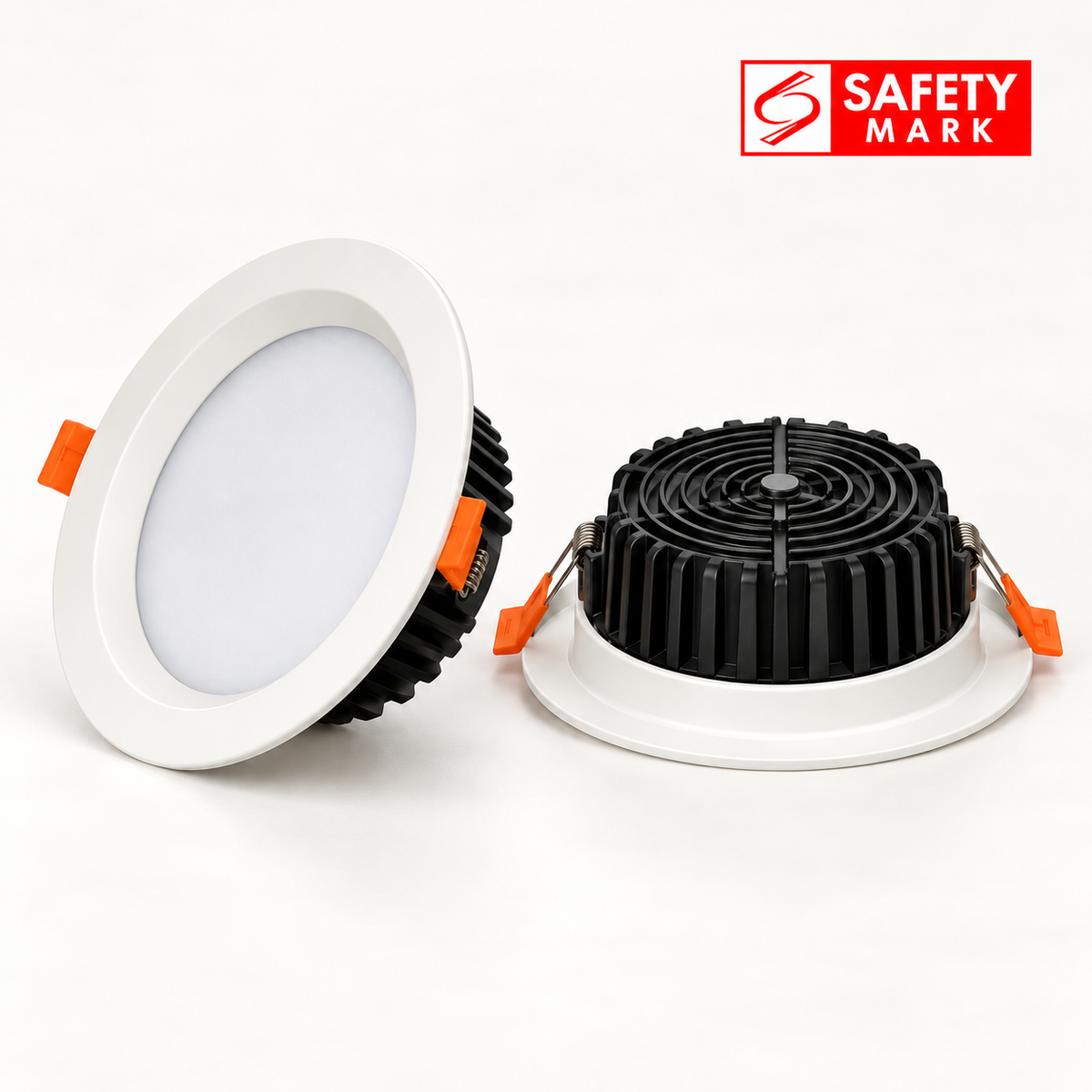

SAFETY Mark certified.
Delivery
Lead time:15–20 days.
Shipping & Returns
Shipping & Returns
Please refer to this product’s description for lead time and availability. Contact us if you need a specific delivery date.
We do not accept change-of-mind or incorrect-selection returns. Please report damaged, defective or incorrect items within 14 days of delivery; statutory rights remain unaffected.
Contact: info@koyama.store | WhatsApp +65 8965 2378.
Read our full Returns & Exchanges policy
Dimensions
Dimensions
Dimensions vary by model and selected option. Refer to the model specifications and dimension drawings in this product’s description and images, matching them to your selected option. Body size and ceiling cut-out are different measurements. Confirm fitting dimensions, mounting method and installation clearance with your installer before installation. If a required measurement is missing, contact KOYAMA before ordering or cutting the ceiling.
Care Instructions
Care Instructions
Switch off the power and allow the fitting to cool before cleaning. Gently remove dust with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents, spray liquids onto the fitting, or allow moisture into electrical components. Do not dismantle drivers, controls or sealed parts. Follow the product’s installation instructions; electrical servicing should be carried out by a qualified installer.
