MATSUYAMA-R Recessed Downlight
MATSUYAMA-R Recessed Downlight
Couldn't load pickup availability
MATSUYAMA-R Recessed Downlight

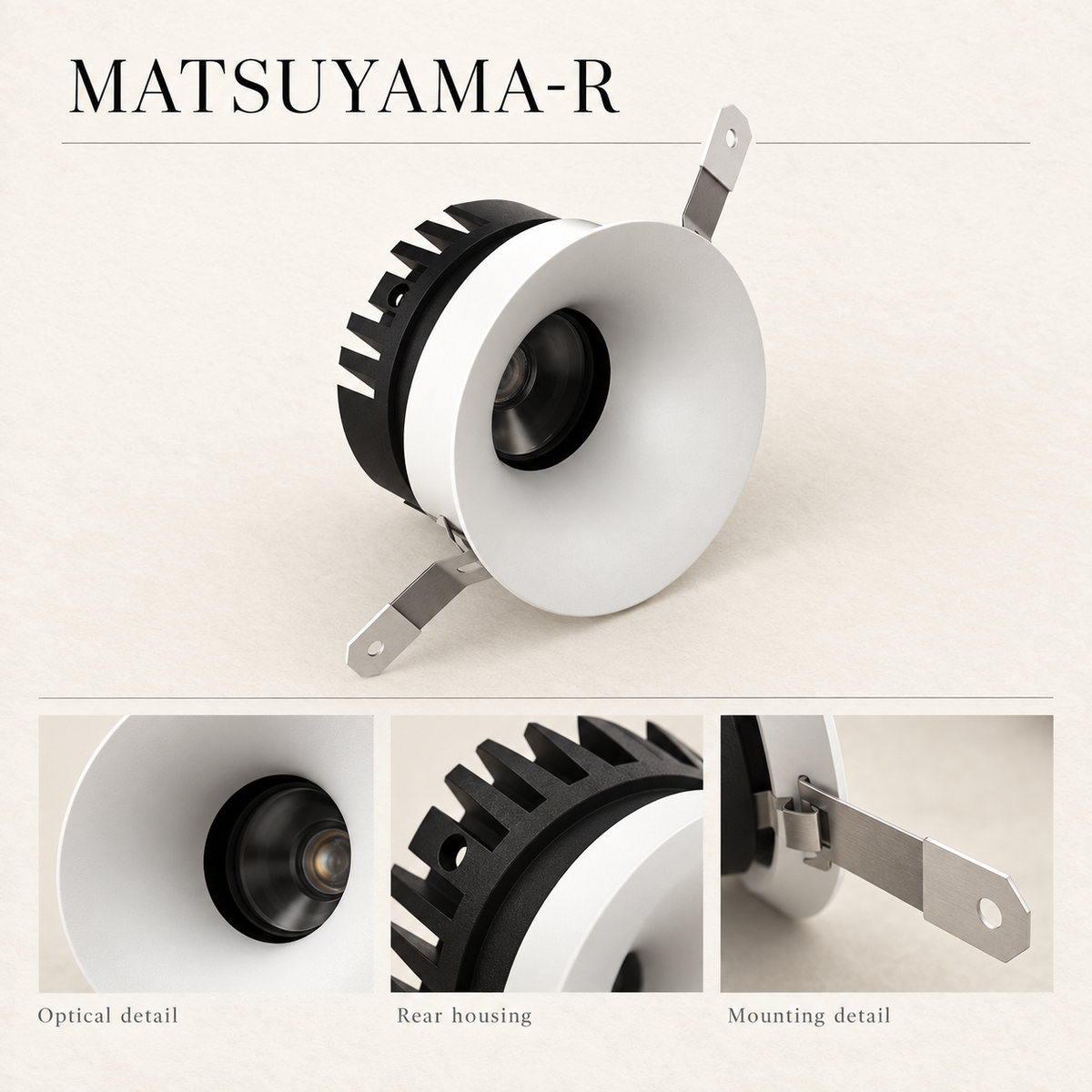

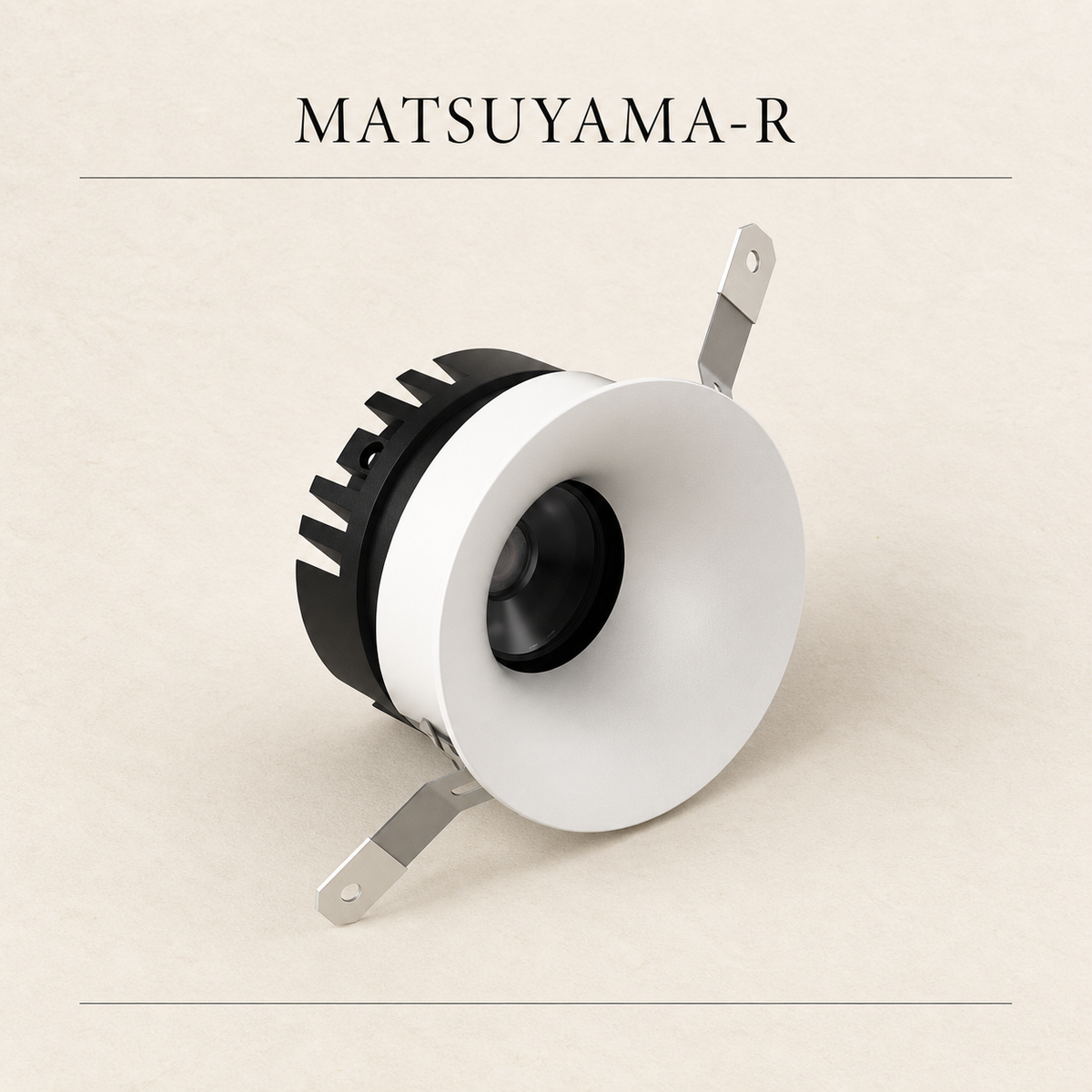

A round recessed downlight with a softly curved white face around the recessed optic. Its three body sizes retain a consistent visual language across different ceiling openings. Use the selectable light colour and beam angle to coordinate the fitting with residential, hospitality or display interiors.
Select your specification
Choose the size and wattage, finish, then light colour and beam angle. Each wattage shown is an individual order option.

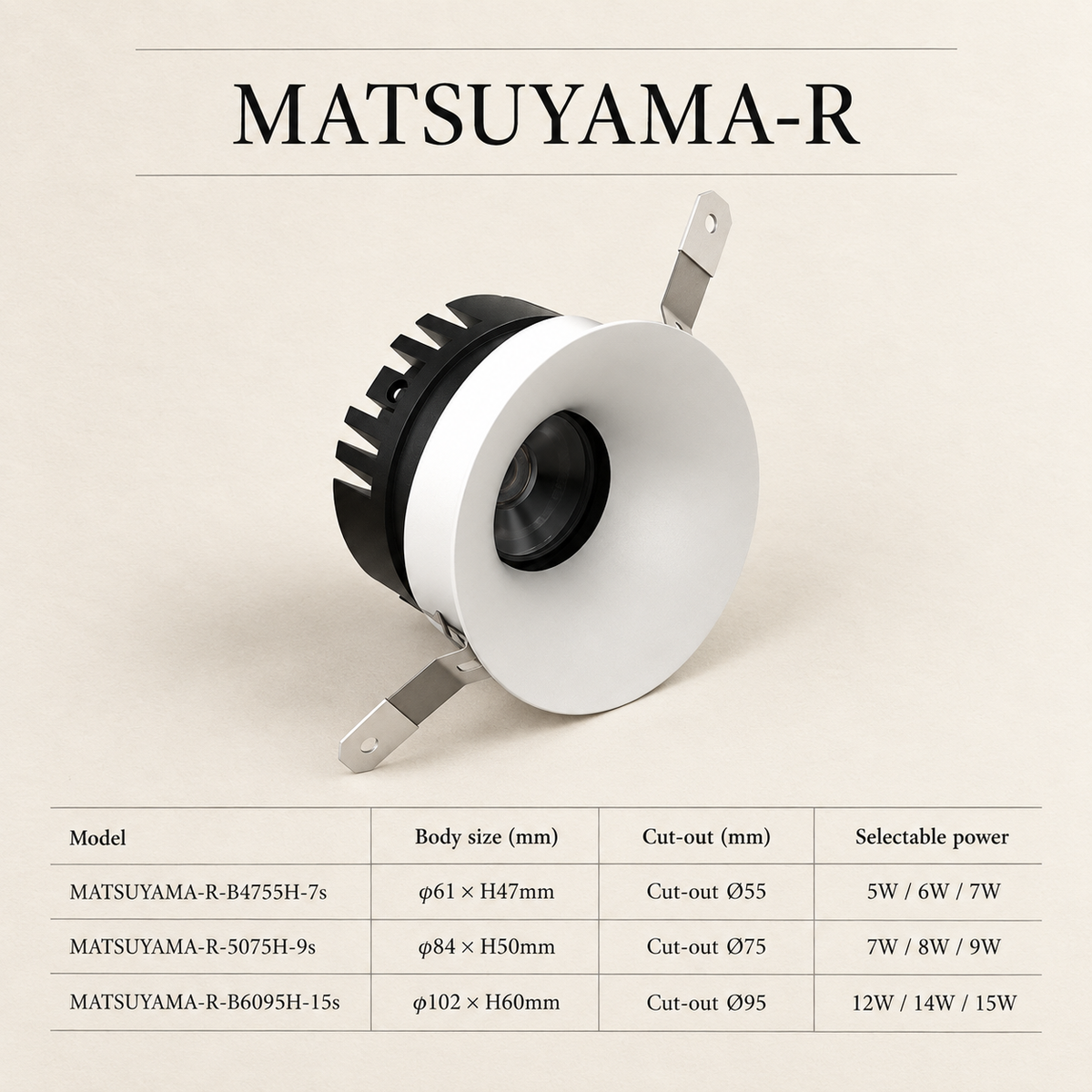

| Model remark | Body size | Cut-out | Selectable wattage |
|---|---|---|---|
| MATSUYAMA-R-B4755H-7s | Ø61 × H47 mm | Ø55 | 5W / 6W / 7W |
| MATSUYAMA-R-5075H-9s | Ø84 × H50 mm | Ø75 | 7W / 8W / 9W |
| MATSUYAMA-R-B6095H-15s | Ø102 × H60 mm | Ø95 | 12W / 14W / 15W |
Plan the lighting effect
3500K gives a gently warm atmosphere; 4000K creates a more neutral appearance. A narrower beam concentrates the accent on a smaller area, while a wider beam spreads it across more of the surface. Coordinate mounting height, spacing and aiming with the intended display or room.
Installation planning

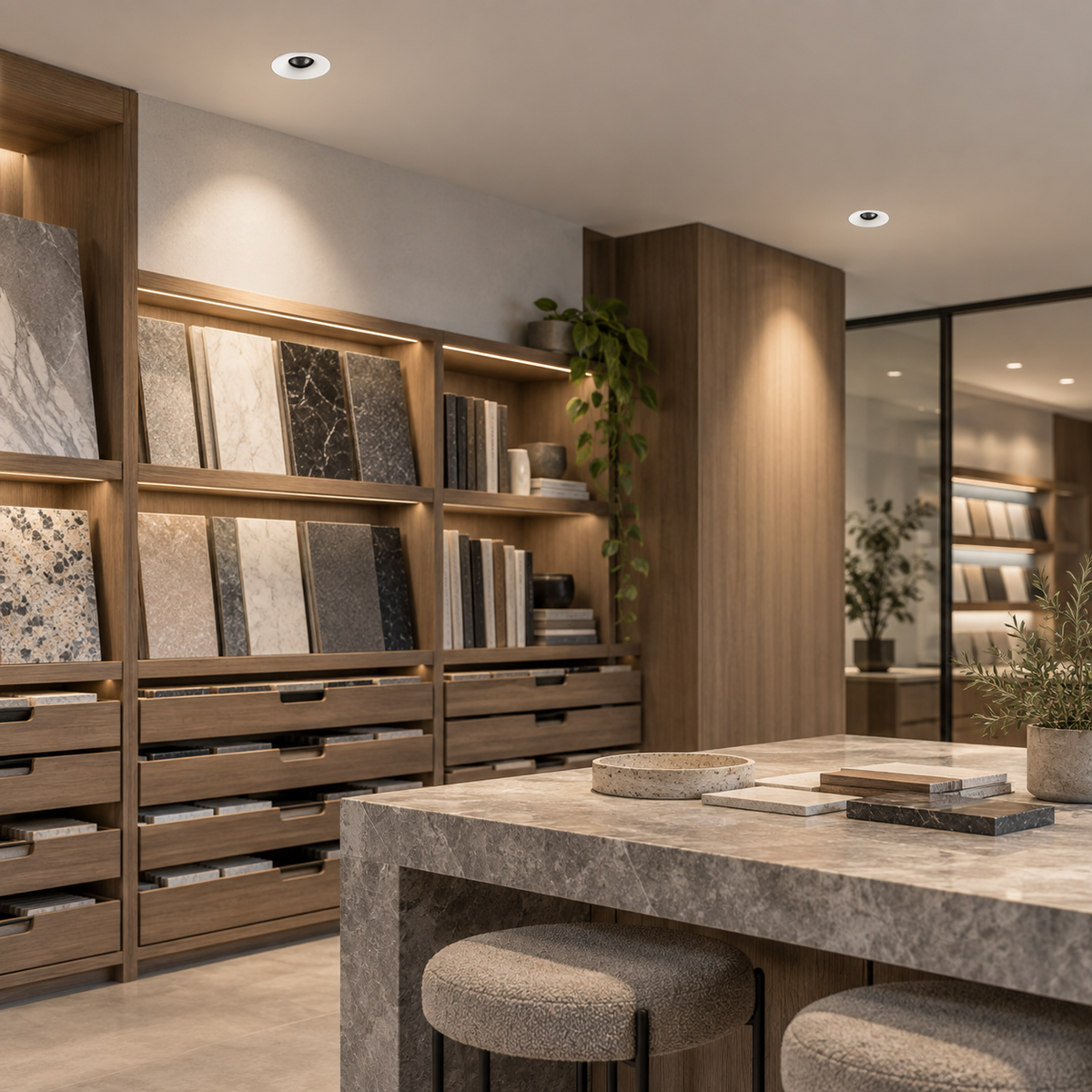

Match the ceiling opening to the selected cut-out. Allow clearance for the rear housing and electrical installation, with mounting springs concealed behind the finished surface. Product scene images illustrate an example arrangement. Share your room dimensions and intended application with KOYAMA for project advice.
Lead time: 15 days.
Shipping & Returns
Shipping & Returns
Please refer to this product’s description for lead time and availability. Contact us if you need a specific delivery date.
We do not accept change-of-mind or incorrect-selection returns. Please report damaged, defective or incorrect items within 14 days of delivery; statutory rights remain unaffected.
Contact: info@koyama.store | WhatsApp +65 8965 2378.
Read our full Returns & Exchanges policy
Dimensions
Dimensions
Dimensions vary by model and selected option. Refer to the model specifications and dimension drawings in this product’s description and images, matching them to your selected option. Body size and ceiling cut-out are different measurements. Confirm fitting dimensions, mounting method and installation clearance with your installer before installation. If a required measurement is missing, contact KOYAMA before ordering or cutting the ceiling.
Care Instructions
Care Instructions
Switch off the power and allow the fitting to cool before cleaning. Gently remove dust with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents, spray liquids onto the fitting, or allow moisture into electrical components. Do not dismantle drivers, controls or sealed parts. Follow the product’s installation instructions; electrical servicing should be carried out by a qualified installer.
