NODA2 Recessed Spotlight

NODA2 Recessed Spotlight

$43.00 SGD
$43.00 SGD
Sale Sold out
Size
Wattage
Beam angle

NODA2 Recessed Spotlight

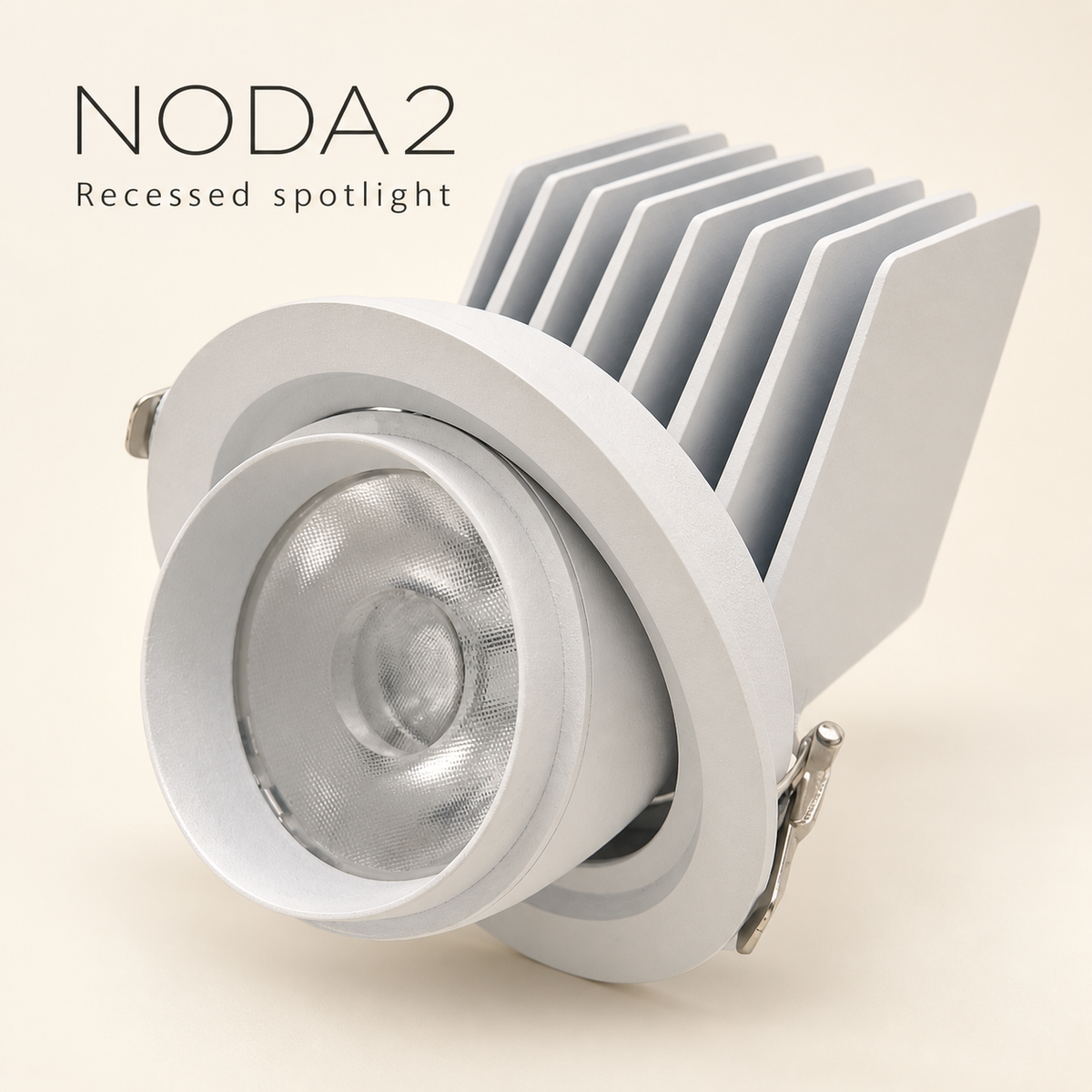

A round recessed spotlight with an adjustable optical assembly. Four body specifications allow the fitting to be coordinated with the available ceiling space and the scale of the lighting layout.

Select your specification

Choose the body size and trim shape, then wattage and beam angle. The fitting has a white finish as shown in the product reference.

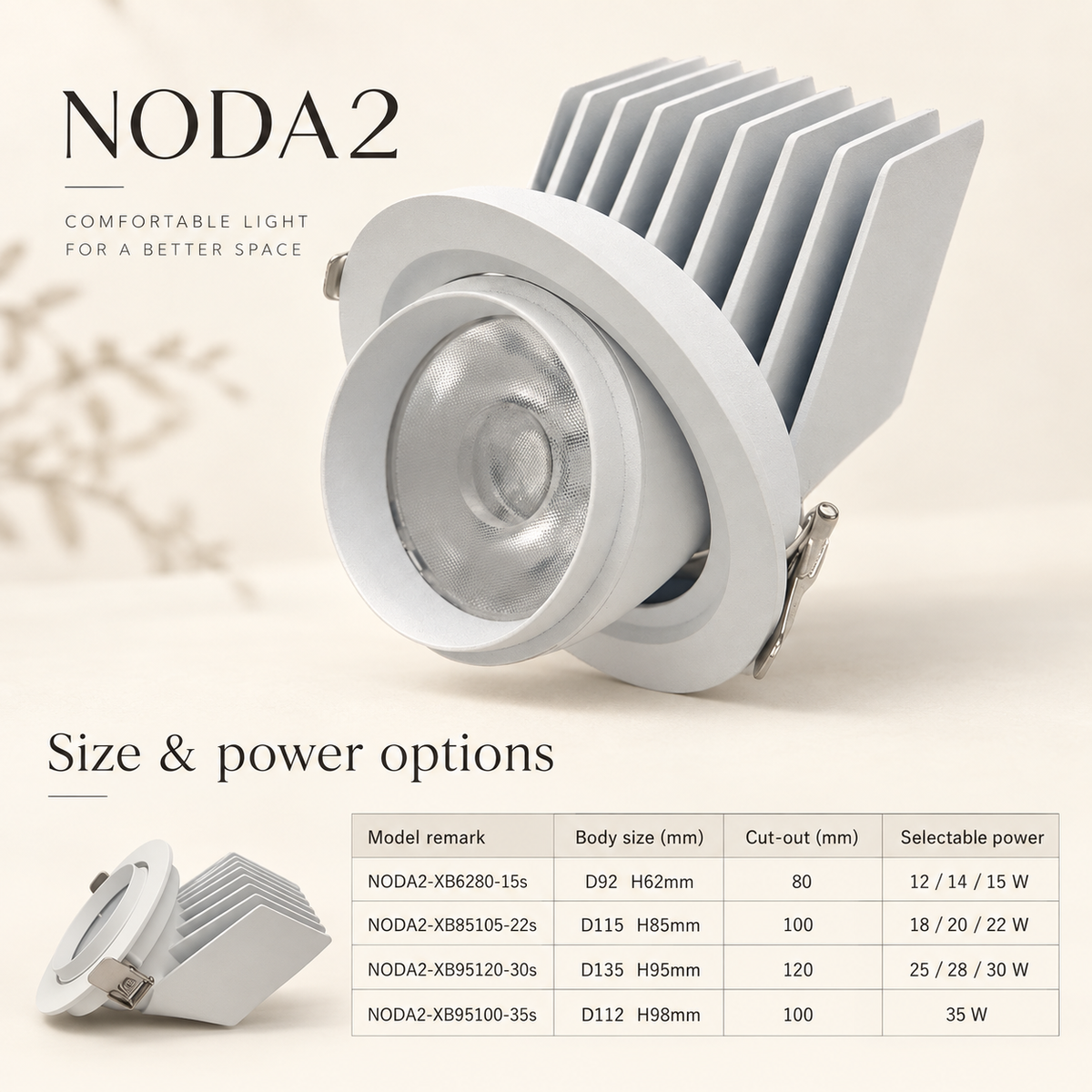

Model remark Body size Cut-out (mm) Selectable wattage
NODA2-XB6280-15s Round Ø92 × 62 mm 80 12W / 14W / 15W
NODA2-XB85105-22s Round Ø115 × 85 mm 100 18W / 20W / 22W
NODA2-XB95120-30s Round Ø135 × 95 mm 120 25W / 28W / 30W
NODA2-XB95100-35s Round Ø112 × 98 mm 100 35W

Planning your installation

Match the ceiling opening to the selected cut-out. Allow clearance above the ceiling for the rear housing and installation. Coordinate mounting height, aiming direction and beam angle with the surface being illuminated. Each wattage is an individual order option.

For a project proposal, share your room dimensions, ceiling height and intended application with KOYAMA.

Lead time: 15 days.
