NODA5 Recessed Spotlight
NODA5 Recessed Spotlight
Couldn't load pickup availability

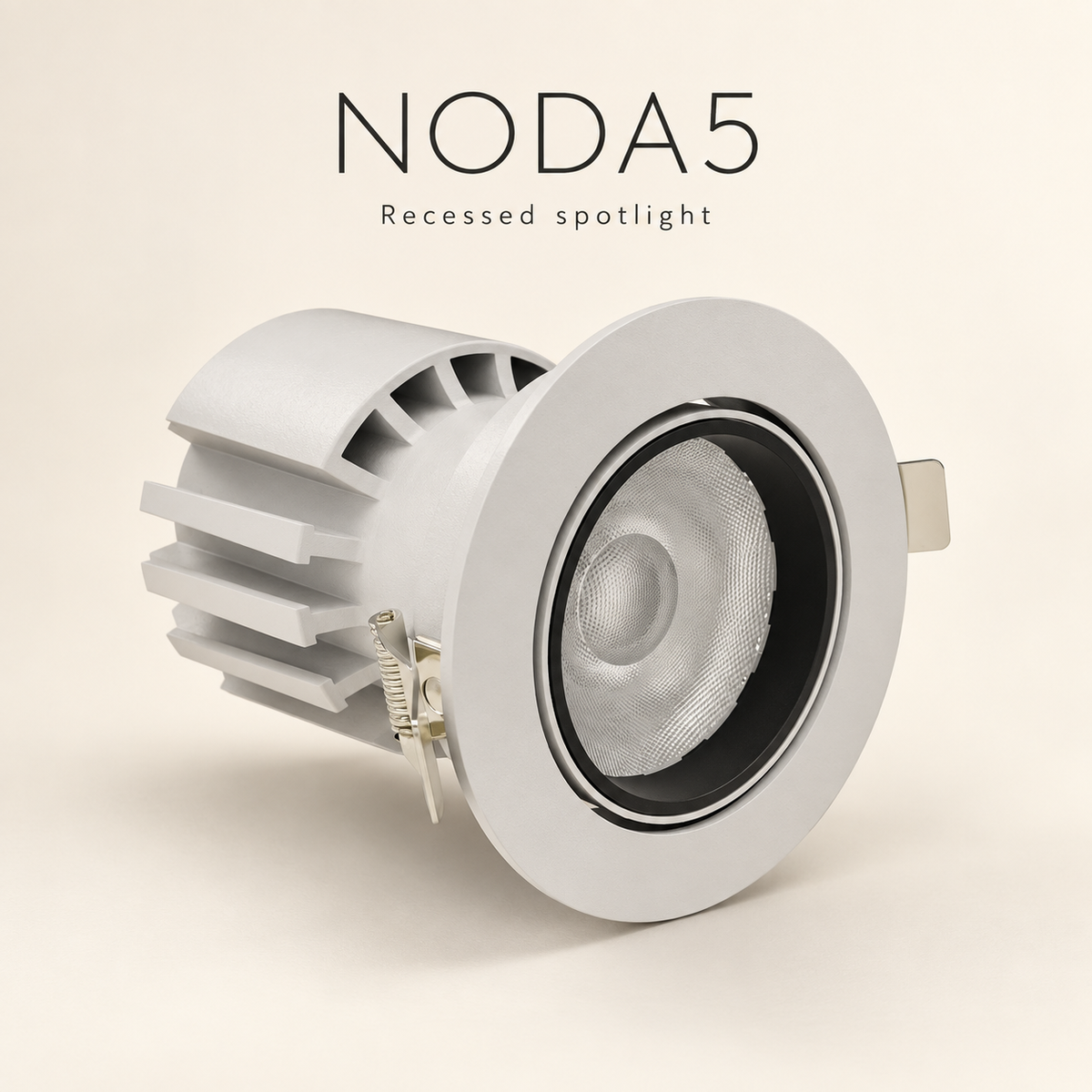

NODA5 Recessed Spotlight

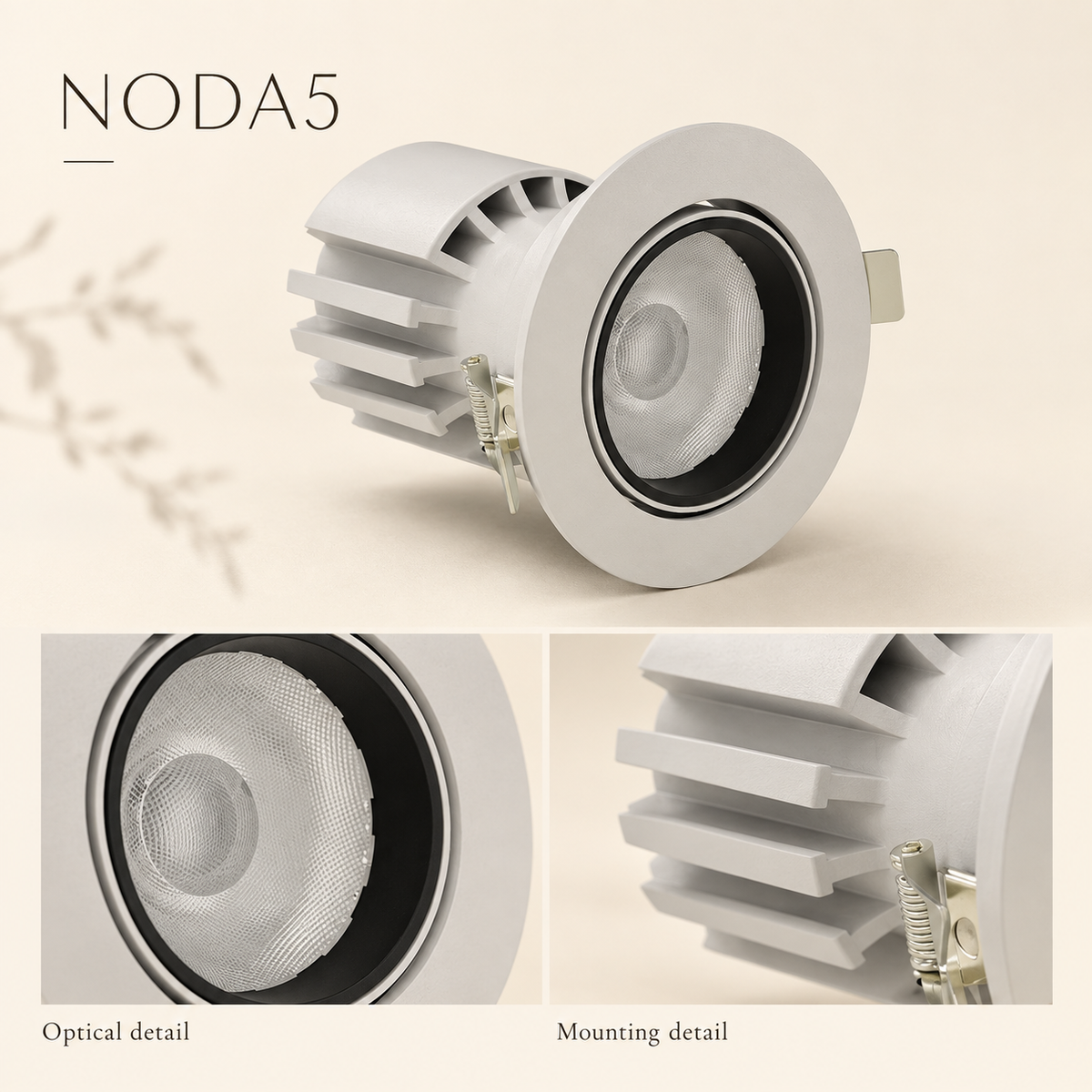

A round recessed spotlight combining a white outer trim with a dark inner optical bezel. Two body sizes and individually selectable wattages support a clear specification for focused interior lighting.
Select your specification
Choose the body size and trim shape, then wattage and beam angle. The fitting has a white finish as shown in the product reference.

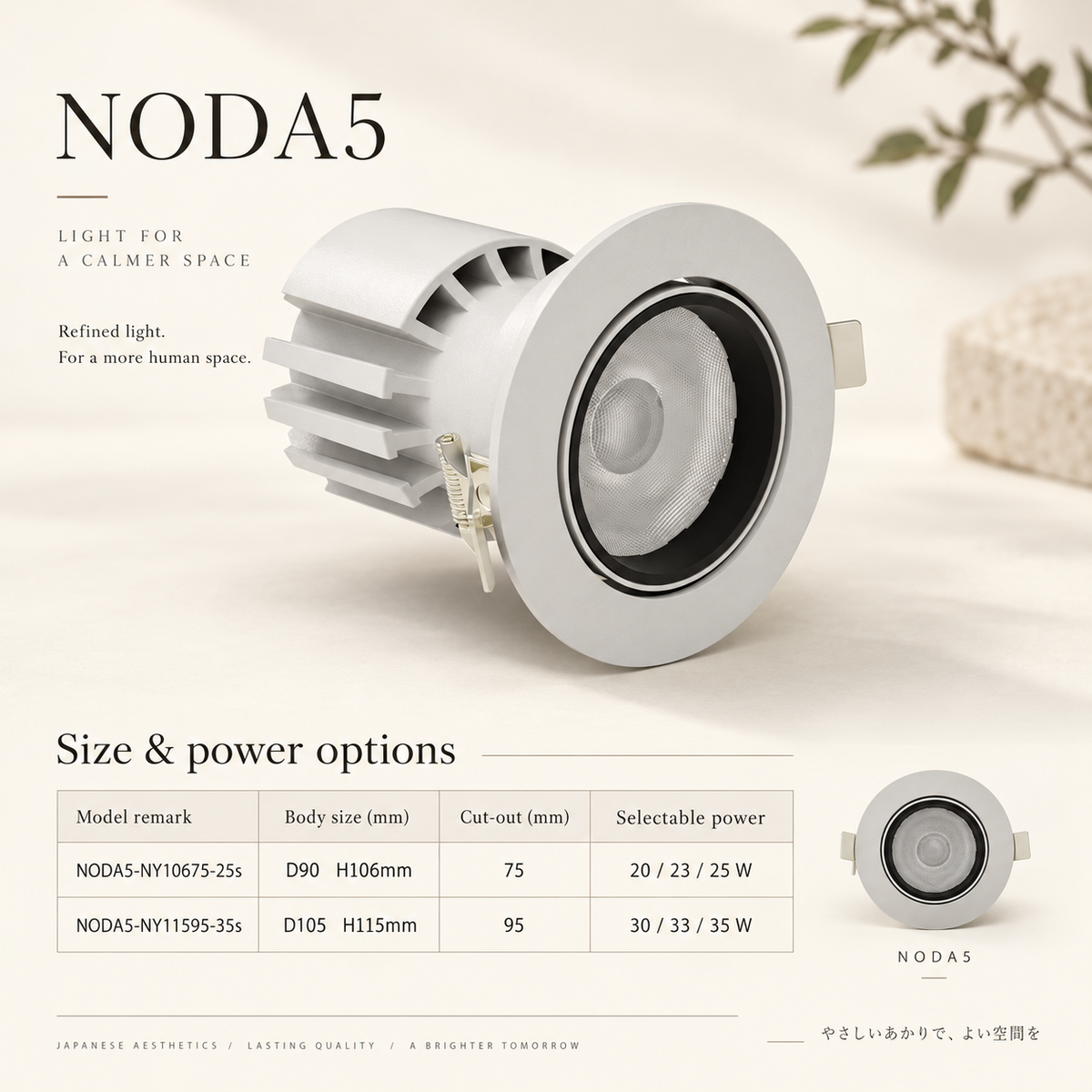

| Model remark | Body size | Cut-out (mm) | Selectable wattage |
|---|---|---|---|
| NODA5-NY10675-25s | Round Ø90 × 106 mm | 75 | 20W / 23W / 25W |
| NODA5-NY11595-35s | Round Ø105 × 115 mm | 95 | 30W / 33W / 35W |
Planning your installation
Match the ceiling opening to the selected cut-out. Allow clearance above the ceiling for the rear housing and installation. Coordinate mounting height, aiming direction and beam angle with the surface being illuminated. Each wattage is an individual order option.
For a project proposal, share your room dimensions, ceiling height and intended application with KOYAMA.
Lead time: 15 days.
Shipping & Returns
Shipping & Returns
Please refer to this product’s description for lead time and availability. Contact us if you need a specific delivery date.
We do not accept change-of-mind or incorrect-selection returns. Please report damaged, defective or incorrect items within 14 days of delivery; statutory rights remain unaffected.
Contact: info@koyama.store | WhatsApp +65 8965 2378.
Read our full Returns & Exchanges policy
Dimensions
Dimensions
Dimensions vary by model and selected option. Refer to the model specifications and dimension drawings in this product’s description and images, matching them to your selected option. Body size and ceiling cut-out are different measurements. Confirm fitting dimensions, mounting method and installation clearance with your installer before installation. If a required measurement is missing, contact KOYAMA before ordering or cutting the ceiling.
Care Instructions
Care Instructions
Switch off the power and allow the fitting to cool before cleaning. Gently remove dust with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents, spray liquids onto the fitting, or allow moisture into electrical components. Do not dismantle drivers, controls or sealed parts. Follow the product’s installation instructions; electrical servicing should be carried out by a qualified installer.
