SAGA 3N Linear Lighting
SAGA 3N Linear Lighting
Couldn't load pickup availability
SAGA 3N Linear Lighting
Compact, individually defined optical cells bring a clean architectural rhythm to the ceiling. Match the number of light heads and fitting length to the area being illuminated.
Choose your configuration
Select the model and total wattage, then the light colour and available finish or optical version. Available light colours: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K. Each selection is a fixed light colour; this does not imply colour-changing control.
Models and dimensions
| Model remark | Body size (mm) | Cut-out / mounting | Total wattage |
|---|---|---|---|
| 3N-3 | L73*W32*H47.5 | L68*W25 | 4.5W |
| 3N-6 | L133*W32*H47.5 | L128*W25 | 9W |
| 3N-12 | L253*W32*H47.5 | L248*W25 | 18W |
| 3N-3T | L89*W47*H58 | L86*W38 | 4.5W |
| 3N-6T | L149*W47*H58 | L146*W38 | 9W |
| 3N-12T | L269*W47*H58 | L266*W38 | 18W |
Lighting and installation
Check the exact dimensions and mounting version before installation. Recessed housings sit above the ceiling; trimless versions require coordinated ceiling finishing. Surface-mounted models retain their visible housing. Choose only the optical options listed for your selected model.

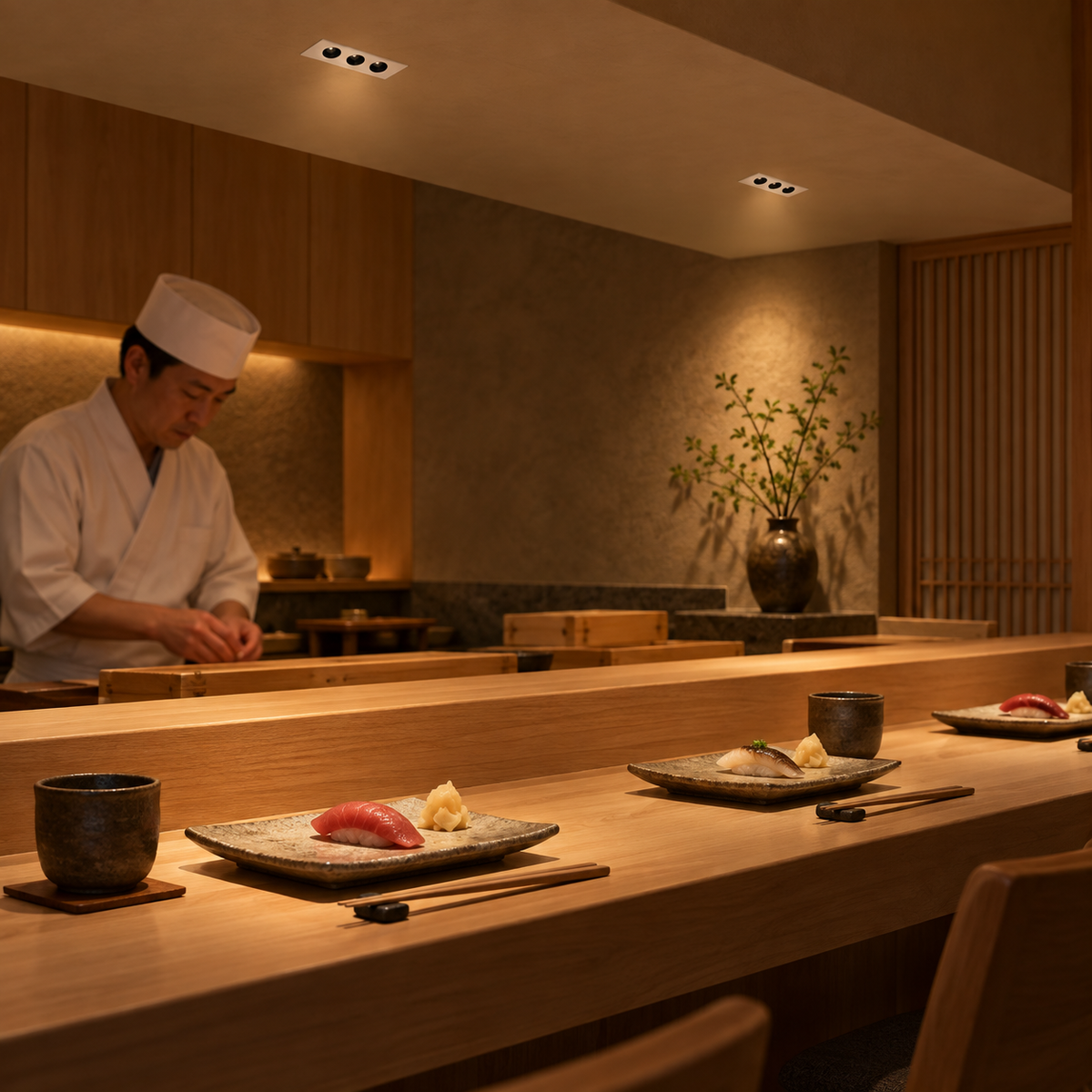

Scene images illustrate a possible interior application. The product dimensions and selected configuration determine the actual installation.
Lead time: 15 days.
