T-OGAKI Recessed Spotlight
T-OGAKI Recessed Spotlight
Couldn't load pickup availability
T-OGAKI Recessed Spotlight

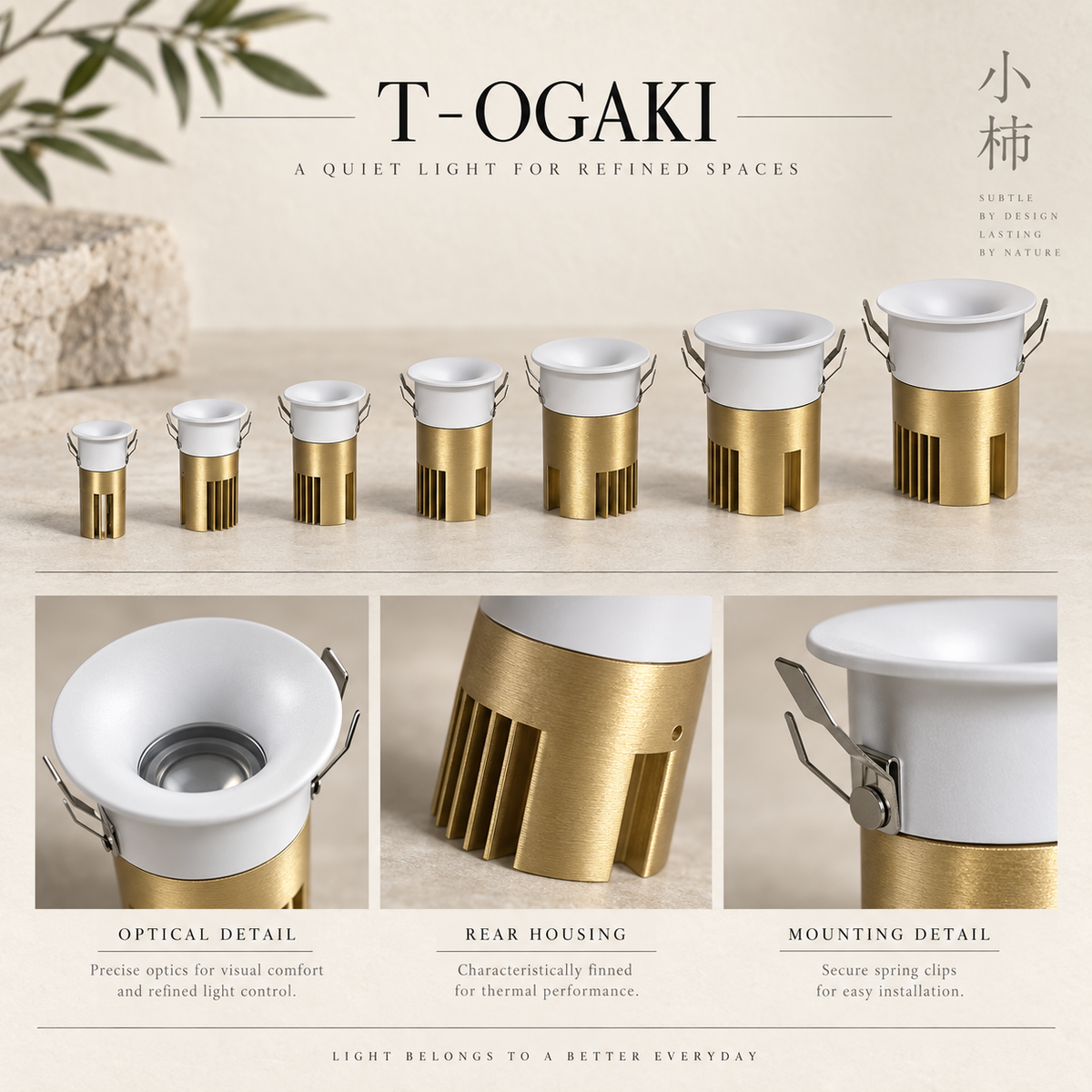

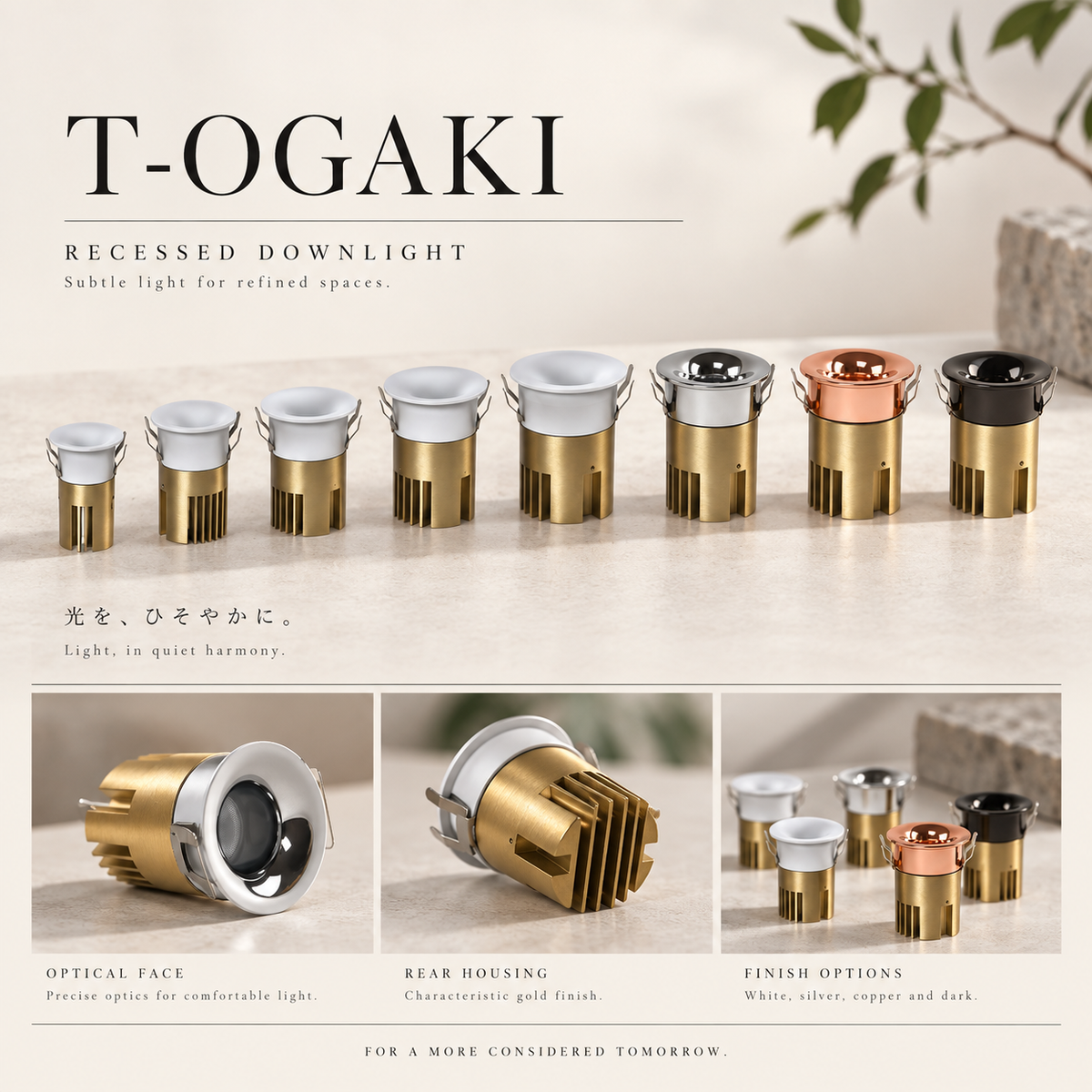

A small-aperture recessed spotlight family with a distinctive gold-coloured finned rear housing. Six body sizes cover different ceiling openings, with the cooling body hidden above the finished ceiling. Choose the visible optical finish to complement the interior palette, then select the matching wattage, light colour and beam.
Select your specification
Choose the size and wattage, finish, then light colour and beam angle. Each wattage shown is an individual order option.

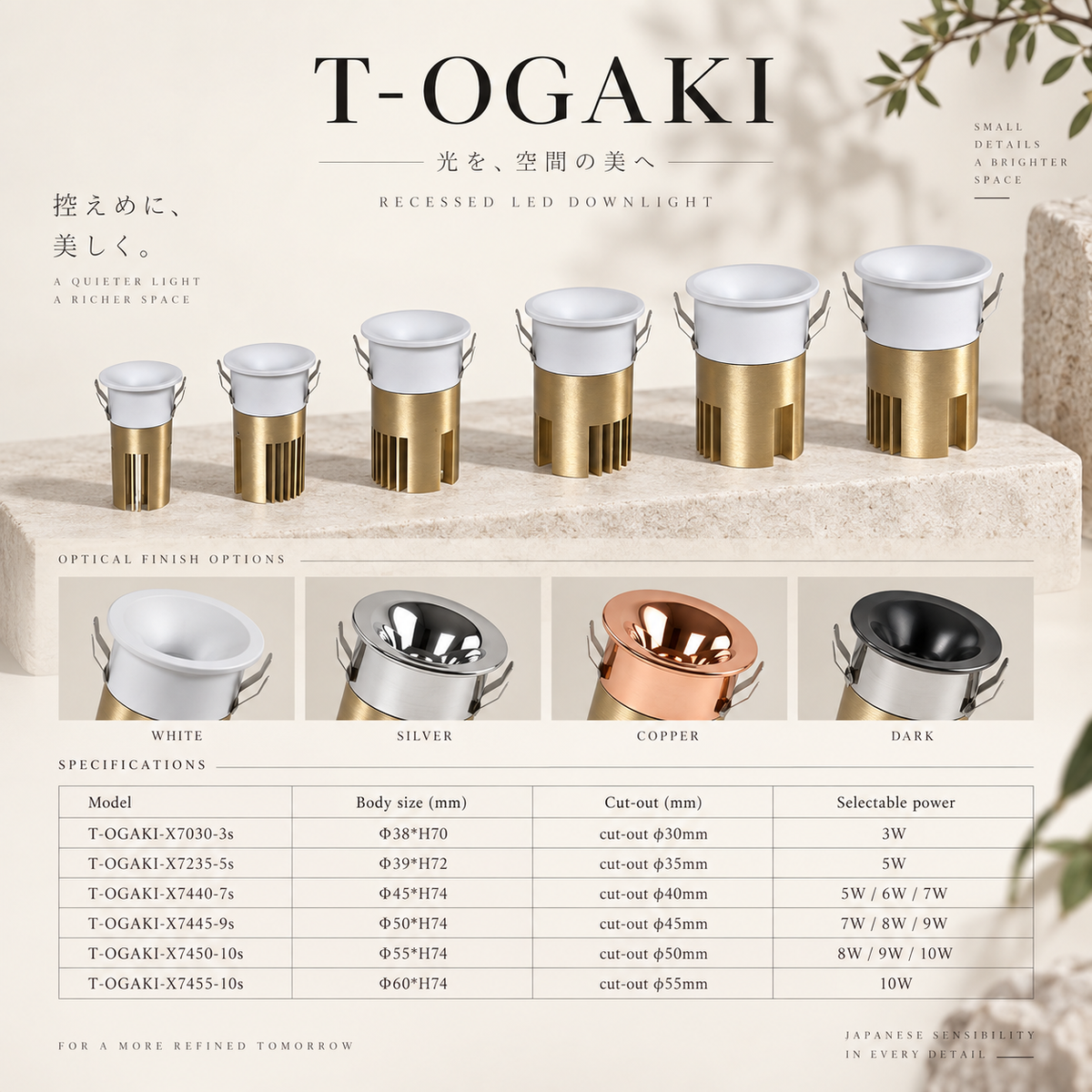

| Model remark | Body size | Cut-out | Selectable wattage |
|---|---|---|---|
| T-OGAKI-X7030-3s | Ø38 × H70 mm | φ30mm | 3W |
| T-OGAKI-X7235-5s | Ø39 × H72 mm | φ35mm | 5W |
| T-OGAKI-X7440-7s | Ø45 × H74 mm | φ40mm | 5W / 6W / 7W |
| T-OGAKI-X7445-9s | Ø50 × H74 mm | φ45mm | 7W / 8W / 9W |
| T-OGAKI-X7450-10s | Ø55 × H74 mm | φ50mm | 8W / 9W / 10W |
| T-OGAKI-X7455-10s | Ø60 × H74 mm | φ55mm | 10W |
Plan the lighting effect
3500K gives a gently warm atmosphere; 4000K creates a more neutral appearance. A narrower beam concentrates the accent on a smaller area, while a wider beam spreads it across more of the surface. Coordinate mounting height, spacing and aiming with the intended display or room.
Installation planning

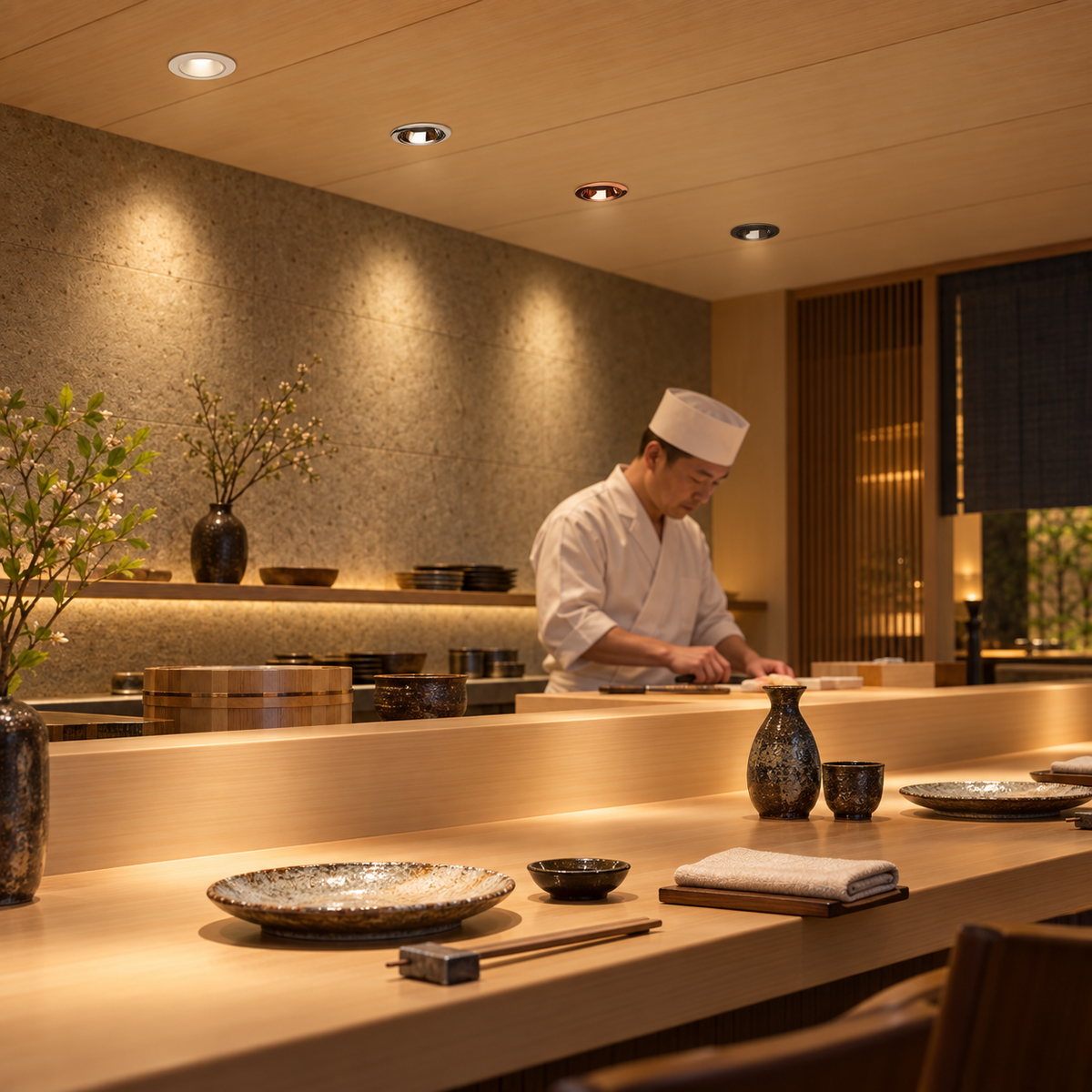

Match the ceiling opening to the selected cut-out. Allow clearance for the rear housing and electrical installation, with mounting springs concealed behind the finished surface. Product scene images illustrate an example arrangement. Share your room dimensions and intended application with KOYAMA for project advice.
Lead time: 15 days.
