TOYOHASHI Surface Downlight | IP65
TOYOHASHI Surface Downlight | IP65
Couldn't load pickup availability
TOYOHASHI Surface Downlight | IP65

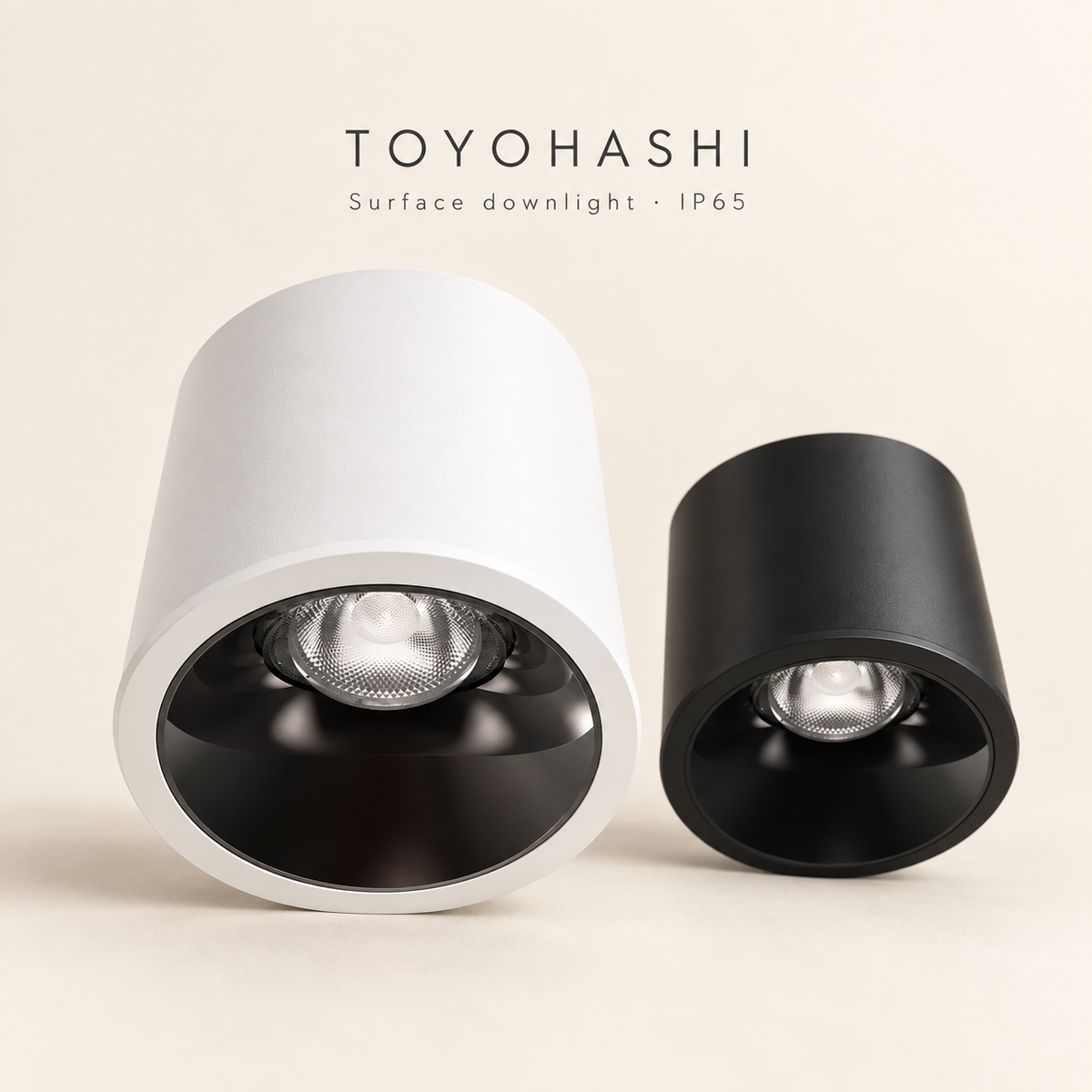

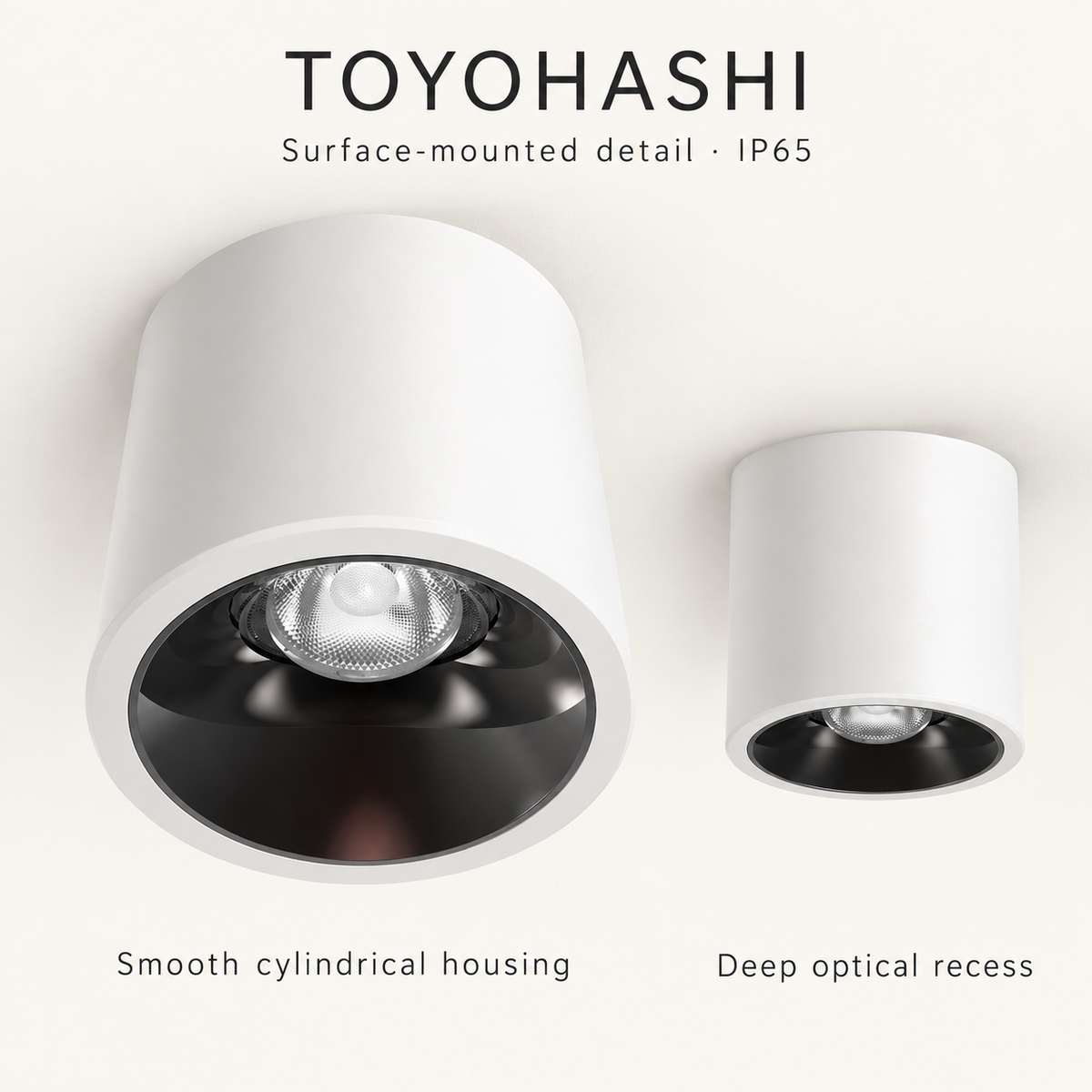

A surface-mounted IP65 downlight with a smooth cylindrical body and a deeply recessed optic. White and black finishes offer a choice for different ceiling palettes. The complete cylinder remains visible below the ceiling, making it an option where a recessed housing is not desired.
Select your specification
Choose the body size and wattage, finish, then light colour and beam angle. Each wattage is an individual order option. The model remark identifies the catalogue specification.

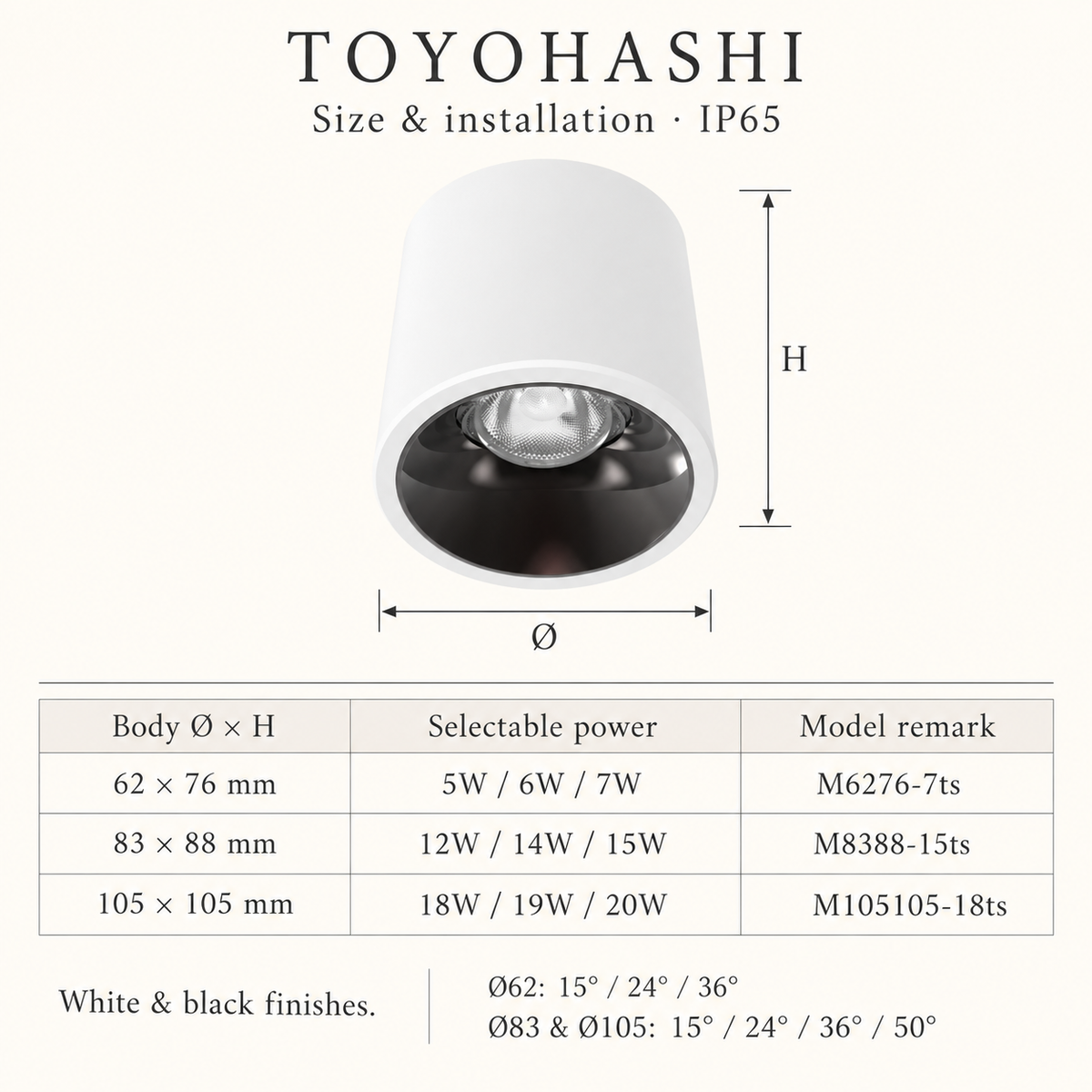

| Model remark | Body size | Mounting | Selectable wattage | Beam options |
|---|---|---|---|---|
| M6276-7ts | Ø62 × H76 mm | Surface mounted | 5W / 6W / 7W | 15° / 24° / 36° |
| M8388-15ts | Ø83 × H88 mm | Surface mounted | 12W / 14W / 15W | 15° / 24° / 36° / 50° |
| M105105-18ts | Ø105 × H105 mm | Surface mounted | 18W / 19W / 20W | 15° / 24° / 36° / 50° |
Shape the lighting effect
Choose a narrower beam to concentrate light on a selected surface, or a wider beam for broader coverage. The available beam angles depend on the selected body size. 3500K gives a gently warm atmosphere; 4000K offers a more neutral appearance. Other light colours from 2700K to 6000K are available in the options.
Installation planning

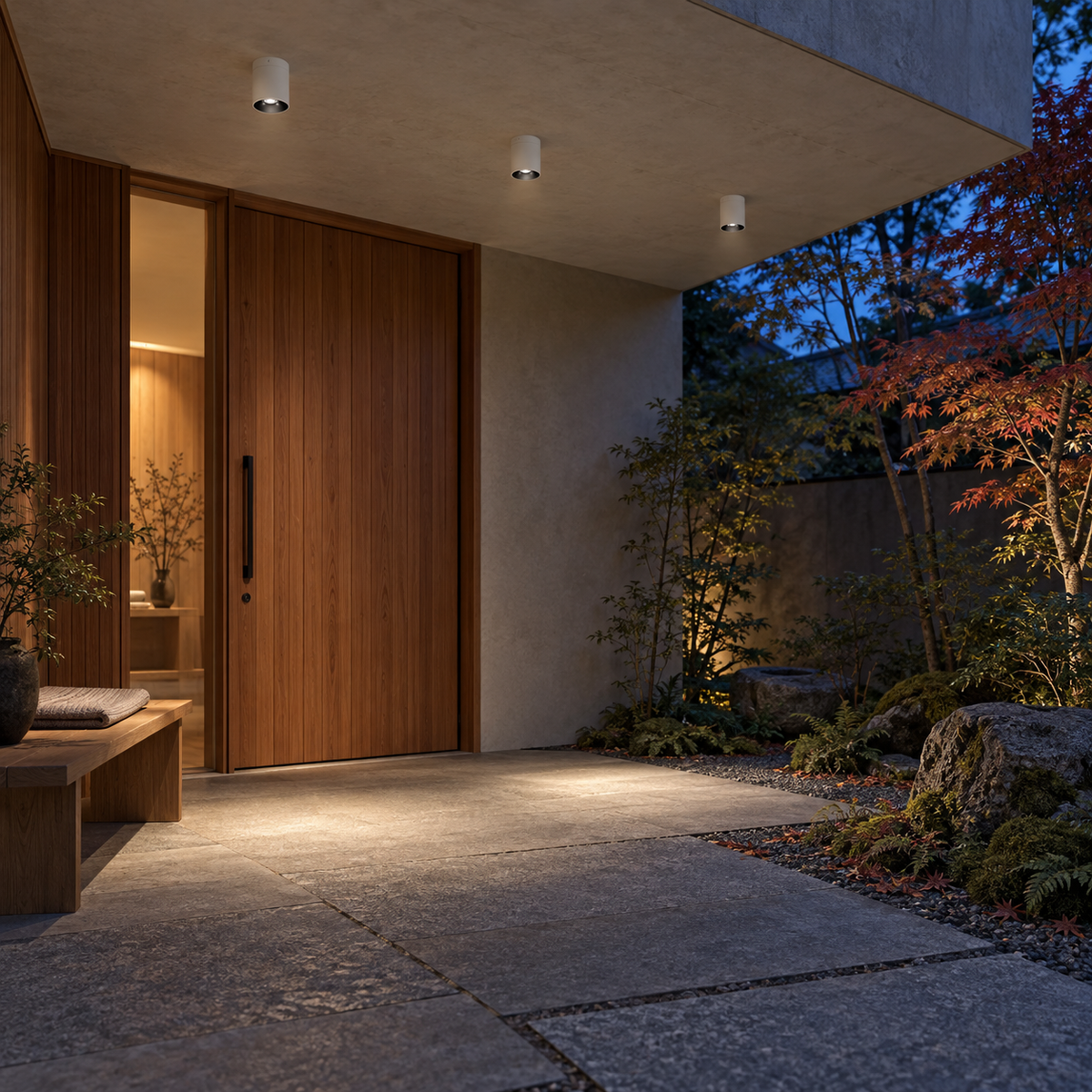

Fix the surface-mounted housing to a suitable ceiling substrate and coordinate the electrical connection before installation. The listed dimensions describe the visible cylinder. The catalogue specifies IP65 for this series. Confirm the complete installation arrangement and site suitability with your installer. Scene images illustrate an example layout.
Lead time: 15 days.
Shipping & Returns
Shipping & Returns
Please refer to this product’s description for lead time and availability. Contact us if you need a specific delivery date.
We do not accept change-of-mind or incorrect-selection returns. Please report damaged, defective or incorrect items within 14 days of delivery; statutory rights remain unaffected.
Contact: info@koyama.store | WhatsApp +65 8965 2378.
Read our full Returns & Exchanges policy
Dimensions
Dimensions
Dimensions vary by model and selected option. Refer to the model specifications and dimension drawings in this product’s description and images, matching them to your selected option. Body size and ceiling cut-out are different measurements. Confirm fitting dimensions, mounting method and installation clearance with your installer before installation. If a required measurement is missing, contact KOYAMA before ordering or cutting the ceiling.
Care Instructions
Care Instructions
Switch off the power and allow the fitting to cool before cleaning. Gently remove dust with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents, spray liquids onto the fitting, or allow moisture into electrical components. Do not dismantle drivers, controls or sealed parts. Follow the product’s installation instructions; electrical servicing should be carried out by a qualified installer.
